How To-Install Fox Body Smog Pump ***Lots Of Pics***

Discussion in '1994 - 1995 Specific Tech' started by davis3, Apr 20, 2009.


  1. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,324
    Likes Received:
    48
    Trophy Points:
    49
    Location:
    CA
    ok,my smog pump was making so much noise that people were asking me if my engine was on its way out:nonono:
    i checked autozone.
    they wanted $129+ tax for a 94-95 mustang gt pump :eek: (Cardone #32-292)
    the fox body pump was only $79+ tax:) (Cardone #32-291)

    there is no differance between the two except for the air discharge location (more on that later)but it fit with no problem:nice:

    ****things needed****
    1-fox body smog pump,Cardone #32-291.
    1-used fox body Smog Pump discharge elbow.(junk yard,under $2.any 93 and earlier 5.0 Mustang i think.)
    1-jack
    2-jack stands
    1-3/8 drive ratchet
    1-short 3/8 drive extension
    1-3/8 drive,1/2 deep socket
    1-3/8 drive,1/2 socket
    1-3/8 drive small breaker bar w/small extension.(for belt tensioner)
    1-slotted screwdriver
    1-5/16 wrench
    1-1/4 ratchet
    1-10mm,1/4 drive socket

    Removal

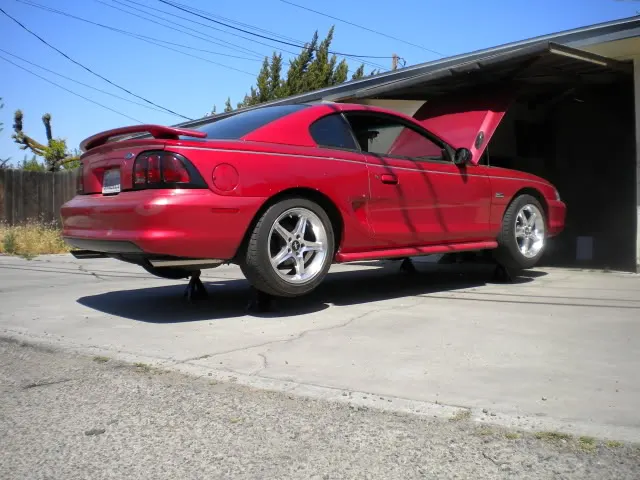

    1.raise front end of car(i was doing something in addition to the pump,thats why its totally off the ground),set on jack stands.
    [​IMG]

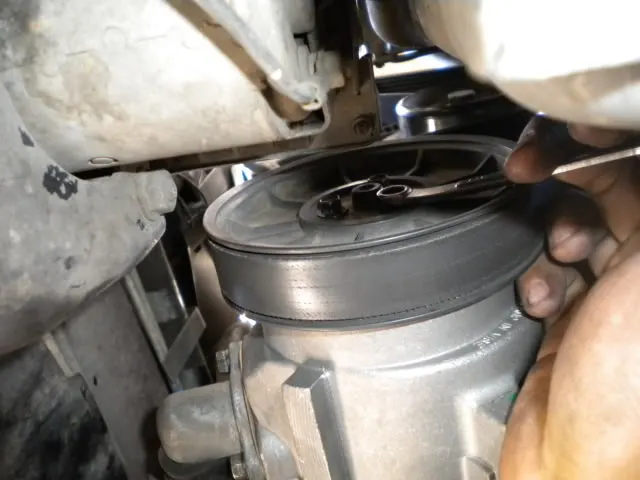

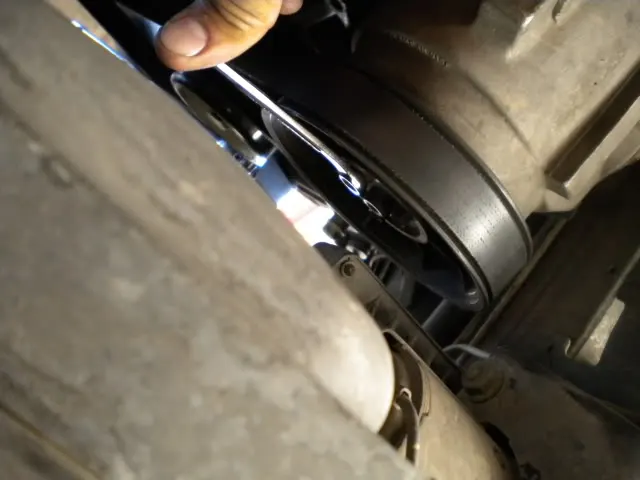

    2.before removing belt,from under car,loosen three 5/16 Smog Pump(SP) pulley bolts.do not remove yet!
    [​IMG]

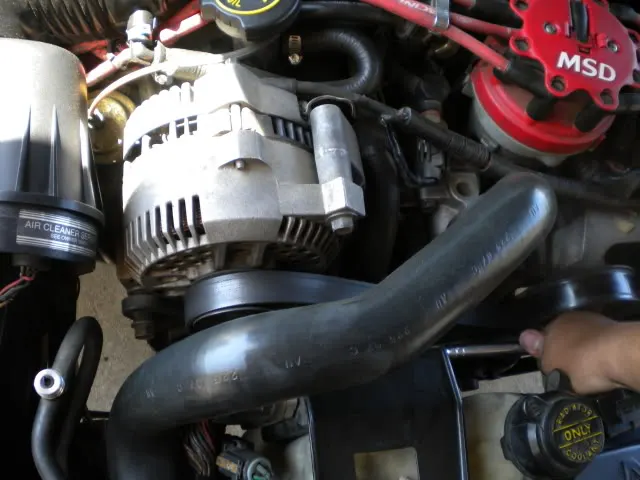

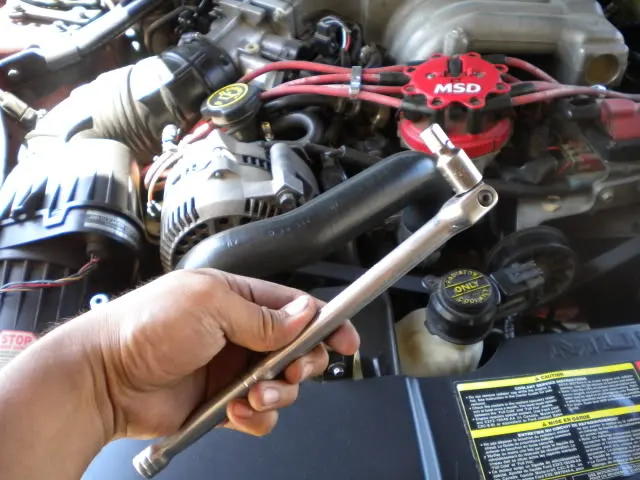

    3.place small breaker bar w/ tiny extension into belt tensioner.
    [​IMG]
    [​IMG]

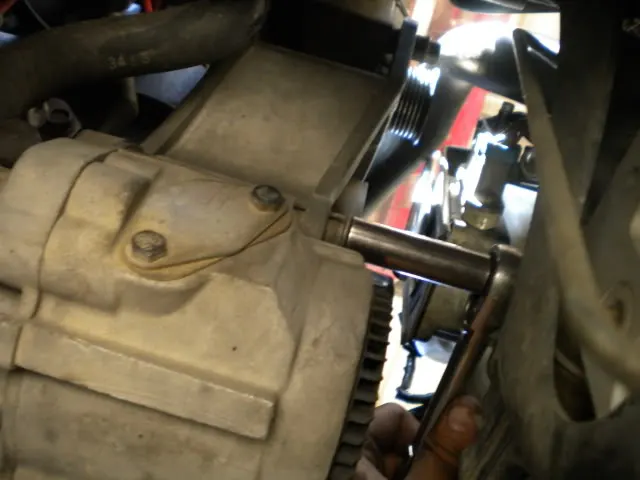

    4.push to the right to release tension on the belt.
    [​IMG]

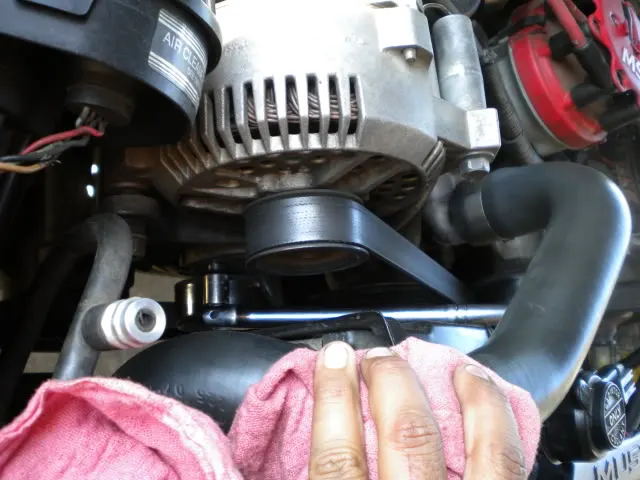

    5.while holding breaker bar down,with your free hand,take belt off Alt pulley.SLOWLY allow the breaker bar to move to the left til it stops.
    [​IMG]

    Under Car.

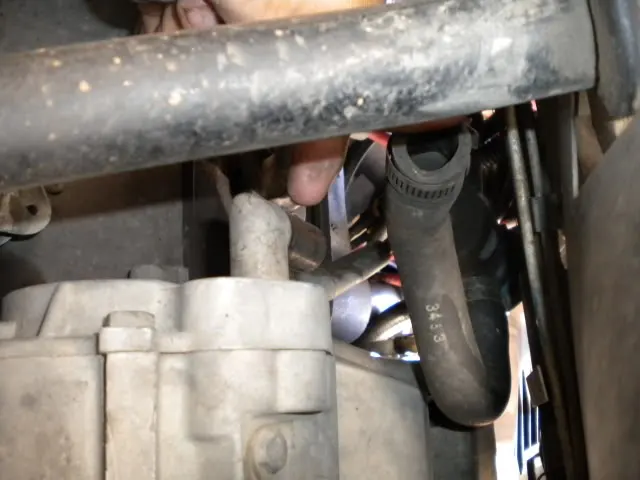

    6.with slotted screwdriver,loosen hose clamp and remove hose from discharge tube.
    [​IMG]
    [​IMG]

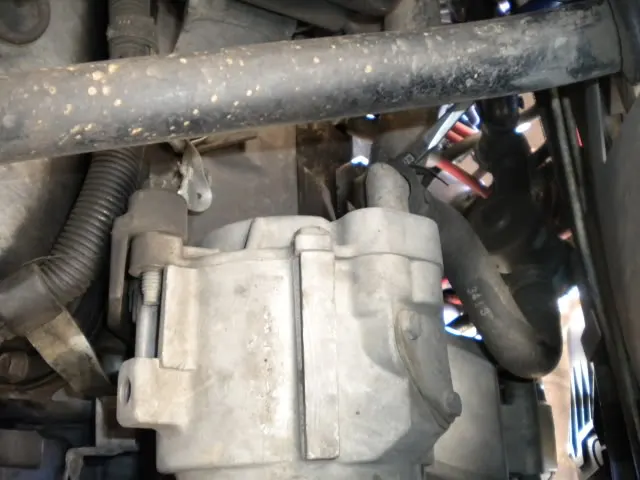

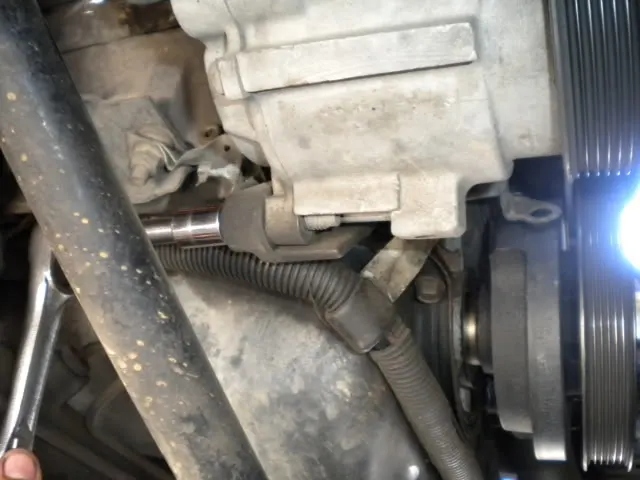

    7.with your 1/2 socket and small extension,loosen but dont remove lower bolt holding SP to the bracket.
    [​IMG]

    8.now remove the Three 5/16 bolts holding the SP pulley to the SP,set pulley and bolts aside.
    [​IMG]

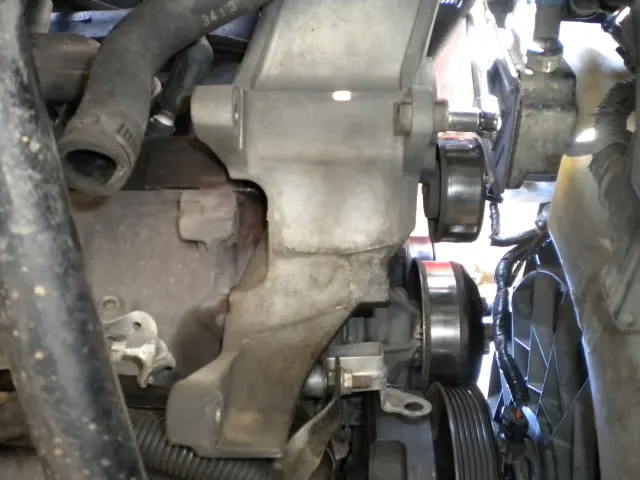

    9.with your 1/2 deep socket,loosen and remove the long upper bolt.
    [​IMG]

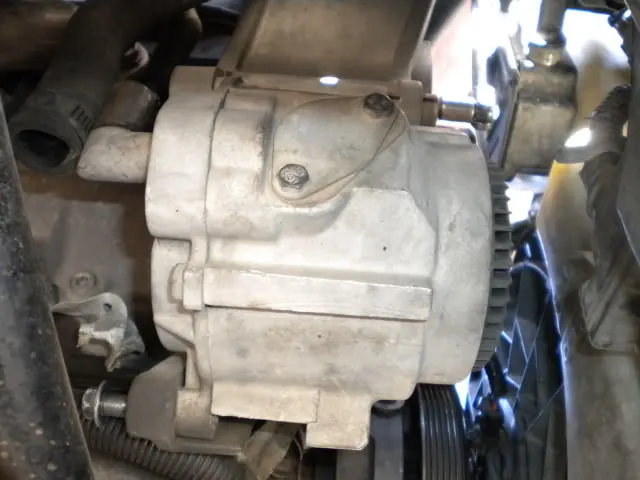

    10.with one hand holding the SP,remove the lower bolt.remove the SP from the car.(dont drop it on your head:))
    [​IMG]
    [​IMG]

    Install.

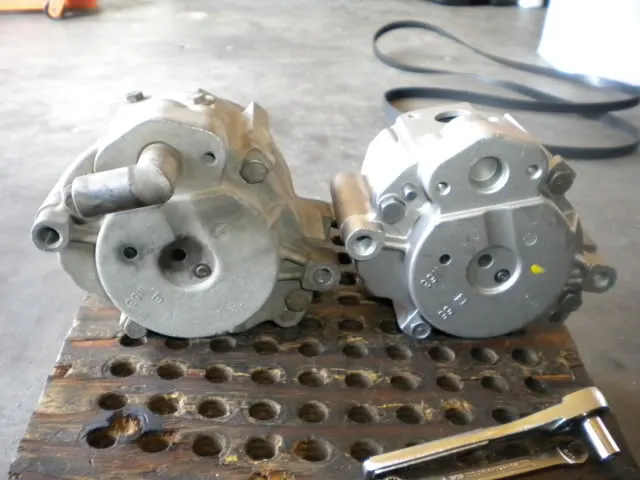

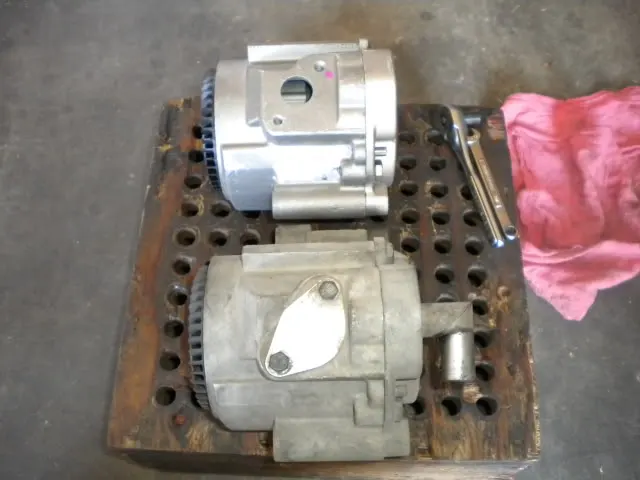

    11.here are the two pumps side by side.the one on the top is the fox body pump,the bottom is the 94-95 pump.
    [​IMG]
    the only differance is the location of the discharge tube.
    the 94-95 pump has it pressed into the rear cover.
    [​IMG]

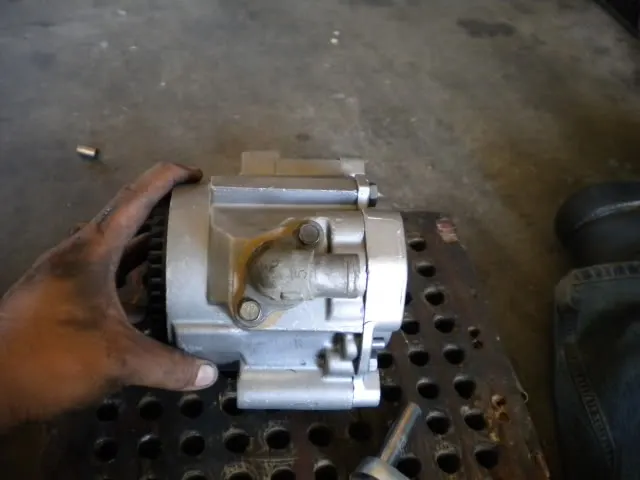

    the fox body pump uses a detachable elbow.i found this one at the JY for $1.50.
    i assume any 93 and earlier 5.0 mustang would have these.
    [​IMG]

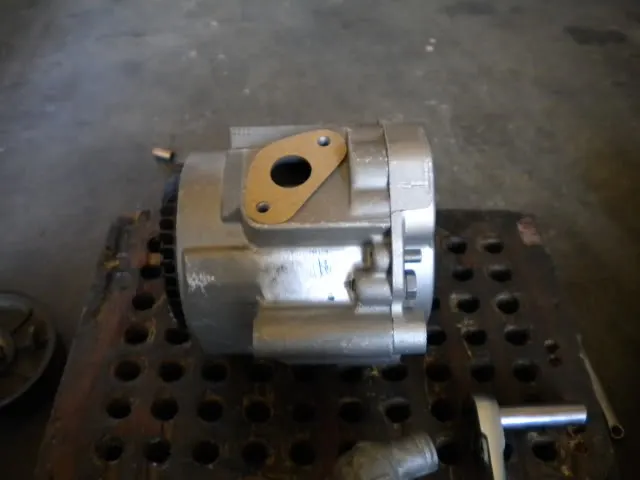

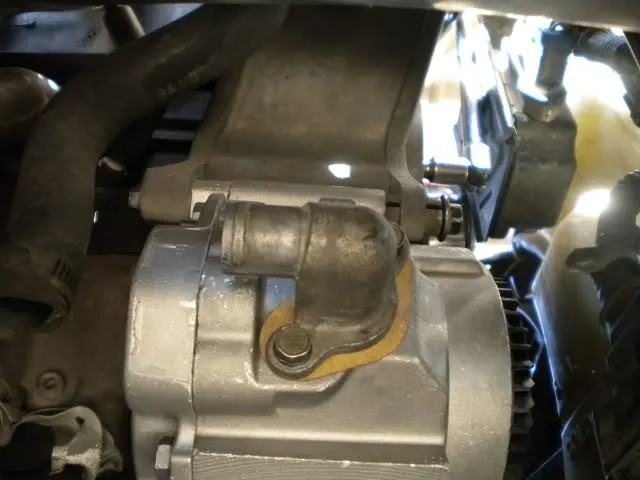

    12.install discharge elbow onto fox body pump.
    the new pump will come with new bolts and gasket.
    set gasket down,place the elbow on it facing the rear of the pump.
    with your 10mm socket,tighten the two bolts.(dont over tighten)
    [​IMG]
    [​IMG]

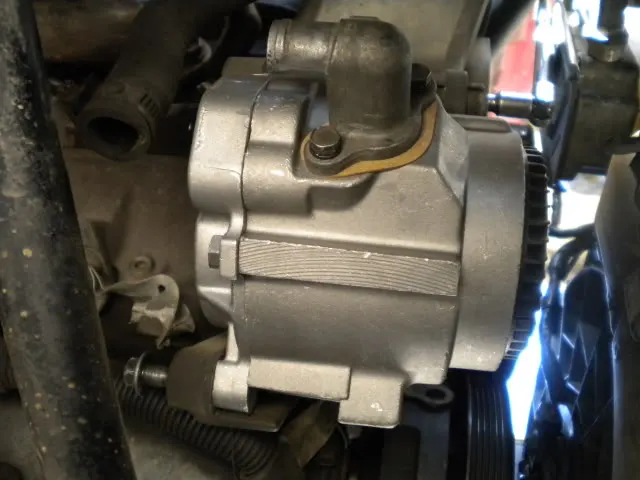

    13.wiggle SP into the upper mount,hand install (be sure not to cross thread the bolt)long upper bolt,leave loose.
    [​IMG]

    14.install lower bolt,hand tighten(do not cross thread)
    with your 1/2 socket,tighten both upper and lower bolts.
    [​IMG]

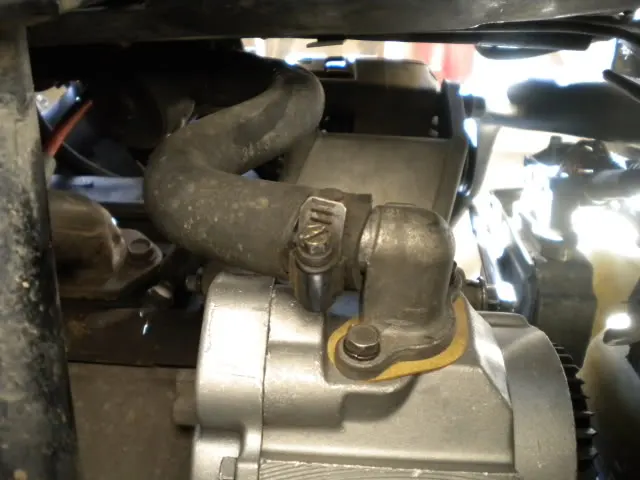

    15.put your rubber hose on the discharge tube(it has more than enough slack)
    with your slotted screwdriver,tighten hose clamp.
    [​IMG]

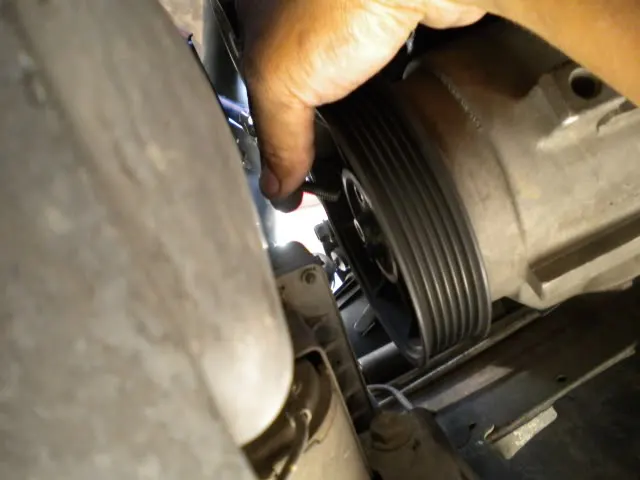

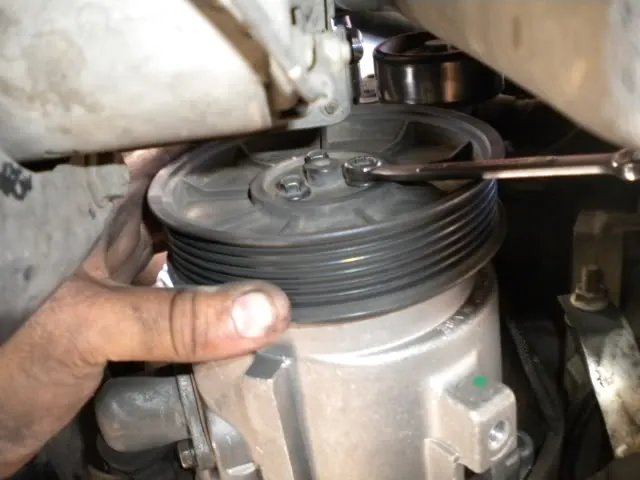

    16.attach SP pulley,hand install Three 5/16 bolts.
    [​IMG]

    17.holding the pulley with one hand,use your 5/16 wrench to tighten the Three bolts.
    [​IMG]

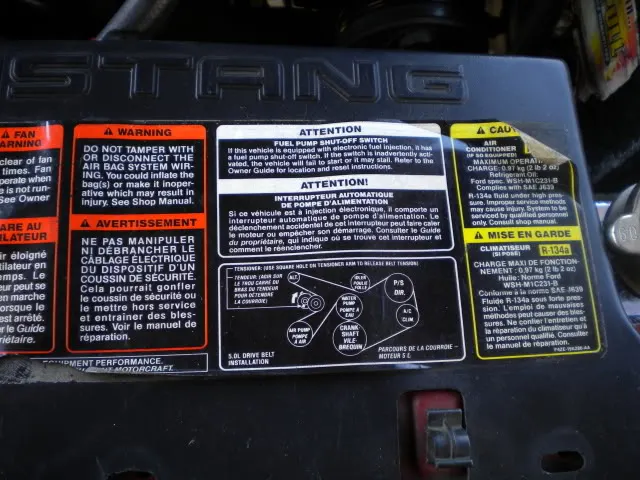

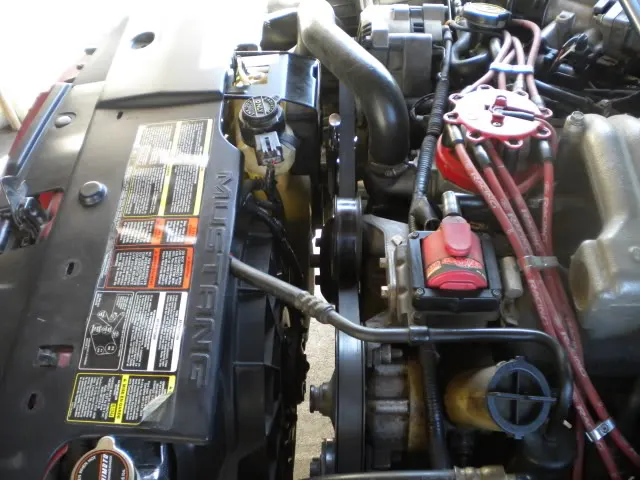

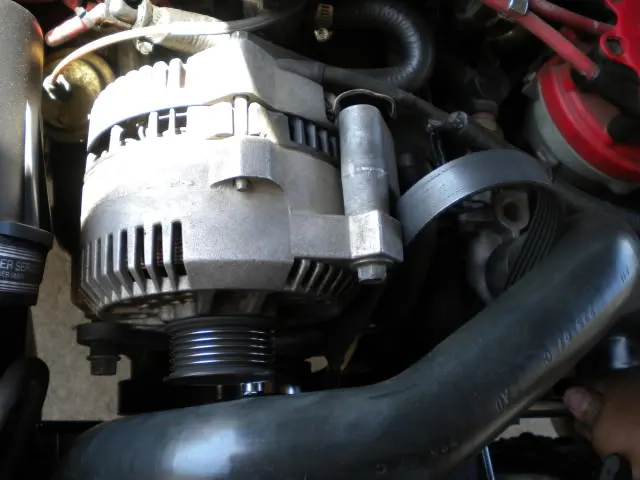

    18.i hope you remembered your belt routing,if not,here you go.
    [​IMG]

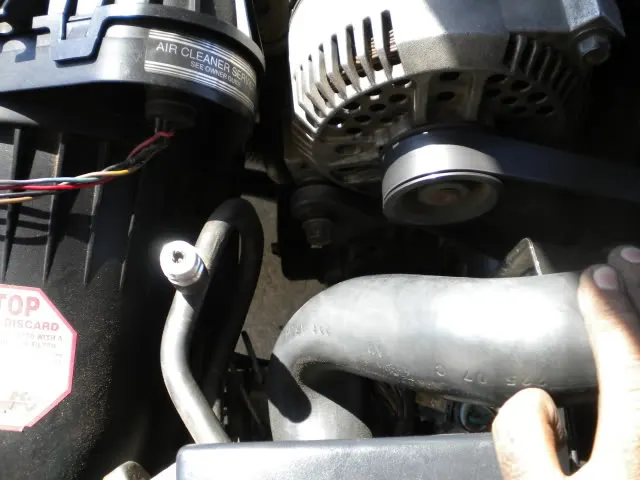

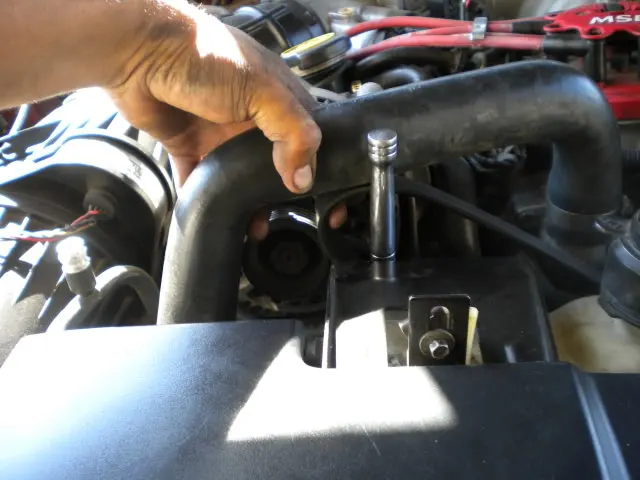

    19.with your belt properly routed,hold the belt with one hand.with the other,push breaker bar to the right,slip the belt over the Alt pulley,release bar.
    [​IMG]

    20.check to make sure the belt is properly seated,and the pulley's are all lined up.
    [​IMG]

    21.not done yet!

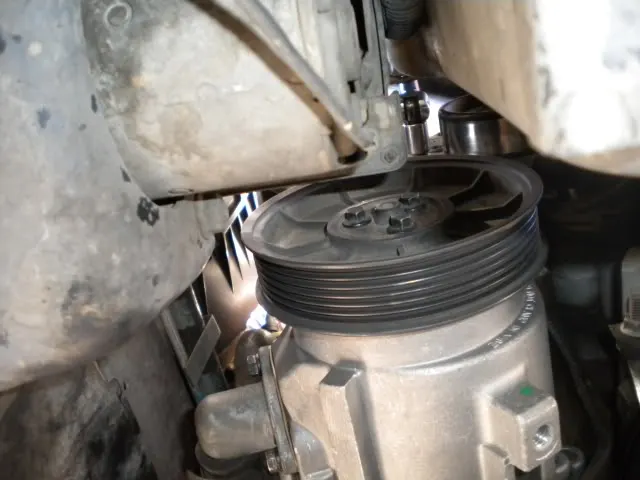

    get back under the car and re-tighten the Three 5/16 bolts attaching the SP pulley.
    [​IMG]

    22.this picture's kinda dark,but you can see the fox body pump has no clearence issues at all.
    [​IMG]

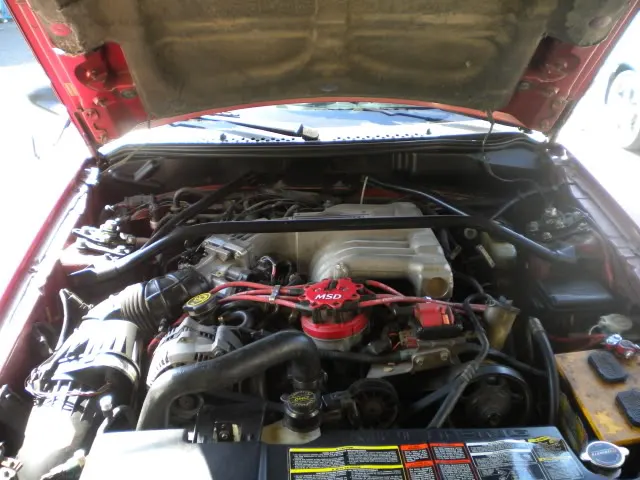

    23.set the car back on the ground,all done!
    now you can enjoy hearing the power of your 5.0,and not the Squeak-Squeak of a bad Smog Pump.
    [​IMG]
    #1
  2. 02 281 GT

    02 281 GT Active Member

    Joined:
    Feb 3, 2009
    Messages:
    394
    Likes Received:
    25
    Trophy Points:
    39
    Location:
    Kusel, Germany
    Good write-up! Always good to save $50. :nice:
    #2
  3. HISSIN50

    HISSIN50 "How long does it take to get help in here? SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,148
    Likes Received:
    13
    Trophy Points:
    79
    Nicely done.

    Which pulley did you use?
    #3
  4. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,324
    Likes Received:
    48
    Trophy Points:
    49
    Location:
    CA
    thanks.

    i reused the pulley from my car.

    Posted via Mobile Device
    #4
  5. desertcox05

    desertcox05 New Member

    Joined:
    Oct 3, 2007
    Messages:
    381
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    south atlanta
    outstanding job and saving 50 bucks is good too
    #5
  6. KamiKaziDK

    KamiKaziDK Member

    Joined:
    May 16, 2005
    Messages:
    632
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Mesa, Az
    sweet write up!
    #6
  7. 88stang88

    88stang88 Active Member

    Joined:
    Apr 28, 2005
    Messages:
    519
    Showcase:
    1
    Albums:
    1
    Likes Received:
    7
    Trophy Points:
    29
    Location:
    St. Louis,MO
    hey thanks for the post to this in my thread...great write up!
    #7
  8. revhead347

    revhead347 I have face herpes.

    Joined:
    Jun 14, 2004
    Messages:
    6,592
    Likes Received:
    282
    Trophy Points:
    124
    Location:
    Acworth, GA
    Damn, sorry you went through all that trouble. I just dropped off a smog pump at the recycling yard today. If I knew you needed it, I would have shipped it to you.

    Kurt
    #8
  9. 88stang88

    88stang88 Active Member

    Joined:
    Apr 28, 2005
    Messages:
    519
    Showcase:
    1
    Albums:
    1
    Likes Received:
    7
    Trophy Points:
    29
    Location:
    St. Louis,MO
    he did this back in April...im getting ready to take mine off tomorrow and i asked if anyone had done one and he refered me back here...just gave him props on the write up and it made it current...sorry for the confusion kurt...btw anyone need a 94-95 5.0 smog pump?
    #9
  10. SableSal

    SableSal Member

    Joined:
    Sep 17, 2009
    Messages:
    294
    Likes Received:
    2
    Trophy Points:
    19
    Location:
    Fresno, Californ-I-A
    Harvey, good write up man! Just rolling threw here and noticed it was revived from the dead. LOL

    I think I might bypass mine with a smaller belt when it comes time to change it. I JUST CHANGED IT TOO! LOL!
    #10
  11. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,324
    Likes Received:
    48
    Trophy Points:
    49
    Location:
    CA
    thanks.
    i just got home from battling that oil pressure gauge install:mad:
    what a pain.
    #11
  12. davis3

    davis3 Active Member

    Joined:
    May 7, 2006
    Messages:
    1,324
    Likes Received:
    48
    Trophy Points:
    49
    Location:
    CA

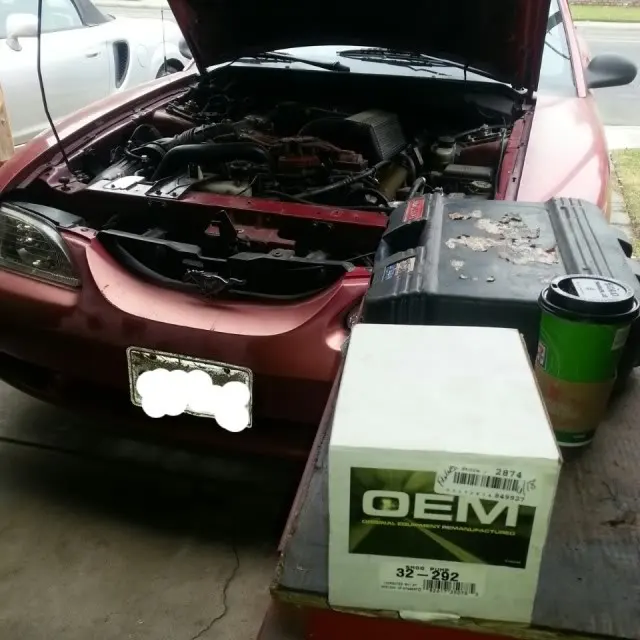

    Well, time to install a new one!
