No Maf Signal

Discussion in 'Fox 5.0 Mustang Tech' started by 306N/A, Aug 18, 2013.


  1. 306N/A

    306N/A Member

    Joined:
    May 2, 2013
    Messages:
    95
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Ontario
    Did a 87 to 89 mass air swap. changed the full engine harness and computer to a 89. now i shot the codes and it says no maf signal ?? do i have to re tap some wires in the 89 harness ?? i just did a plug and go..
    #1
  2. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,698
    Likes Received:
    372
    Trophy Points:
    134
    Location:
    Dublin GA
    The MAF conversion require moving some wires around.

    MASS air conversion instructions from http://www.stangnet.com/tech/maf/massairconversion.html this is a FREE Download

    A9L (5 Speed) computer from junkyard $100-$150
    A9P (Auto or in a pinch, it will work in a 5 Speed car) computer from junkyard $100-$150
    70MM MAF from 94-95 Mustang GT - $40-$70
    MASS Air wiring harness kit $30-$85

    The whole thing is probably less than $300 using junkyard parts.

    A9L computers are 5 speed only
    A9P computers are automatic, but will work with a 5 speed.

    The conversion harness seems to work well for most folks. It avoids the compatibility problems in using a harness from the junkyard. Simple and cheap, actually less work that swapping the wiring harness.
    Conversion Harness kits & parts
    http://www.mass-air.com/
    http://oldfuelinjection.com/index.php?p=54
    Also see www.forfuelinjection.com for help with the harness parts http://rjminjectiontech.com/?p=10, and connector pins, http://rjminjectiontech.com/?p=11


    If the idea of moving & soldering wires scares you, here's a list of compatible Mass Air wiring harnesses.

    Copied from bbunt302
    Just for reference, here's a list of all the compatible years:

    89 harness should work for 86-89 as long as you're using mass air.
    90 harness will only work in a 90. (B/c of air bags and dual dash connectors)
    91 through early 92 harnesses should be compatible (single dash connector, fuel pump relay under driver's seat)
    Late 92 through 93 harnesses should be compatible (single dash connector, fuel pump relay under the hood)

    Larger MAF to go with Mass Air conversion:
    94-95 Mustang GT MAF - $40-$100. It is 70 MM instead of the stock 55 MM on regular stangs built prior to 94. It uses a slip on duct on the side that goes to the throttle body and a 4 bolt flange on the other. You need a flange adapter to fit the stock slip on air ducting that goes to the air box. Wiring plugs right in with no changes. *1 *2

    *1.) Metal flange adapter http://www.kustomz.com/cat3.html Buy the TR70 for $40-$45 depending on if it’s on sale or not. Or spend some time on eBay looking for one that may fit.
    Try AutoZone and ask for 81413 - Spectre / 3 in. Aluminum Intake Mass Air Flow Sensor Adapter at $12.00. You may have to order it online.

    *2.) MAF & sensor interchange
    The 94-95 Mustang 5.0 MAF & sensor is also found on:
    1995-94 Mustang 3.8L F2VF-12B579-A2A,
    1994-92 Crown Victoria 4.6L F2VF-12B579-A2A,
    1995-94 Mustang, Mustang Cobra 5.0L F2VF-12B579-A2A,
    1994-92 Town Car 4.6L F2VF-12B579-A2A,
    1994-92 Grand Marquis 4.6L F2VF-12B579-A2A,
    Evidently the –A1A, -A2A, AA, etc. on the end of the part number is a minor variant that did not change the operating specs. You should be able to ignore it and have everything work good.[/b]
    #2
  3. 306N/A

    306N/A Member

    Joined:
    May 2, 2013
    Messages:
    95
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Ontario
    The 89 harness is a maf harness. insted of using the 87 harness n retaping the maf in, cant i just move some pins around in the 89 harness ??

    Has anyone used a 89 harnes and computer on a 87 car ? Why is it not reading the maf sensor?
    Last edited: Aug 19, 2013
    #3
  4. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,698
    Likes Received:
    372
    Trophy Points:
    134
    Location:
    Dublin GA
    What codes did you get when you dumped them?

    With an 89 main computer harness, you do not move anything. On an 87-88 5.0 Mustang it is install the 89 main computer harness, connect everything up and you are good to go. The engine mounted fuel injector harness is the same from 86-93 on 5.0 Fox Mustangs.

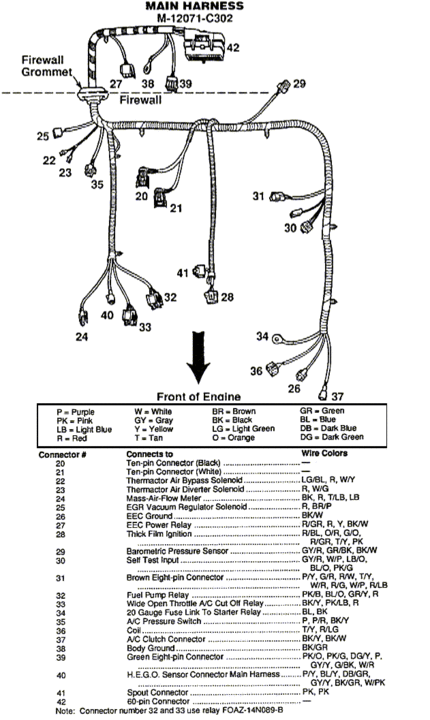

    The main computer harness is shown in the diagram below.
    Diagram courtesy of Tmoss & Stang&2birds

    [​IMG]


    See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

    Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

    Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

    Ignition switch wiring
    http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

    Fuel, alternator, A/C and ignition wiring
    http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif


    Vacuum diagram 89-93 Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

    HVAC vacuum diagram
    http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

    TFI module differences & pin out
    http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

    Fuse box layout
    http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

    87-92 power window wiring
    http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

    93 power window wiring
    http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif
    Last edited: Aug 19, 2013
    #4
  5. 306N/A

    306N/A Member

    Joined:
    May 2, 2013
    Messages:
    95
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Ontario
    Codes are.. 67 87 10 66 95
    #5
  6. 306N/A

    306N/A Member

    Joined:
    May 2, 2013
    Messages:
    95
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Ontario
    I bypassed the fuel relay under the seat cause it wouldnt work with the 89 harness
    #6
  7. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,698
    Likes Received:
    372
    Trophy Points:
    134
    Location:
    Dublin GA
    I hope you can read electrical diagrams and understand electrical theory, because all of the codes are due to electrical problems of one sort or another.

    The 89 main wiring harness should plug in and play without having to bypass the fuel pump relay. With that in mind, we are going chase that rabbit first.

    Fuel Pump Troubleshooting for 87-90 Mustangs

    Revised 10-Aug-2012 to update fuel pump run time on initial startup

    Clue – listen for the fuel pump to prime when you first turn the ignition switch on. It should run for 1-3 seconds and shut off. To trick the fuel pump into running, find the ECC test connector and jump the connector in the upper LH corner to ground.

    [​IMG]

    [​IMG]

    [​IMG]

    If the fuse links are OK, you will have power to the pump. Check fuel pressure – remove the cap from the Schrader valve behind the alternator and depress the core. Fuel should squirt out, catch it in a rag. A tire pressure gauge can also be used if you have one - look for 37-40 PSI. Beware of fire hazard when you do this.

    No fuel pressure, possible failed items in order of their probability:
    A.) Tripped inertia switch – press reset button on the inertia switch. The hatch cars hide it under the plastic trim covering the driver's side taillight. Use the voltmeter or test light to make sure you have power to both sides of the switch

    B.) Fuel pump power relay – located under the driver’s seat in most Mustangs built before 92. It is located under the MAF on 92 and 93 cars. Be careful not to confuse it with the A/C WOT cutoff relay which is in the same area. See the diagram to help identify the fuel pump relay wiring colors. Be sure to closely check the condition of the relay, wiring & socket for corrosion and damage.
    C.) Clogged fuel filter
    D.) Failed fuel pump
    E.) Blown fuse link in wiring harness.
    F.) Fuel pressure regulator failed. Remove vacuum line from regulator and inspect
    for fuel escaping while pump is running.

    The electrical circuit for the fuel pump has two paths, a control path and a power
    path.

    The control path consists of the inertia switch, the computer, and the fuel pump relay coil. It turns the fuel pump relay on or off under computer control. The switched power (red wire) from the ECC relay goes to the inertia switch (red/black wire) then from the inertia switch to the relay coil and then from the relay coil to the computer (tan/ Lt green wire). The computer provides the ground path to complete the circuit. This ground causes the relay coil to energize and close the contacts for the power path. Keep in mind that you can have voltage to all the right places, but the computer must provide a ground. If there is no ground, the relay will not close the power contacts.

    The power path picks up from a fuse link near the starter relay. Fuse links are like fuses, except they are pieces of wire and are made right into the wiring harness. The feed wire from the fuse link (orange/ light blue wire) goes to the fuel pump relay contacts. When the contacts close because the relay energizes, the power flows through the contacts to the fuel pump (light pink/black wire). Notice that pin 19 on the computer is the monitor to make sure the pump has power. The fuel pump has a black wire that supplies the ground to complete the circuit.

    Remember that the computer does not source any power to actuators, relays or injectors, but provides the ground necessary to complete the circuit. That means one side of the circuit will always be hot, and the other side will go to ground or below 1 volt as the computer switches on that circuit.

    [​IMG]

    Now that you have the theory of how it works, it’s time to go digging.

    All voltage reading are made with one voltmeter lead connected to the metal car body unless otherwise specified

    Check for 12 volts at the red wire on the inertia switch. No 12 volts at the inertia switch, the ignition switch is turned off or faulty or there is no power to the ECC (computer ) power relay. To be sure look for good 12 volts on the red wire on any fuel injector:
    good 12 volts mean the ECC relay is working. No 12 volts and the ECC wiring is at fault.
    Look for 12 volts on the red/green wire on the ignition coil: no 12 volts and the ignition switch is faulty, or the fuse link in the ignition power wire has blown. No 12 volts here and the ECC relay won’t close and provide power to the inertia switch. Check the Red/black wire on the inertia switch, it should have 12 volts. No 12 volts there, either the inertia switch is open or has no power to it. Check both sides of the inertia switch: there should be power on the Red wire and Red/Black wire. Power on the Red wire and not on the Red/Black wire means the inertia switch is open. Push the button on the side of it to reset it, and then recheck. Good 12 volts on one side and not on the other means the inertia switch has failed.

    Look for 12 volts at the Orange/Lt. Blue wire (power source for fuel pump relay). No voltage or low voltage, bad fuse link, bad wiring, bad ignition switch or ignition switch wiring or connections. There is a mystery connector somewhere under the driver’s side kick panel, between the fuel pump relay and the fuse link.

    Turn on the key and jumper the fuel pump test connector to ground as previously described. Look for 12 volts at the Light Pink/Black wire (relay controlled power for the fuel pump). No voltage there means that the relay has failed, or there is a broken wire in the relay control circuit.

    Pump wiring: Anytime the ignition switch is in the Run position and the test point is jumpered to ground, there should be at least 12 volts present on the black/pink wire. With power off, check the pump ground: you should see less than 1 ohm between the black wire and chassis ground.

    [​IMG]

    The yellow wire is the fuel tank sender to the fuel quantity gage. The two black wires are grounds. One ground is for the fuel tank sender and the other is the fuel pump. The ground for the fuel pump may be larger gauge wire that the fuel tank sender ground wire.

    Make sure that the power is off the circuit before making any resistance checks. If the circuit is powered up, your resistance measurements will be inaccurate.

    You should see less than 1 Ohm between the black wire(s) and ground. To get some idea of what a good reading is, short the two meter leads together and observe the reading. It should only be slightly higher when you measure the black wire to ground resistance.

    The Tan/Lt Green wire provides a ground path for the relay power. With the test connector jumpered to ground, there should be less than .75 volts. Use a test lamp with one side connected to battery power and the other side to the Tan/Lt Green wire. The test light should glow brightly. No glow and you have a broken wire or bad connection between the test connector and the relay. To test the wiring from the computer, remove the passenger side kick panel and disconnect the computer connector. It has a 10 MM bolt that holds it in place. With the test lamp connected to power, jumper pin 22 to ground and the test lamp should glow. No glow and the wiring between the computer and the fuel pump relay is bad.

    Computer: If you got this far and everything else checked out good, the computer is suspect. Remove the test jumper from the ECC test connector located under the hood. Probe computer pin 22 with a safety pin and ground it to chassis. Make sure the computer and everything else is connected. Turn the ignition switch to the Run position and observe the fuel pressure. The pump should run at full pressure.
    If it doesn't, the wiring between pin 22 on the computer and the fuel pump relay is bad.
    If it does run at full pressure, the computer may have failed.

    Keep in mind that the computer only runs the fuel pump for about 2-3 seconds when you turn the key to the Run position. This can sometimes fool you into thinking the computer has died. Connect one lead of the test light to power and the other lead to computer pin 22 with a safety pin. With the ignition switch Off, jumper the computer into self test mode like you are going to dump the codes. Turn the ignition switch to the Run position. The light will flicker when the computer does the self test routine. A flickering light is a good computer. No flickering light is a bad computer.
    Remove the test jumper from the ECC test connector located under the hood.

    Fuel pump runs continuously: The fuel pump relay contacts are stuck together or the Tan/Lt Green wire has shorted to ground. In extreme ghetto cases, the pump relay may have been bypassed. Remove the fuel pump relay from its socket. Then disconnect the computer and use an ohmmeter to check out the resistance between the Tan/Lt Green wire and ground. You should see more than 10 K Ohms (10,000 ohms) or an infinite open circuit. Be sure that the test connector isn’t jumpered to ground.
    If the wiring checks out good, then the computer is the likely culprit.

    Prior to replacing the computer, check the computer power ground. The computer has its own dedicated power ground that comes off the ground pigtail on the battery ground wire. Due to it's proximity to the battery, it may become corroded by acid fumes from the battery. It is a black cylinder about 2 1/2" long by 1" diameter with a black/lt green wire. You'll find it up next to the starter solenoid where the wire goes into the wiring harness

    If all of the checks have worked OK to this point, then the computer is bad. The computers are very reliable and not prone to failure unless there has been significant electrical trauma to the car. Things like lightning strikes and putting the battery in backwards or connecting jumper cables backwards are about the only thing that kills the computer.

    See the following website for some help from Tmoss (diagram designer) &
    Stang&2Birds (website host)

    http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

    http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

    http://www.veryuseful.com/mustang/tech/engine/images/88-91eecPinout.gif





    DO NOT attempt to fix any of the codes until you have fixed the fuel pump problem. If you do, you will confuse yourself and end up wasting time and money.

    Code 67 –
    Revised 2 Nov 2012 to add definition of the NSS functions for both 5 speed and auto transmissions

    Cause of problem:
    clutch not depressed (5 speed) or car not in neutral or park (auto) or A/C in On position when codes where dumped. Possible neutral safety switch or wiring problem. This code may prevent you from running the Key On Engine On tests.

    External evidence from other sources claims that a code 67 can cause an idle surge condition. Do try to find and fix any issues with the switch and wiring if you get a code 67.

    What the NSS (Neutral Safety Switch) does:
    5 speed transmission: It has no connection with the starter, and the engine can be cranked without it being connected.
    Auto transmission: It is the safety interlock that prevents the starter from cranking the engine with the transmission in gear.
    What it does for both 5 speed and auto transmission cars:
    The computer wants to make sure the A/C is off due to the added load on the engine for the engine running computer diagnostic tests. It also checks to see that the transmission is in Neutral (5 speed and auto transmission) and the clutch depressed (T5, T56, Tremec 3550 & TKO)). This prevents the diagnostics from being run when the car is driven. Key On Engine Running test mode takes the throttle control away from the driver for several tests. This could prove hazardous if the computer was jumpered into test mode and then driven.

    The following is for 5 speed cars only.
    The NSS code 67 can be bypassed for testing. You will need to temporarily ground computer pin 30 to the chassis. Computer pin 30 uses a Lt blue/yellow wire. Remove the passenger side kick panel and then remove the plastic cover from the computer wiring connector. Use a safety pin to probe the connector from the rear. Jumper the safety pin to the ground near the computer.
    Be sure to remove the jumper BEFORE attempting to drive the car!!!


    Code 87 – fuel pump primary circuit failure. The fuel pump lost power while the engine was running. Check fuel pump relay, check inertia switch, wiring to/from inertia switch, red wire going to inertia switch for +12volts. Check the other side of inertia switch for +12 volts.

    Diagram of the fuel pump wiring for 86-90 cars
    [​IMG]

    Diagram of the fuel pump wiring for 91-93 cars.
    [​IMG]


    Code 66 MAF below minimum test voltage.

    Revised 1-Jun-2013 to add different wiring colors for 91-93 model cars and diagram of the backside of the computer wiring connector

    Insufficient or no voltage from MAF. Dirty MAF element, bad MAF, bad MAF wiring, missing power to MAF. Check for missing +12 volts on this circuit. Check the two links for a wiring diagram to help you find the red wire for computer power relay switched +12 volts. Check for 12 volts between the red and black wires on the MAF heater (usually pins A & B). while the connector is plugged into the MAF. This may require the use of a couple of safety pins to probe the MAF connector from the back side of it.

    [​IMG]

    88-90 Mass Air 5.0 Mustang computer wiring diagram
    [​IMG]

    There are three parts in a MAF: the heater, the sensor element and the amplifier. The heater heats the MAF sensor element causing the resistance to increase. The amplifier buffers the MAF output signal and has a resistor that is laser trimmed to provide an output range compatible with the computer's load tables. Changes in RPM causes the airflow to increase or decrease, changing the voltage output.. The increase of air across the MAF sensor element causes it to cool, allowing more voltage to pass and telling the computer to increase the fuel flow. A decrease in airflow causes the MAF sensor element to get warmer, decreasing the voltage and reducing the fuel flow.

    The MAF element is secured by 2 screws & has 1 wiring connector. To clean the element, remove it from the MAF housing and spray it down with electronic parts cleaner or non-inflammable brake parts cleaner (same stuff in a bigger can and cheaper too).


    89-90 Model cars: Measure the MAF output at pins C & D on the MAF connector (dark blue/orange and tan/light blue) or at pins 50 & 9 on the computer. Be sure to measure the sensor output by measuring across the pins and not between the pins and ground.

    91-93 Model cars: Measure the MAF output at pins C & D on the MAF connector light blue/red and tan/light blue) or at pins 50 & 9 on the computer. Be sure to measure the sensor output by measuring across the pins and not between the pins and ground.


    At idle = approximately .6 volt
    20 MPH = approximately 1.10 volt
    40 MPH = approximately 1.70 volt
    60 MPH = approximately 2.10 volt

    Check the resistance of the MAF signal wiring. Pin D on the MAF and pin 50 on the computer (dark blue/orange wire) should be less than 2 ohms. Pin C on the MAF and pin 9 on the computer (tan/light blue wire) should be less than 2 ohms.

    There should be a minimum of 10K ohms between either pin C or D on the MAF wiring connector and pins A or B. Make your measurement with the MAF disconnected from the wiring harness.


    Code 95 Key On, Engine not Running - the following test path is for 86-90 model Mustangs.

    The 95 code is because at one time or another, the fuel pump relay hiccupped and didn't provide power the pump when the computer told it to run. Sometimes this is a one time thing, other times it is a no run or runs poorly condition.

    [​IMG]

    Using the diagram, check the red/black wire from the fuel pump relay: you should see 12 volts or so. If not, check the inertia switch: on a hatch it is on the driver’s side by the taillight. Look for a black rubber plug that pops out: if you don't find it, then loosen up the plastic trim. Check for voltage on both sides of the switch. If there is voltage on both sides, then check the Pink/black wire on the fuel pump relay: it is the power feed to the fuel pump. No voltage there, check the Orange/Lt blue wire, it is the power feed to the fuel pump relay & has a fuse link in it. If there is good voltage there & at the Pink/black wire, swap the relay.

    Some Mass Air conversions neglect to run the extra fuel pump wire, and they always have a 95 code. See http://www.stangnet.com/tech/maf/massairconversion.html for more information on the Mass Air wiring conversion.

    See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

    Ignition switch wiring
    http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

    Fuel, alternator, A/C and ignition wiring
    http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

    Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

    Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

    Vacuum diagram 89-93 Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

    HVAC vacuum diagram
    http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

    TFI module differences & pinout
    http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

    Fuse box layout
    http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif
    Last edited: Aug 19, 2013
    #7
  8. 306N/A

    306N/A Member

    Joined:
    May 2, 2013
    Messages:
    95
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Ontario
    I bypassed the fuel relay with a on off switch for the fuel pump. would that be a reason the MAF sensor is not reading? Do i have to make that relay operational??
    Last edited: Aug 21, 2013
    #8
  9. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,698
    Likes Received:
    372
    Trophy Points:
    134
    Location:
    Dublin GA
    Go back and examine the diagrams I posted, particularly the 88-90 Mass Air 5.0 Mustang computer wiring diagram. Look at the part of the circuit that feeds the fuel pump relay and injectors. Then tell me what you see connected to what and you will have your answer.

    IF you really want to fix the problem, it's either time to think about :
    1.) What you can see and read.
    2.) What your can test and measure.
    3.) What you know.
    Or be prepared to do some study on what electricity is and how it works.
    Last edited: Aug 22, 2013
    #9
  10. 306N/A

    306N/A Member

    Joined:
    May 2, 2013
    Messages:
    95
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Ontario
    Just found the problem ... guy sold me a 90 harness and said it was a 89.. :bang:
    #10
  11. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,698
    Likes Received:
    372
    Trophy Points:
    134
    Location:
    Dublin GA
    That will definitely make for problems. The 1990 harness is unique and it only works in 1990 model year 5.0 Fox mustangs without significant rework/modification.
    #11
  12. 306N/A

    306N/A Member

    Joined:
    May 2, 2013
    Messages:
    95
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Ontario
    Put the 87 harness back in, and tapped in the MAF wires, code 66 is gone. fuel pump primes, everything seems good.. :nice:
    #12
  13. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,698
    Likes Received:
    372
    Trophy Points:
    134
    Location:
    Dublin GA
    I am glad to hear that you got it fixed. Your experience with the 90 model harness confirms that it is not compatible with other model year harnesses.
    #13
  14. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,901
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,096
    Trophy Points:
    144
    Location:
    In the garage
    Doesn't the 90 harness have the plug for the airbag sensor vs. the 87-89 that doesn't? If I recall that was a way to differentiate between them.
    #14
  15. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,698
    Likes Received:
    372
    Trophy Points:
    134
    Location:
    Dublin GA
    There are supposedly two extra connectors for the airbag sensors. I haven't personally seen it, but I believe that information is reliable.
    #15
  16. 306N/A

    306N/A Member

    Joined:
    May 2, 2013
    Messages:
    95
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Ontario
  17. JohnnyK81

    JohnnyK81 Member

    Joined:
    Sep 17, 2007
    Messages:
    77
    Likes Received:
    0
    Trophy Points:
    7
    Glad you got it fixed. and no code 66 eh? Which is what I'm dealing with after a similar swap!
    #17
  18. 306N/A

    306N/A Member

    Joined:
    May 2, 2013
    Messages:
    95
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Ontario
    clear the codes plug the stock mass air in start the car for a couple min turn off then check the codes.. thats how i found out it was the faulty bbk mass air..
    #18
  19. JohnnyK81

    JohnnyK81 Member

    Joined:
    Sep 17, 2007
    Messages:
    77
    Likes Received:
    0
    Trophy Points:
    7
    Nah I'm using stock MAF.. but the voltages all look good.
    #19

Share This Page
