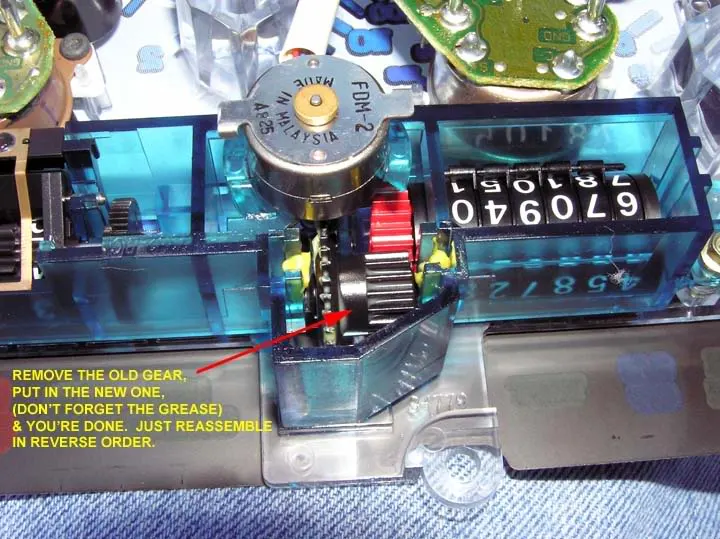

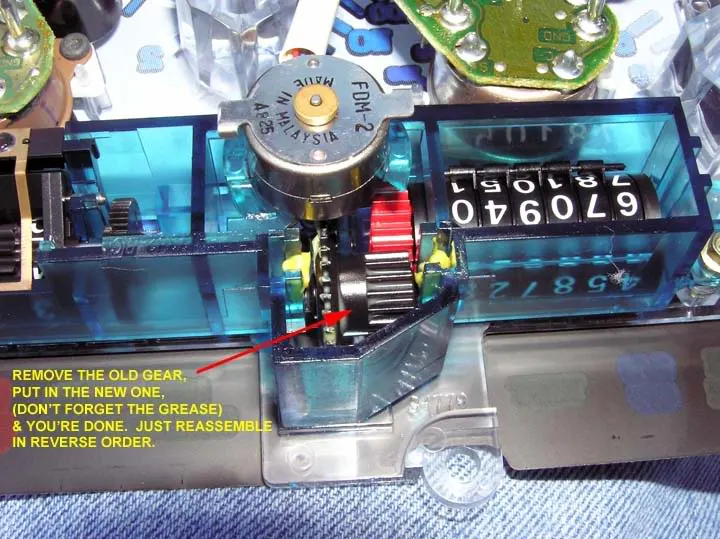

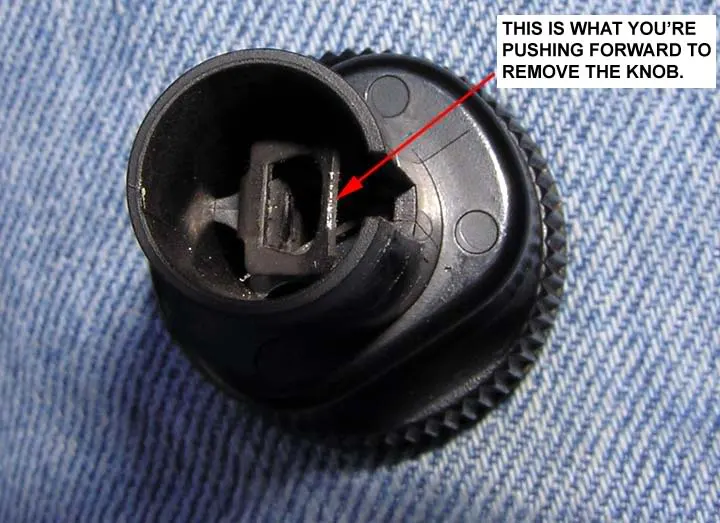

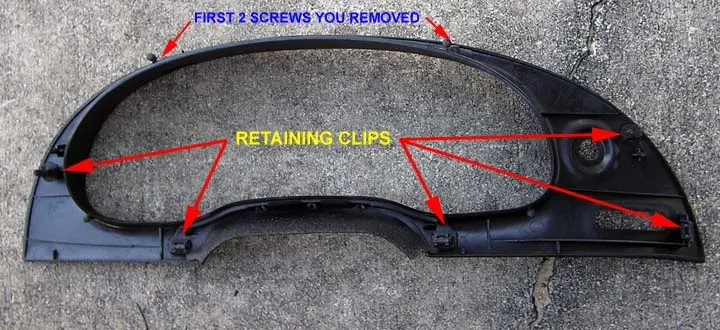

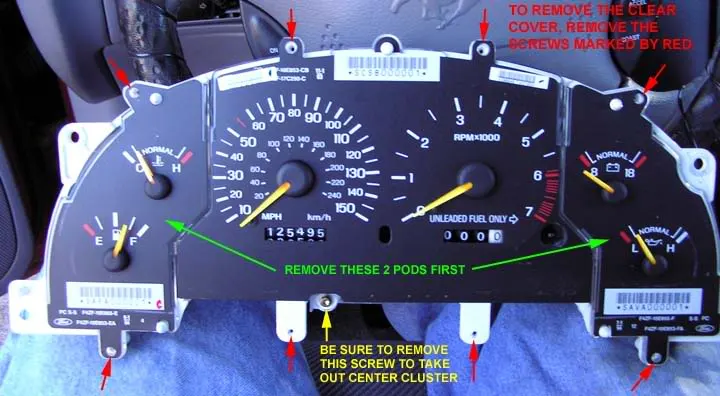

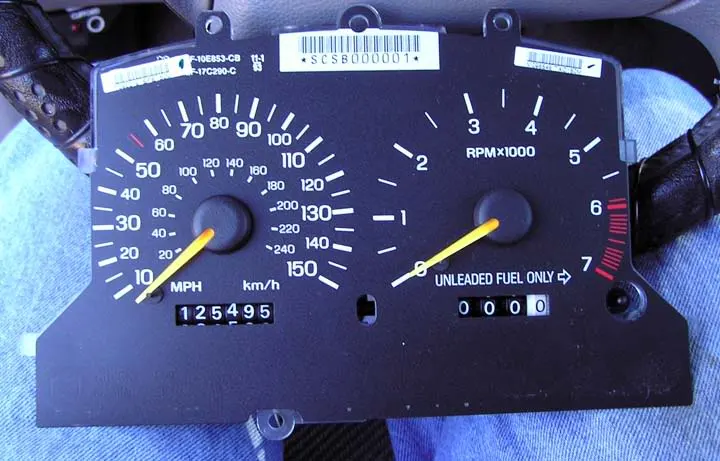

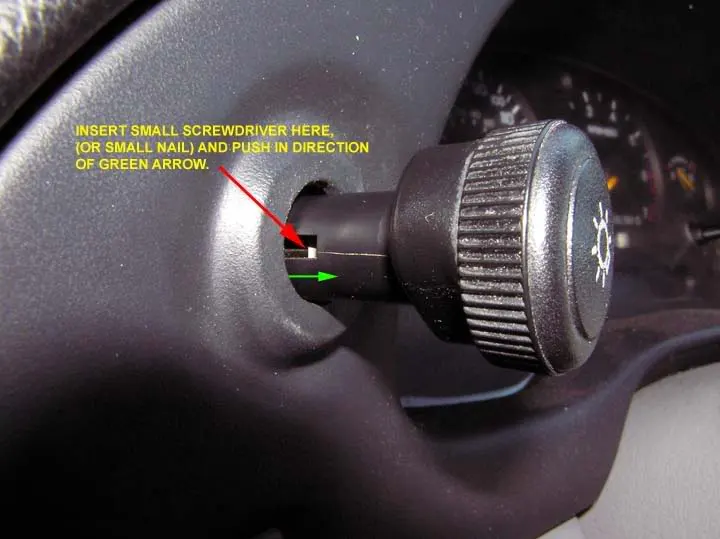

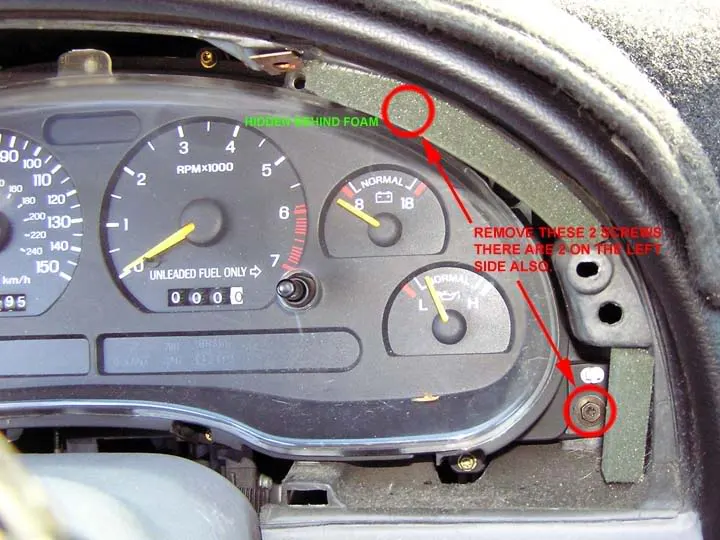

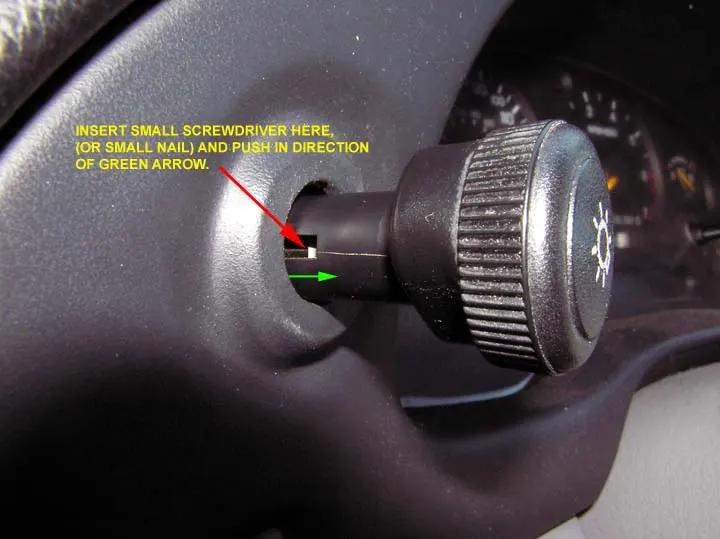

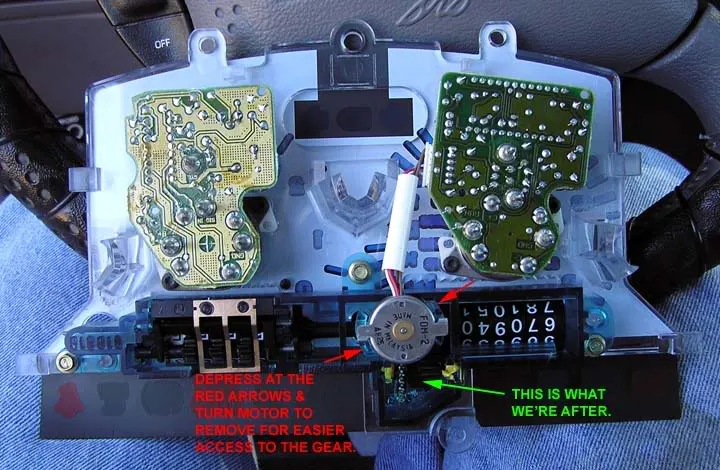

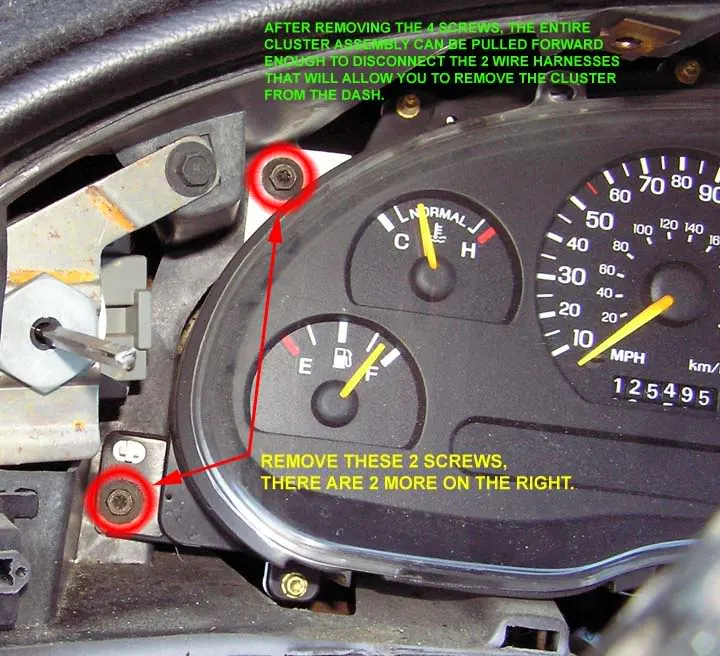

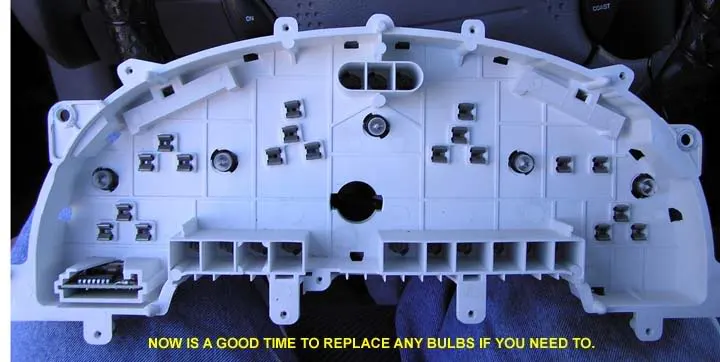

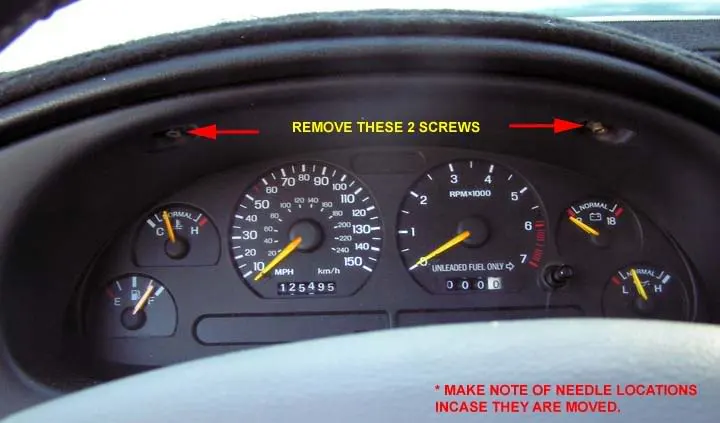

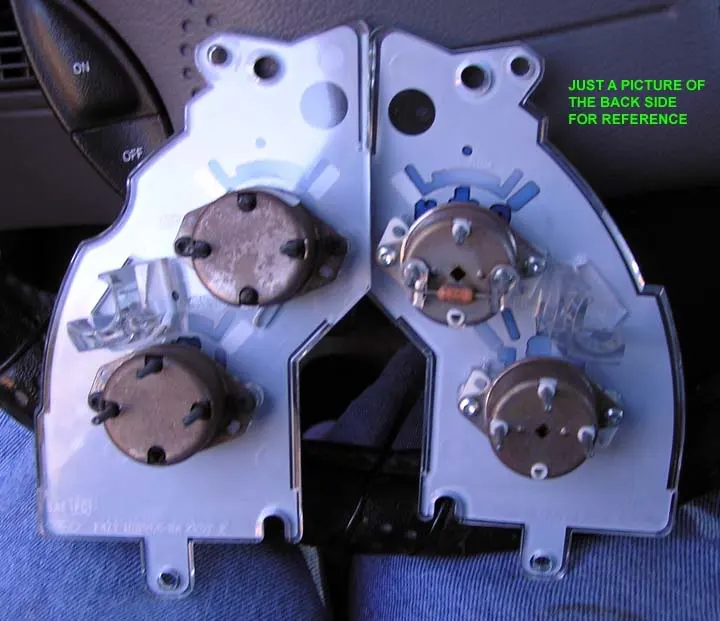

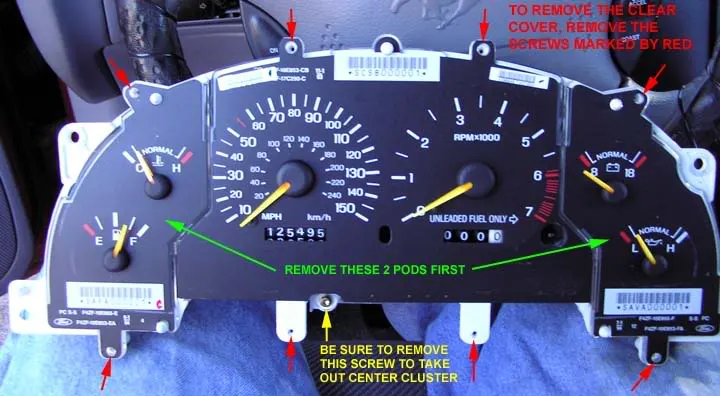

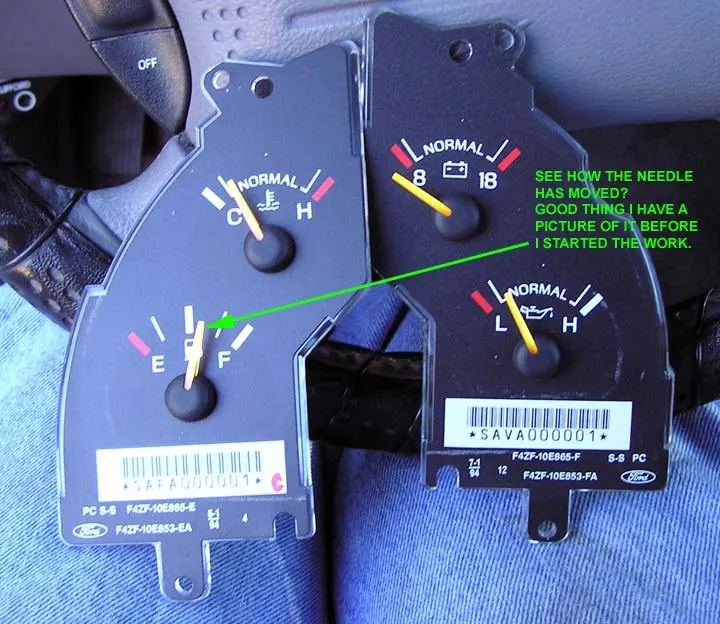

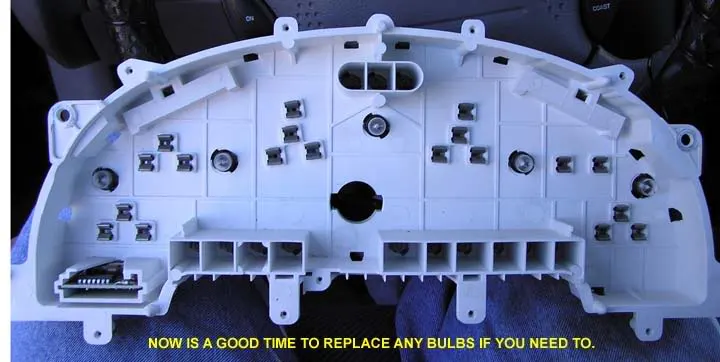

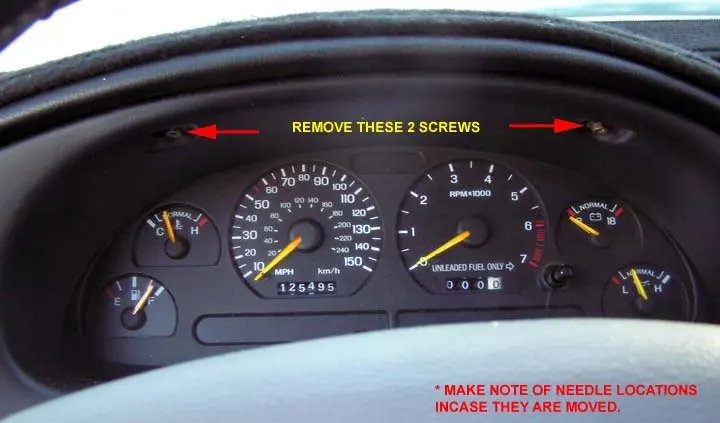

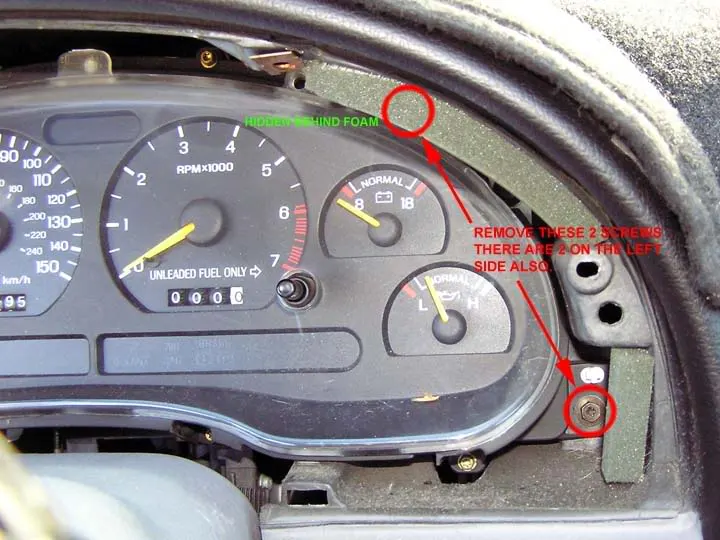

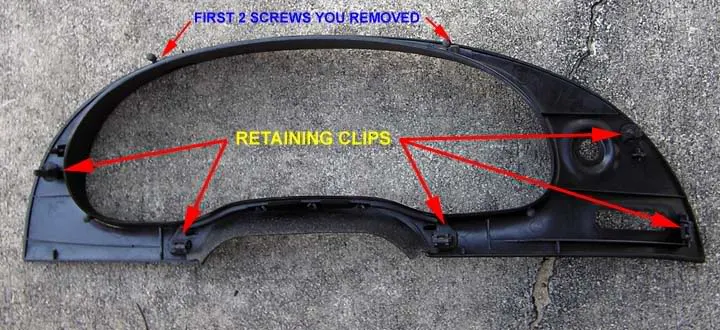

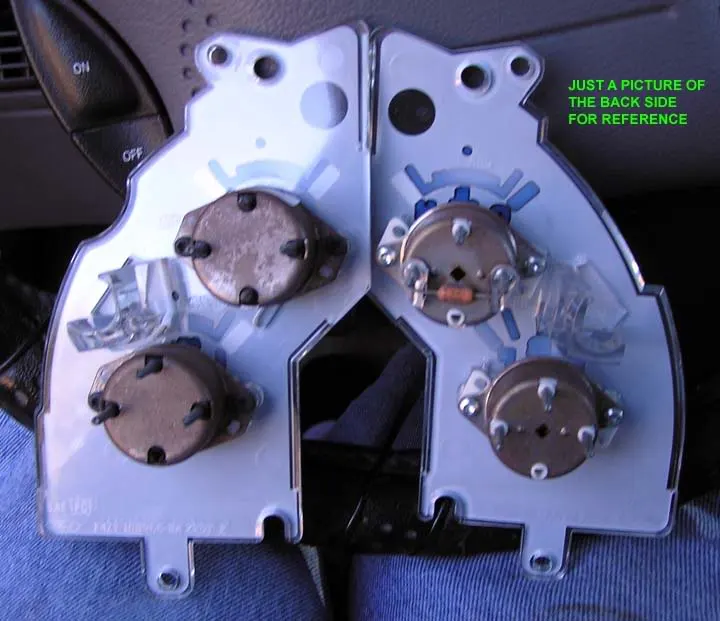

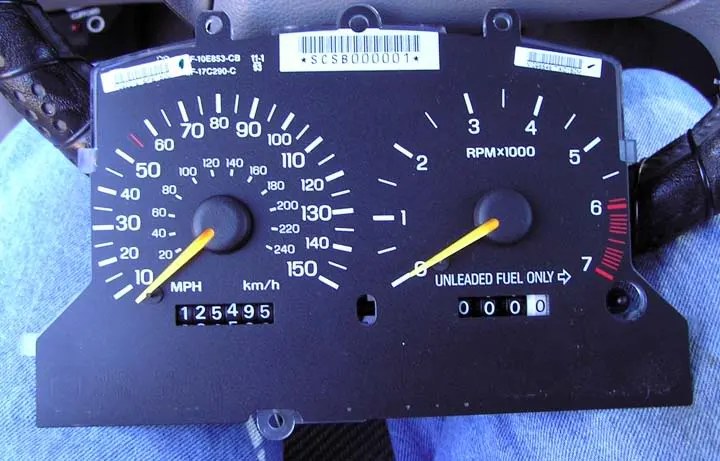

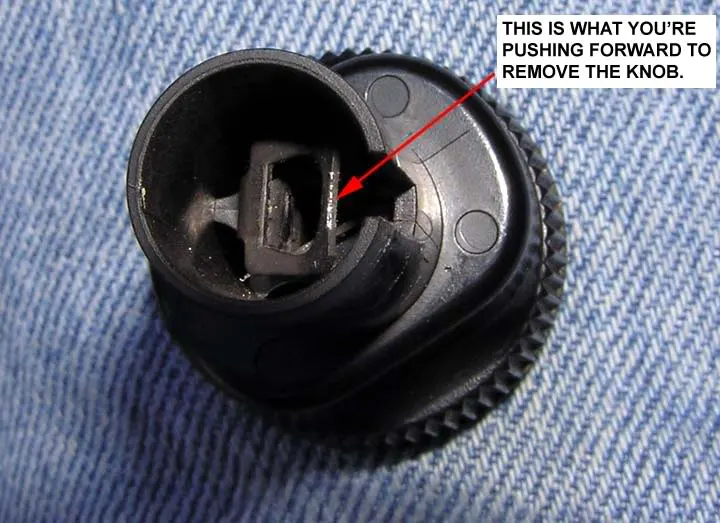

Drivetrain Pictorial Guide To Odometer Gear Replacement

Discussion in '1994 - 1995 Specific Tech' started by Jinx, Jan 3, 2006.


  1. tazer

    tazer New Member

    Joined:
    Mar 22, 2011
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    1
    I just threw some scotch tape on them and just pried it out. After breaking off the two pegs on the side I realize there is two small openings on the plastic housing lol. So for anyone in the future learn from my mistake and make it easy on yourself and just take a screwdriver and poke them out of there groove. :rlaugh:

    #101
  2. HollisArmstrong

    HollisArmstrong New Member

    Joined:
    Dec 8, 2010
    Messages:
    28
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Alabama
    I am using the 94 Mustang cluster from my parts car in my 61 Falcon build. Can I remove this gear and turn back the odomoeter to all 000000's? I would like to start out at all 000000 since it will be a new car when I am done. hehehe

    #102
  3. dil111

    dil111 New Member

    Joined:
    Mar 10, 2011
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    #103
  4. fr50089

    fr50089 New Member

    Joined:
    Apr 30, 2011
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Carthage,MO
    Ok this may be a dumb question and already asked but I replaced the gear and the worm gear but still doesnt work. My speedometer hasnt worked since I have owned the car ( about a month) does the speedo have to work to have the odometer and tripmeter work?

    #104
  5. 99FiveOh

    99FiveOh Advanced Member

    Joined:
    May 21, 2006
    Messages:
    2,176
    Likes Received:
    52
    Trophy Points:
    69
    Location:
    J-Ville, FL
    Well, it all gets it's signal from a common place, the VSS (vehicle speed sensor) which goes on the transmission. Start there and see what you find.

    #105
  6. fr50089

    fr50089 New Member

    Joined:
    Apr 30, 2011
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Carthage,MO
    I will try that and see what I find

    #106
  7. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree
    Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,759
    Showcase:
    2
    Albums:
    1
    Likes Received:
    2,074
    Trophy Points:
    173
    Location:
    Cat Country
    If I recall correctly:

    The older stangs (pre 2001??) have a separate mechanism for speed and odometer. The newer models run off a digital VSS. The older ones are actually gear and cable driven from your transmission (on the manuals at least) I would pull the cable out of the side of the transmission and check to see if the gear on the end of the cable is worn. The 2 gears you replaced in the cluster will only effect the odometer.

    #107
  8. 99FiveOh

    99FiveOh Advanced Member

    Joined:
    May 21, 2006
    Messages:
    2,176
    Likes Received:
    52
    Trophy Points:
    69
    Location:
    J-Ville, FL
    94 up Mustangs do not use cables to drive the speedo, it's all electronic. The signal comes from the VSS to drive the speedo/odo.

    #108
  9. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree
    Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,759
    Showcase:
    2
    Albums:
    1
    Likes Received:
    2,074
    Trophy Points:
    173
    Location:
    Cat Country
    ^ good to know :nice: I definitely agree with you that he should check that sensor :)

    #109
  10. 99FiveOh

    99FiveOh Advanced Member

    Joined:
    May 21, 2006
    Messages:
    2,176
    Likes Received:
    52
    Trophy Points:
    69
    Location:
    J-Ville, FL

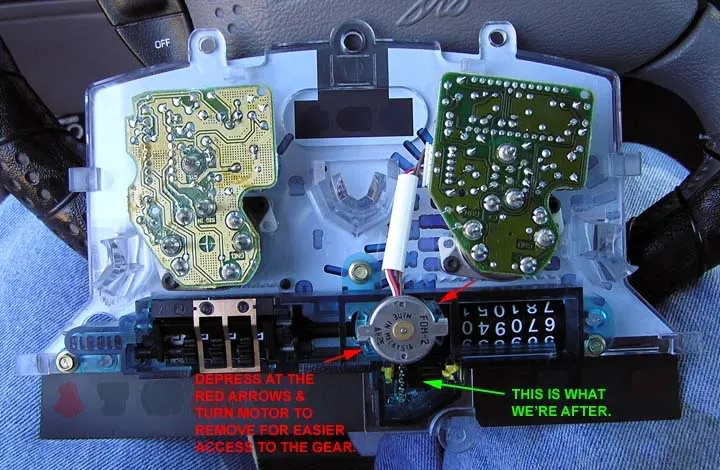

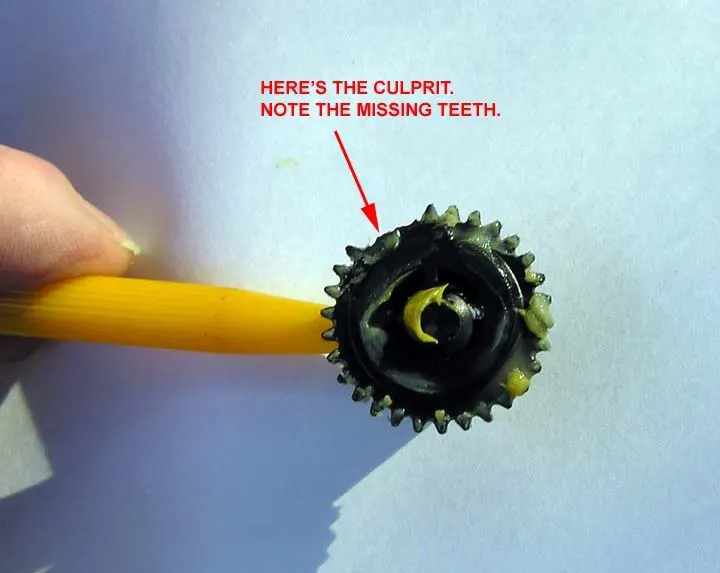

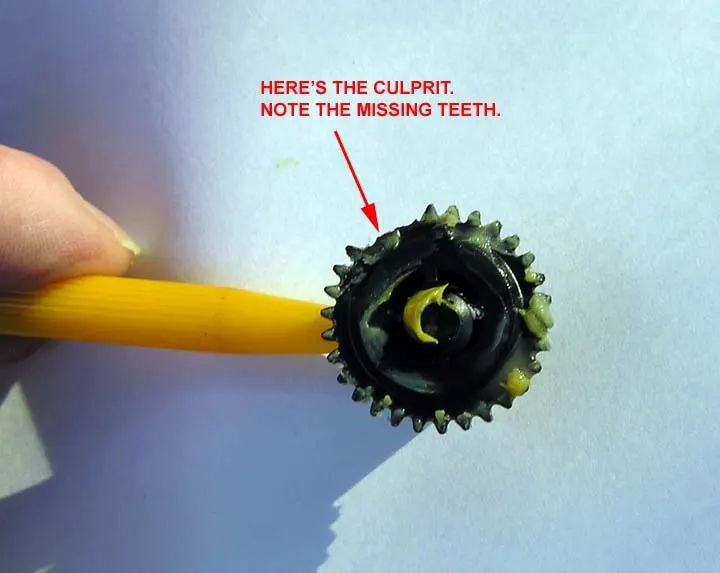

    Usually the culprit is a speedo driven gear that is worn down to the nub!

    #110
  11. Walid Sarwar

    Walid Sarwar New Member

    Joined:
    Jan 5, 2012
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Norcross, Georgia
    Hi, I had the exact same issue and replaced the part but now my 1998 ford mustang gt will not start. I don't know if it is security related since I removed the cluster or what! Any ideas? Thanks.






    #111
  12. VibrantRedGT

    VibrantRedGT "STANGNET'S PENGUIN SMACKER"
    Super Mod

    Joined:
    Nov 30, 1999
    Messages:
    15,572
    Likes Received:
    221
    Trophy Points:
    114
    Location:
    Boca Raton, Florida
    I just added this thread to the 94-95 Sticky. Its located in section 23. Hopefully Jinx keeps the pictures hosted.

    #112
    Jinx likes this.
  13. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree
    Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,759
    Showcase:
    2
    Albums:
    1
    Likes Received:
    2,074
    Trophy Points:
    173
    Location:
    Cat Country

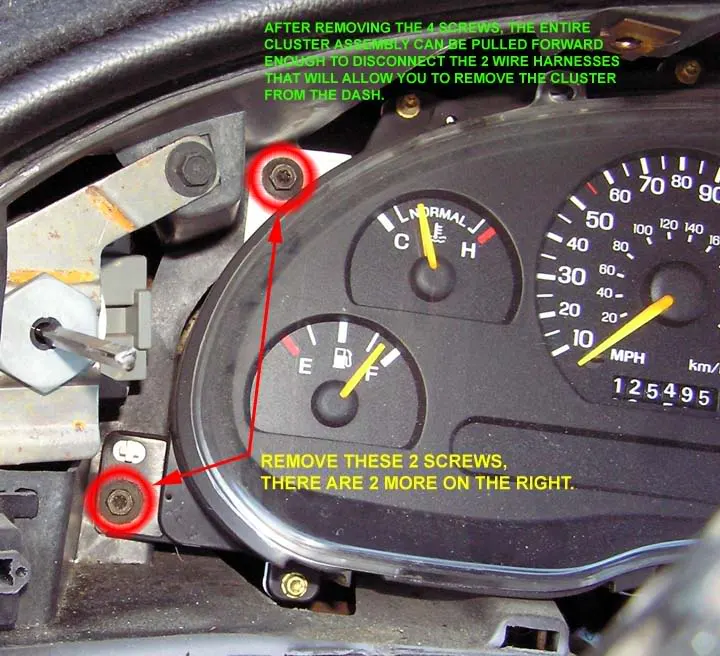

    Only 2 things I can think of are that a wire got pinched putting the cluster back in, or the simpler option that not all the harnesses were reconnected before putting the cluster back in.

    Did you pull any fuses or disconnect the battery before removing the cluster. I know stupid question, but I had to ask anyway.

    #113
  14. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree
    Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,759
    Showcase:
    2
    Albums:
    1
    Likes Received:
    2,074
    Trophy Points:
    173
    Location:
    Cat Country
    Pics should be here for a long time. If not, the write up was so popular that many other websites have duplicated the post on their sites, and the distributor of the gears have a copy :nice:

    #114
  15. VibrantRedGT

    VibrantRedGT "STANGNET'S PENGUIN SMACKER"
    Super Mod

    Joined:
    Nov 30, 1999
    Messages:
    15,572
    Likes Received:
    221
    Trophy Points:
    114
    Location:
    Boca Raton, Florida
    Good deal, like I mentioned I also took this write up and installed it in our 94-95 sticky if that's OK. I used your name.

    #115
  16. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree
    Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,759
    Showcase:
    2
    Albums:
    1
    Likes Received:
    2,074
    Trophy Points:
    173
    Location:
    Cat Country
    Not a problem. Glad it can still help. I'm sure that as they 90's start hitting the scrap yards, this info will become less relevant.

    #116
  17. Walid Sarwar

    Walid Sarwar New Member

    Joined:
    Jan 5, 2012
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Norcross, Georgia
    Thanks, I will recheck the connections and see.

    #117
  18. HISSIN50

    HISSIN50 "How long does it take to get help in here?
    SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,157
    Likes Received:
    14
    Trophy Points:
    79
    Sorry to bump this folks.

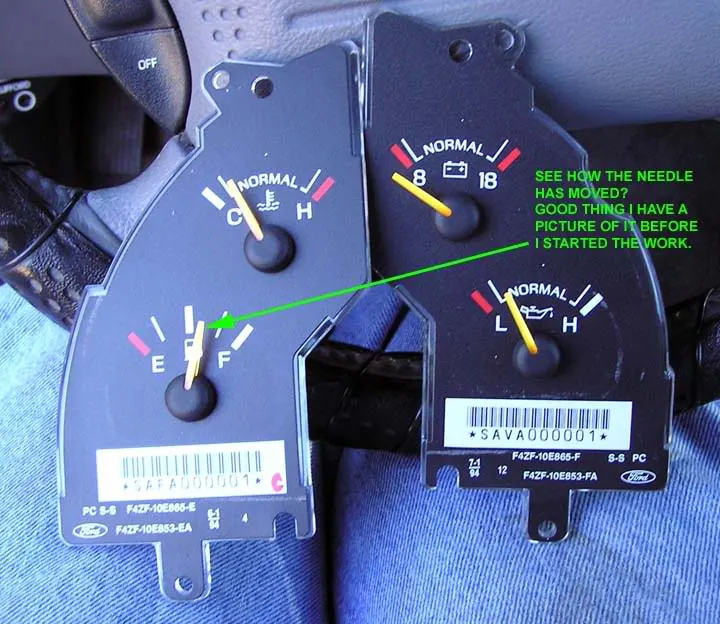

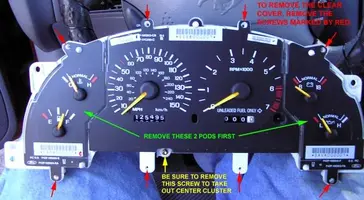

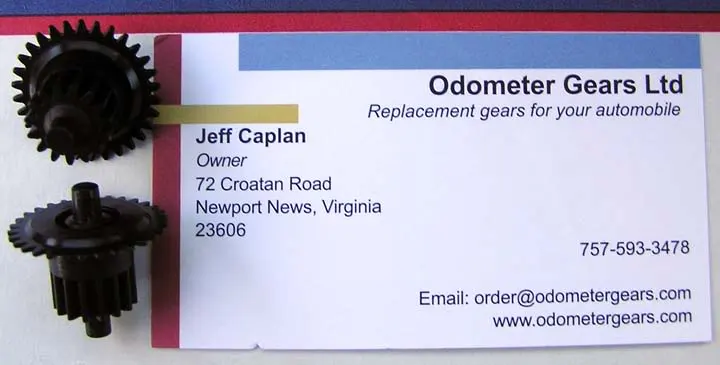

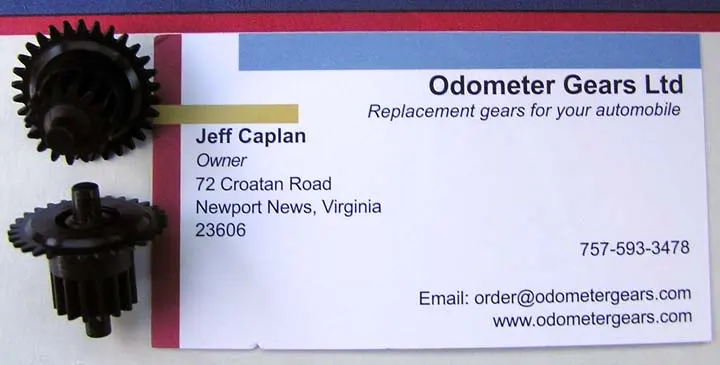

    These days, what's the consensus on the best place to buy (both gears)? Are all the gears the same and simply repackaged or is there a reason to buy from one person vs another? I'd pay more for better quality, but don't wanna pay more if the same exact item can be purchased for less elsewhere.

    Thanks for any input. :)

    #118
  19. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree
    Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,759
    Showcase:
    2
    Albums:
    1
    Likes Received:
    2,074
    Trophy Points:
    173
    Location:
    Cat Country
    I would like to think you can get them elsewhere, but at the time I originally wrote this thread, there was really no other re-sellers of the gears outside of going to the stealership. Let us know what you find in your searches.

    #119
  20. 99FiveOh

    99FiveOh Advanced Member

    Joined:
    May 21, 2006
    Messages:
    2,176
    Likes Received:
    52
    Trophy Points:
    69
    Location:
    J-Ville, FL
    #120
