Electrical 93 5.0 LX Code 18 SPOUT in Issues

DOHCobra

Member
Sep 16, 2018
16
4
13
58
NE Wisconsin
New to forum and think I have read most posts referencing a Code 18 and SPOUT issues. My trouble shooting results are slightly different from the other posts I have read so sharing to get some insight for next step in solving my problem.

I have a 93 LX 5.0 5spd convertible. Two weeks ago took it out as usual except it took three attempts to start vs the usual start on first try. 1.5 miles down the road, pull it out of gear approaching a stop and the idle drops, stumbles and engine dies. Would not restart within an hour, towed it home and checked for codes. Code 18 is only code that came up. I started scouring forums and internet for some Code 18 wisdom. Found a lot of information here, but not a perfect fit or fix for my situation yet.

I have owned the car for only four months so I have inherited a lot of unknown history. It is 60k miles, relatively stock with exception of last owner adding a Vortech and not much else. The owner prior to him installed a 5spd in place of automatic and a 3.55 rear in place of 2.80 all done with factory OEM parts, no aftermarket or performance pieces to be found. The computer is an F3ZF-FA so appears to be correct for current set up

The fuel pump primes with key on and has pressure, but I have not measured it with gauge yet. My coil and distributor/TFI appeared to be factory original Motorcraft. I planned to replace them soon for peace of mind so thought I would start there. First I attempted to start the car without any changes. It fired up with SPOUT in and ran rough, eventually stalled. I swapped out the coil and again it started up and ran rough, eventually stalled. I then swapped the distributor for a new unit (not remanufactured) with new TFI and again it started (SPOUT out to set timing) 10BTDC, it ran rough like the original distributor, no change. I put the SPOUT in and the engine stalled almost immediately. I checked the timing when I first got the car and it was at 10BTDC and the SPOUT did advance the timing 4 degrees when installed.

I then began following the Code 18 troubleshooting logic from this forum and will add my results and questions in the copy paste of the procedure below for reference.

Code 18 - SPOUT out or wiring fault - look for short to ground in SPOUT wiring going back to the computer. Possible bad TFI or defective 22 K resistor in the IDM wiring

Use a timing light to check the timing: remove the SPOUT and observe that the timing retards at least 4 degrees. Put the SPOUT back in place and observe that the spark advances at least 4 degrees. Timing at 10BTDC with or without the SPOUT, no timing change removing spout. I noticed that when handling the spout pigtail that the engine rpm did vary noticeably. I found the SPOUT was loose and not continuously connected. I disassembled the spout plug, bent the tangs of the female connectors to better engage the SPOUT blades. SPOUT now plugs firmly in place with continuous contact. Still no SPOUT effect on timing. Engine struggled to run with SPOUT in and does not start with SPOUT in. After fixing SPOUT plug, I still noticed changes in engine running when handling the TFI harness near the plug, not as bad as loose SPOUT but noticeable. I soldered in a new TFI connector and this fixed the variations upon handling the harness. Checked to see if code 18 went away - still there. Ran car, would not start with SPOUT in, no change.

This code can disable spark advance and reduce power and fuel economy.

Remove the passenger side kick panel and disconnect the computer connector.

There is a 10 MM bolt that holds it in place.

Disconnect the TFI module connector from the TFI and the measure the resistance between the yellow/lt green wire and ground.

You should see greater than 100 K (100000) ohms. I have infinite resistance or open circuit, so greater than 100K ohms

Check the resistance from Pin 4 on the computer connector (dark green/yellow) and the dark green/yellow wire on the TFI connector. You should see 20-24 K Ohms (20,000-24,0000 ohms).
21.8K ohms

PIP Sensor functionality, testing
Some simple checks to do before replacing the PIP sensor or distributor:

You will need a Multimeter or DVM with good batteries: test or replace them before you get started.. You may also need some extra 16-18 gauge wire to extend the length of the meter’s test leads.

Visual check first: look for chaffed or damaged wiring and loose connector pins in the TFI harness connector.

Check the IDM wiring – dark green/yellow wire from the TFI module to pin 4 on the computer. There is a 22K Ohm resistor in the wiring between the TFI and the computer. Use an ohmmeter to measure the wire resistance from the TFI to the computer. You should see 22,000 ohms +/- 10%.
21.8K ohms

Check the PIP wiring - dark blue from the TFI module to pin 56 on the computer. Use an ohmmeter to measure the wire resistance from the TFI to the computer. You should see 0.2-1.5 ohms.
0.2 ohms

Check the SPOUT wiring – yellow/lt green from the TFI module to pin 36 on the computer. Use an ohmmeter to measure the wire resistance from the TFI to the computer. You should see 0.2-1.5 ohms.
0.2 ohms

Check the black/orange wire from the TFI module to pin 16 on the computer. Use an ohmmeter to measure the wire resistance from the TFI to the computer. You should see 0.2-1.5 ohms.
0.2 ohms

Check the red/green wire; it should have a steady 12-13 volts with the ignition switch on and the engine not running.
Steady 12.0 V

Check the red/blue wire; it should have a steady 12-13 volts with the ignition switch in Start and the engine not running. Watch out for the fan blades when you do this test, since the engine will be cranking.
10.0 volts while cranking. Definitely not 12-13 volts. What is the corrective action for this condition?

Thanks,

  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,408
2,745
234
75
Dublin GA
lowendmac.com
When cranking the engine, it would not be unusual to see the voltage drop off to 10 volts.

PIP problems & diagnostic info
Spark with the SPOUT out, but not with the SPOUT in suggests a PIP problem. The PIP signal level needs to be above 6.5 volts to trigger the computer to pulse the fuel injectors, but only needs to be 5.75 volts to trigger the TFI module. Hence with a weak PIP signal, and the SPOUT in, you could get spark but no injector pulse. You will need an oscilloscope or graphing DVM to measure the output voltage since it is not a straight DC voltage.

See http://www.wellsmfgcorp.com/pdf/counterp_v8_i2_2004.pdf and http://www.wellsmfgcorp.com/pdf/counterp_v8_i3_2004.pdf for verification of this little detail from Wells, a manufacturer of TFI modules and ignition system products.


DOHCobra

Member
Sep 16, 2018
16
4
13
58
NE Wisconsin
Good article has me thinking. I do not have and oscilloscope or GMM to measure PIP signal and voltage, may have to invest or get to a shop that does. Appears the article issue was that they had spark but not fuel due to weak PIP sensor issue when hot.

I tested injector pulse with NOID light and I do have injector pulse with SPOUT connector in and out.

I also used an inductive timing light on coil wire to distributor. Coil fires with SPOUT connector out while cranking and coil does not fire with SPOUT connector in while cranking.

So I have fuel but no spark with SPOUT connector in. Has me thinking that when I connect SPOUT to computer the code 18 issue that the computer diagnostics is identifying is within the computer.

Any issues with my logic? Other thoughts?

Thanks,


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,408
2,745
234
75
Dublin GA
lowendmac.com
Good article has me thinking. I do not have and oscilloscope or GMM to measure PIP signal and voltage, may have to invest or get to a shop that does. Appears the article issue was that they had spark but not fuel due to weak PIP sensor issue when hot.

I tested injector pulse with NOID light and I do have injector pulse with SPOUT connector in and out.

I also used an inductive timing light on coil wire to distributor. Coil fires with SPOUT connector out while cranking and coil does not fire with SPOUT connector in while cranking.

So I have fuel but no spark with SPOUT connector in. Has me thinking that when I connect SPOUT to computer the code 18 issue that the computer diagnostics is identifying is within the computer.

Any issues with my logic? Other thoughts?

Thanks,
It is possible, but it is also an expensive guess...


DOHCobra

Member
Sep 16, 2018
16
4
13
58
NE Wisconsin
More an inferred diagnosis based on troubleshooting observations and results than a guess. I found an ECM rebuilder who will diagnose my unit before performing any rebuild service. I will update in a week or so after I get my ECM diagnosis and refreshed unit back.


DOHCobra

Member
Sep 16, 2018
16
4
13
58
NE Wisconsin
ECM came back early this week from EcuExchange in Florida. Power supply, capacitors and voltage regulators updated. Engine fired right up with SPOUT connector in, which it would not do previously. Ran fine for a short while, sounds more synchronous than it did before, but still have the coil misfire symptom as before, less with SPOUT connector out, but it continues to drop coil fire erratically. Still get Code 18.

Went back to the Code 18 troubleshooting steps.
  • Opened the TFI harness wiring back to the firewall, shielding was good, wiring looked to be in pristine condition so stopped there and rewrapped it. Resistances were all OK.
  • Since I now have two TFIs took them to Advance for testing. The original Motorcraft failed first test cycle, and passed next two. The new TFI that came with replacement distributor passed all three test cycles. The new TFI is noticeably heavier than the original - probably has more heat sink material. Reinstalled the new TFI.
  • Still looking for answers I studied the wiring diagrams, particularly related to the coil negative side of circuit and thought of checking the 22k ohm resistor again. The IDM wire from TFI harness to ECM connector showed 22k ohm. I unwrapped the resistor from the harness, cut it out and measured resistance at 22k ohm when it was stationary. I shook the resistor with the ohm meter connected and the resistance varied +/- 10-20k ohm. I then flexed it slightly and the resistance swung from zero to infinity and everything in between. I soldered in a new resistor and it is rock solid 21.7k ohm now.
Fired engine and although the tach is more steady when coil misfires, the coil continues to misfire.

Issues corrected to date:
  1. Replacement distributor and coil had no effect on coil dropping fire, but I did find that the original distributor has noticeable rotational resistance in the shaft bearings compared to free spinning new distributor
  2. SPOUT connector plug was loose and SPOUT was not always electrically connected as found in wiggle test, fixed by adjusting female connectors of SPOUT harness plug
  3. TFI harness plug also showed some variation upon wiggle test - replaced plug, now solid connection
  4. Computer had some weaknesses and parts beyond expected service life, but not likely the root cause of my problem
  5. IDM circuit resistor had big issues - replaced it.
I plan to have a closer look at the PIP sensor signal of both the new and original distributors. Open to other thoughts on the Code 18 troubleshooting and potential next steps.


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,408
2,745
234
75
Dublin GA
lowendmac.com
A other thought: do any of the other accessories - radio, heater, turn signals have problems at the same time the engine misses? If so the ignition switch and associated wiring are suspect.


It seems that you have had an unusual number of loose connections and wiring problems. I would swap the ignition
coil around one more time with one of the spares you think may be good and while you are at it, check the ignition
coil connections.
There is a fuse link in the wiring that feeds the ignition coil and It may also have some connection problems,

The following are diagrams courtesy of Tmoss & Stang&2birds

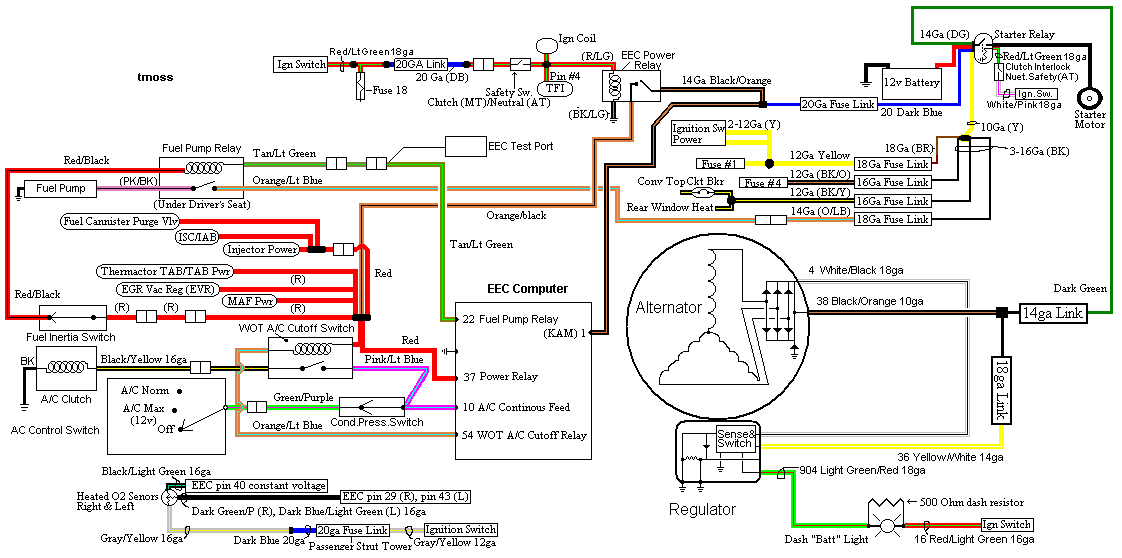

Fuel, alternator, A/C and ignition wiring
