Suspension Lower Torque Box Reinforcement Not Fitting

Cheapskate207

Advanced Member
Jan 12, 2020
373
268
73
29
Maine

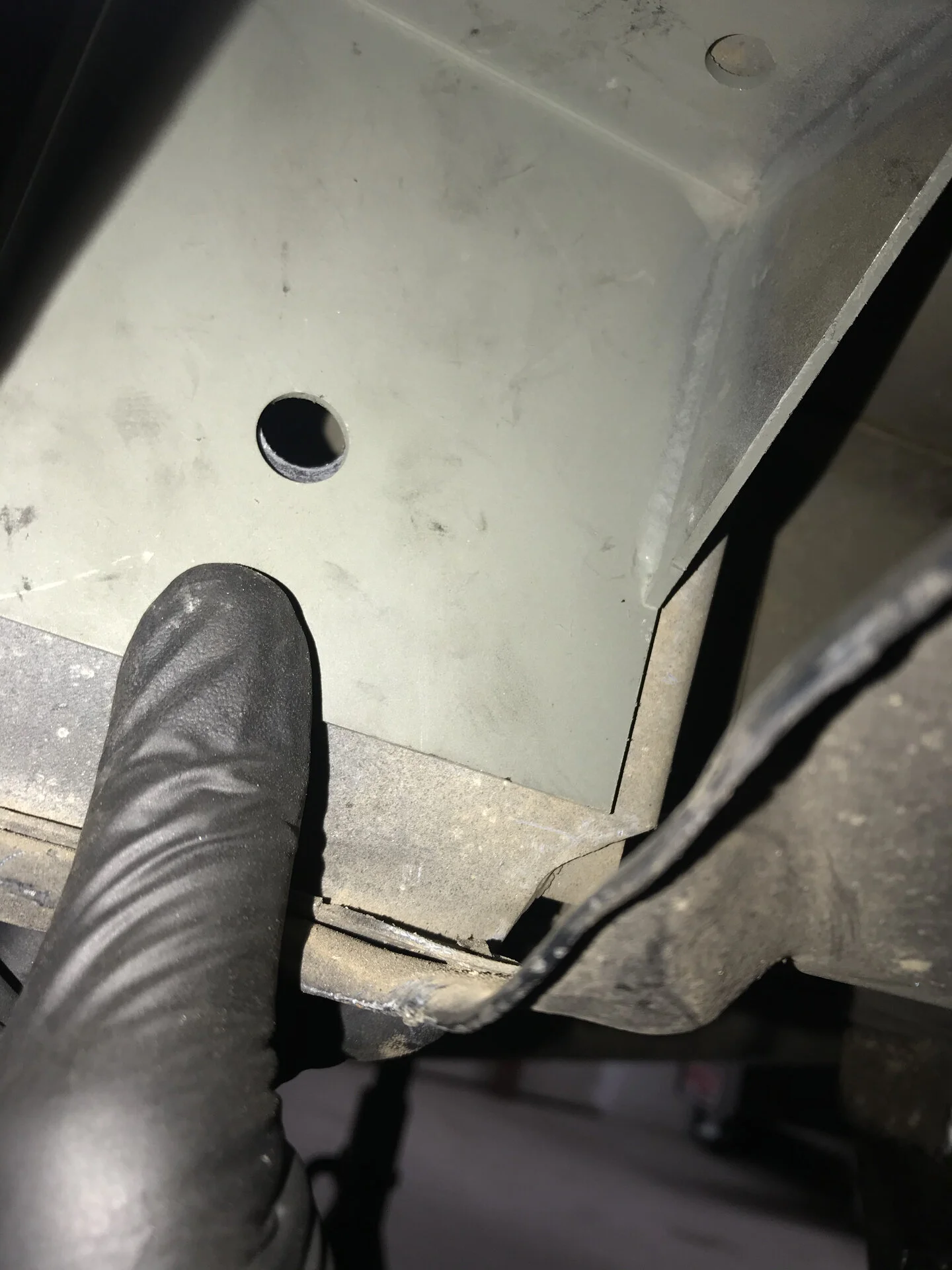

Trying to install LMR torque box reinforcements. The bolt holes for the lower control arms don’t line up. My torque boxes seem to be in great condition. I considered slotting the plate but I think that would defeat the purpose? Unless the clamping force does all the work? Nonetheless, I don’t think I should need to cut up a brand new part and have emailed LMR on the topic. I just wanted to post here and see if anyone else has run into this.

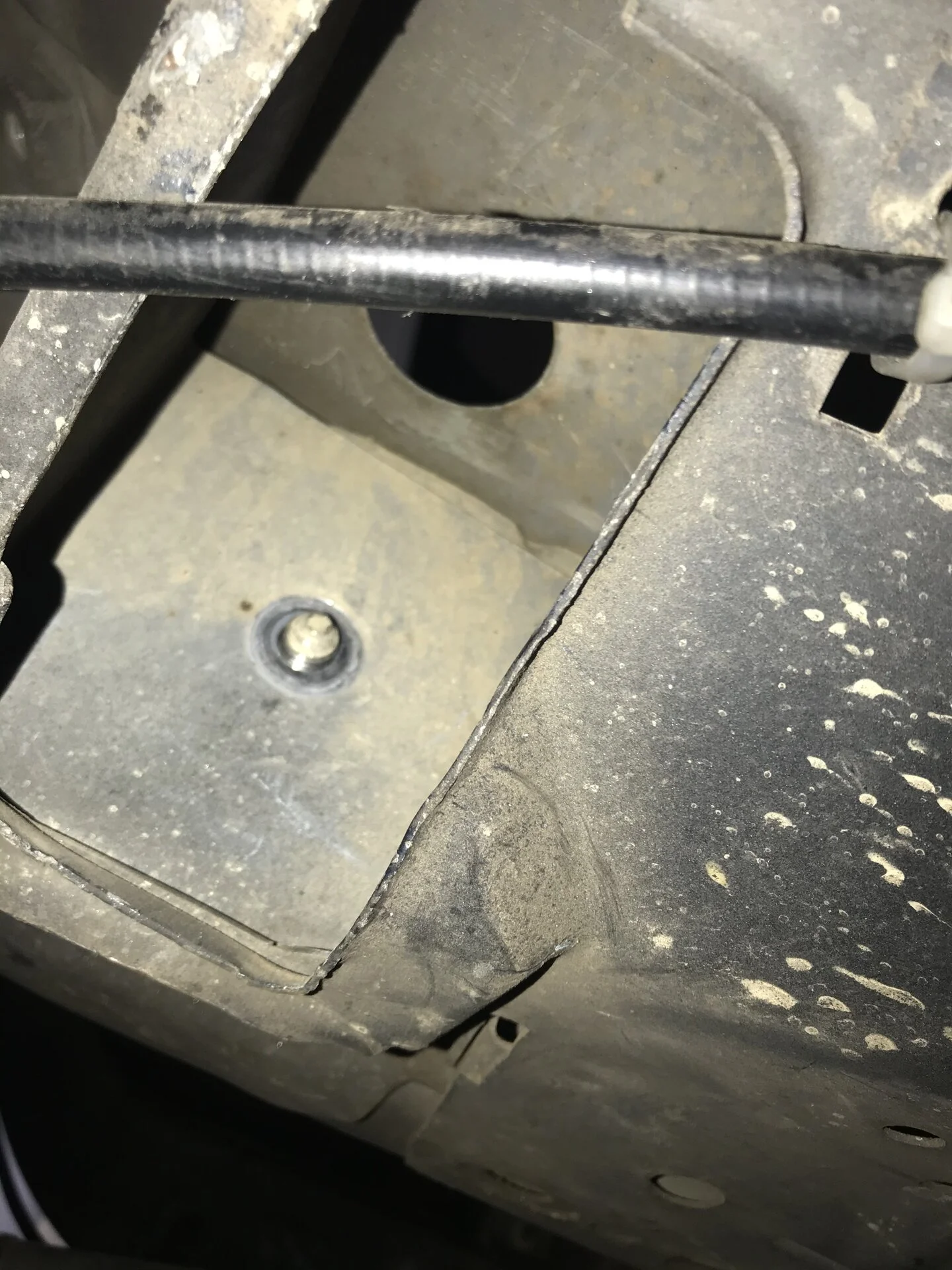

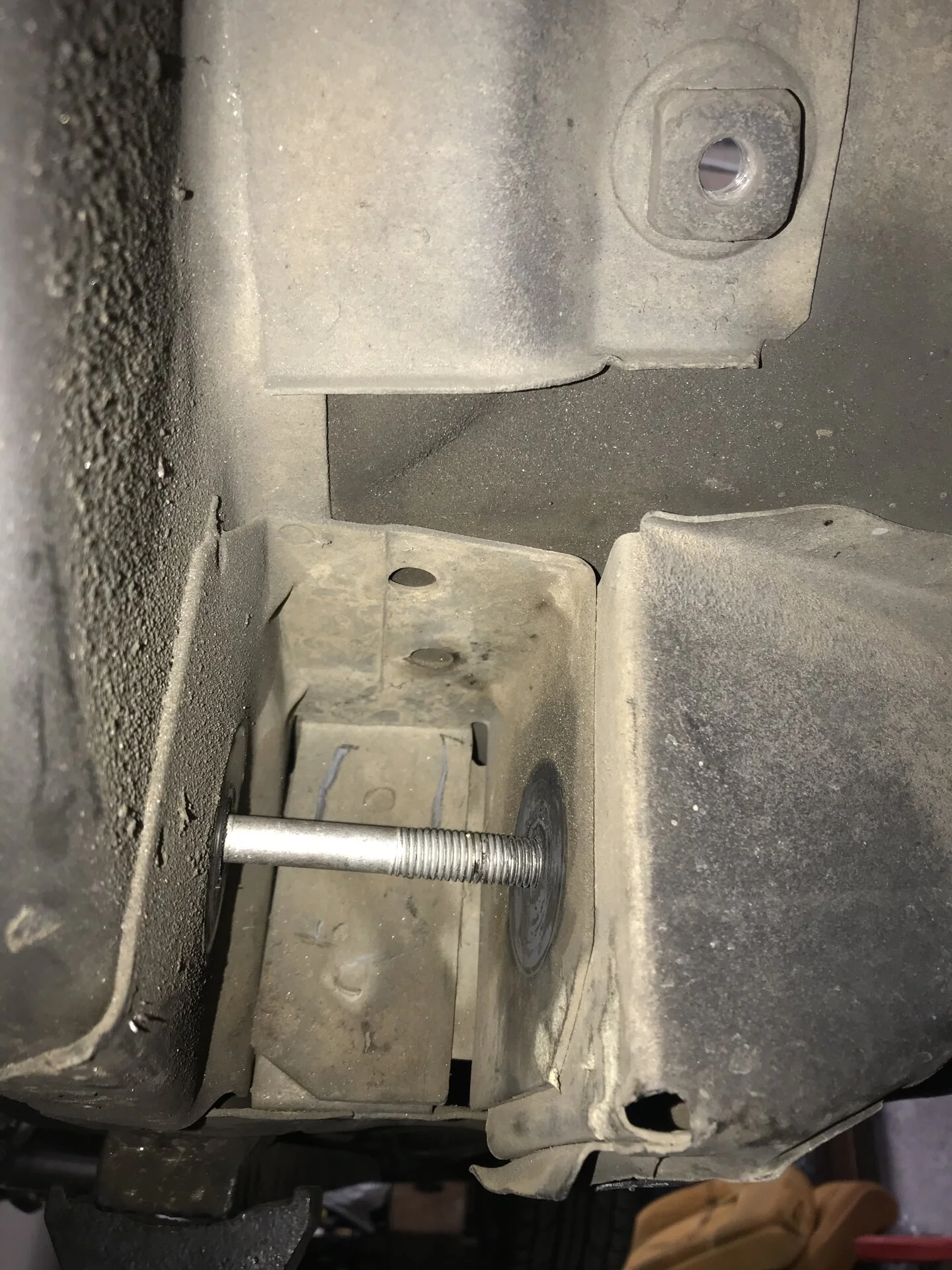

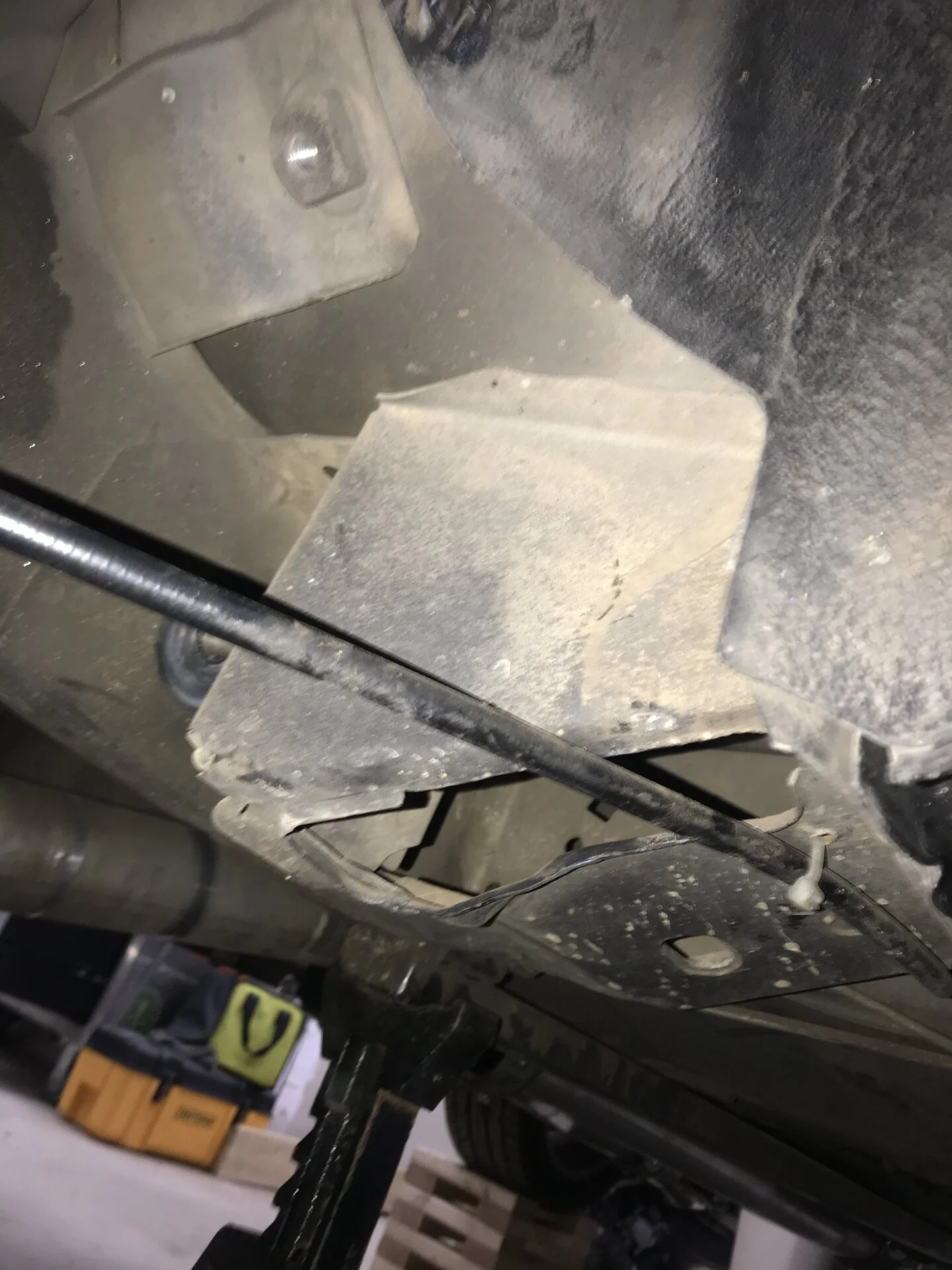

pics of my torque boxes, for reference:



  • Sponsors(?)


arnie93lx

Member
Oct 1, 2005
94
14
19
50
Columbus, OH
can you tell what is keeping it from lining up? it looks like that small little "gussetting" at the top of the torque box may be the problem. Will it go into place if you tap it with a hammer? I didn't have issues with mine but I didn't get mine from LMR and I did mine like 11 years ago. You may have to take a dremel and grind just a little off those gussets until it lines up.

I'm thinking these may be holding it back from lining up:

fox torque box.jpeg

Last edited:

Cheapskate207

Advanced Member
Jan 12, 2020
373
268
73
29
Maine
There’s no gusset. The reinforcement sits on the top and side, seemingly fully “seated”. To me, it seems like the hole is drilled in the wrong place or the bracket is bent wrong. I could be wrong, but i don’t think my torque boxes are the issue? Maybe someone else will see something I’m not though... I have no experience with bad tb but I have done my share of googling.


arnie93lx

Member
Oct 1, 2005
94
14
19
50
Columbus, OH
Ok, I see the upper part is sitting flush so not sure on that one. See what LMR says about it, might have the hole drilled wrong. I don't think they are side specific.


Cheapskate207

Advanced Member
Jan 12, 2020
373
268
73
29
Maine
I just say your edited pic. That’s actually where the control arm goes. I just took it for reference of tb condition. They are side specific but I verified they’re on the correct side. I also tried swapping them just in case. I’m interested to see what they have to say. I know that Ford doesn’t have the best reputation for quality control in this era, but I can’t imagine I’m the only one that’s run into this.


arnie93lx

Member
Oct 1, 2005
94
14
19
50
Columbus, OH
It has been quite a while since I installed mine, now I remember it goes on the outer side of the box. I might check mine when I get home just to see how mine were made (the torque box reinforcements)

  • Like
Reactions: Cheapskate207

arnie93lx

Member
Oct 1, 2005
94
14
19
50
Columbus, OH
One of the people in this thread said he had to open up a hole just a little for the reinforcements


  • Like
Reactions: Cheapskate207

Steel1

Mustang Master
Aug 18, 2017
1,280
591
143
51
Connecticut
Installed mine a long time ago but I don't remember having any alignment issues.
That being said I don't think opening that hole up a bit is going to do any harm , it looks like its only slightly off.


Cheapskate207

Advanced Member
Jan 12, 2020
373
268
73
29
Maine
It’s pretty close. I will if I have to.

Im leaning towards the hole is drilled wrong. My tb don’t appear to be bent at all and on both sides the holes don’t line up about the same amount. My thought was if the arm yanks on the bolt, and the bolt hole is enlarged, the reinforcement is less effective. Unless, the clamping force does all the work. Which is possible, I just don’t know. I’m probably over thinking this.


arnie93lx

Member
Oct 1, 2005
94
14
19
50
Columbus, OH
Wild Rides Race cars had some of the first sets of these torque box reinforcements, I bought a set off ebay at first and then went back and bought wild rides because of the feedback and quality, I sold the ebay ones but they looked to be good quality too.


Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
29,837
11,451
234
Box behind Walmart
www.stangnet.com
You can also try getting that hole lined up by changing your jacking/support heights and locations. If you can get the body to 'twist' just a smidge, you can probably get the hole lined up.

A metal awl could be useful too.

  • Like
Reactions: Boostedpimp

Cheapskate207

Advanced Member
Jan 12, 2020
373
268
73
29
Maine
Just want to keep this updated. I spoke with Jason at LMR. He had my take measurements and then handed me off to Landan. Landan measured at kit off the shelf and sent me those measurements to compare. I won’t get a chance to measure until Friday and will update this thread with my findings. Great customer service from LMR so far; no surprise.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
34,655
10,821
224
Massachusetts
LMR does have excellent customer service. I’m sure they will do what they can.

With that said, these are mass produced, assembly line cars. Things are going to be close, but gotta anticipate a little fudge factor here and there is needed just due to manufacturing tolerances of the glorious 1980s

  • Like
Reactions: Shakerhood

Cheapskate207

Advanced Member
Jan 12, 2020
373
268
73
29
Maine
‘90’s*** ;). I expected that. Landan also said he’s also run into similar issues. I’m anxious to measure and see if they’re correct. I’m curious to see what he recommends if the reinforcements are correct and the issue is my car.


Cheapskate207

Advanced Member
Jan 12, 2020
373
268
73
29
Maine
Time to close this case. I took all the measurements and compared them to the ones Landan took. They were the same so it appears that the issue is my car. Landan said he’s run into this in the past and he had to slot the holes in the reinforcement plate. If I was ok doing that he would compensate me with a percentage of the purchase price in form of an LMR gift card. I found that extremely fair and, frankly, unexpected. I obviously agreed. Kudos to Landan and LMR for great customer support, once again.

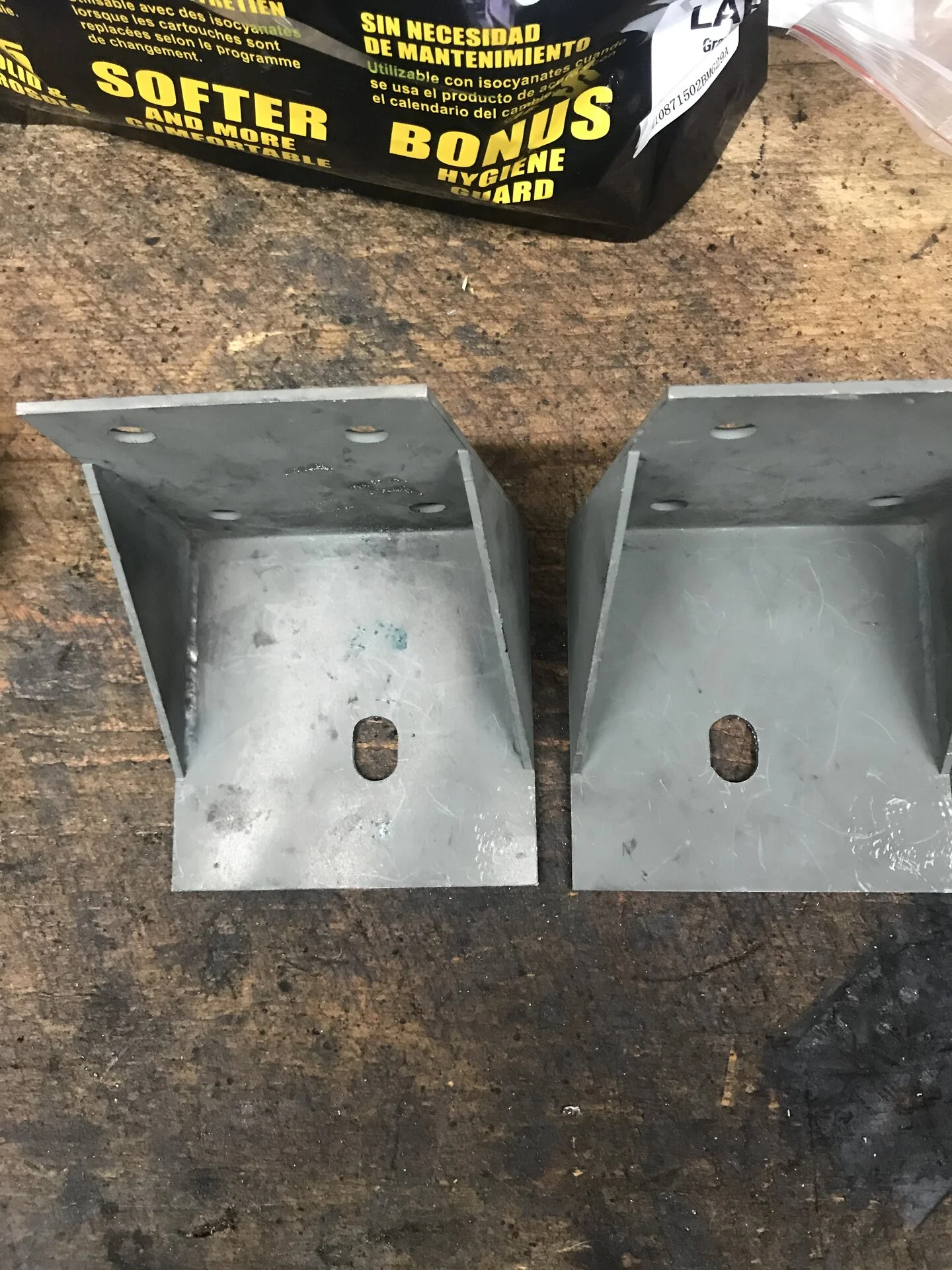

This is what I ended up with. Landan confirmed this wouldn’t compromise the effectiveness of the reinforcements.
