Well here are some pics that I have since my website is not done yet, enjoy.
Engine specs:
Its a Dart 8.2 based 331 w/ 9:1 compression. All forged internals (Scat 4340 Crank and H-beam Rods, Probe Dished Pistons), Clevite 77 bearings, Total seal classic race fittings, SFI Balancer, SFI Flex plate @ 28 ounces, Cometic Head gaskets, 7qrt Canton rear sump Drag pan, AFR 185's (ported), Trick Flow R upper and lower (ported), Custom grind Turbo cam. Injector's: Flow matched 72lb's.
Dart block w/ Cometic head gaskets:

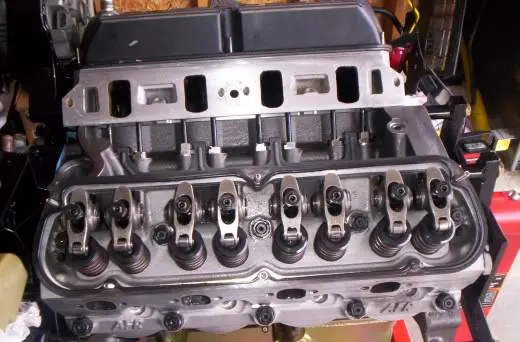

Heads with rockers installed:

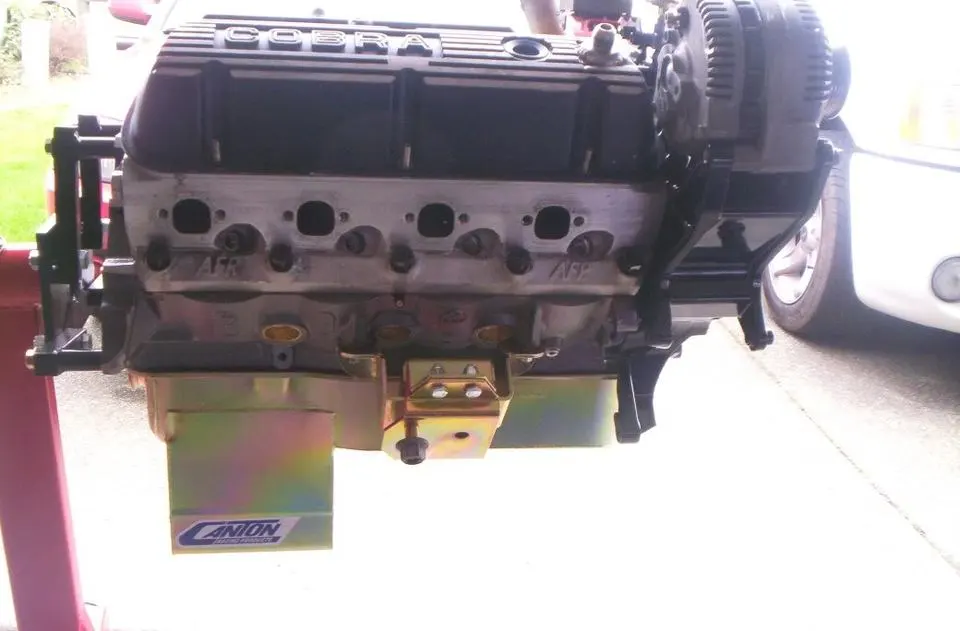

Side engine view:
Front engine view:

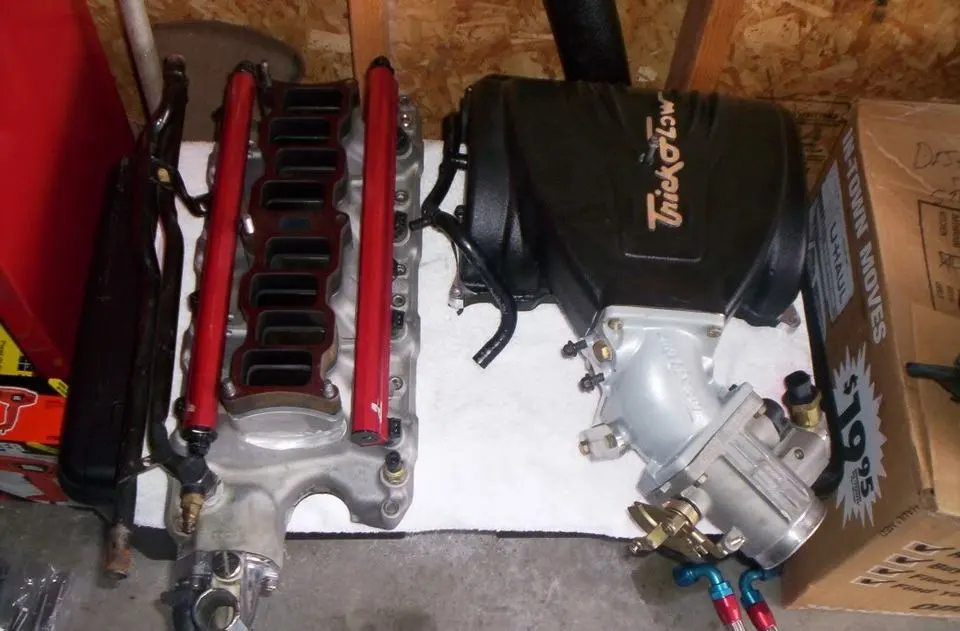

Upper and Lower Trick Flow R intake:
SFI Balancer and belt tensioner waiting to go on:

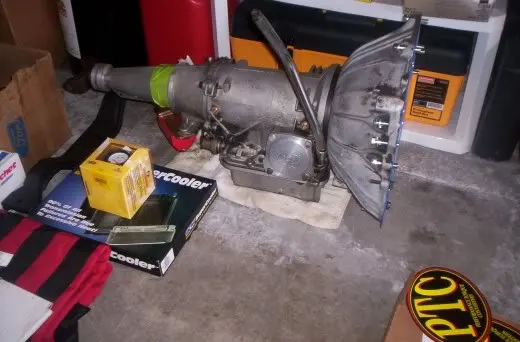

Built C-4 to handle all the ponies:
Won't miss any gears with this shifter :
Custom PTC converter, just arrived today:

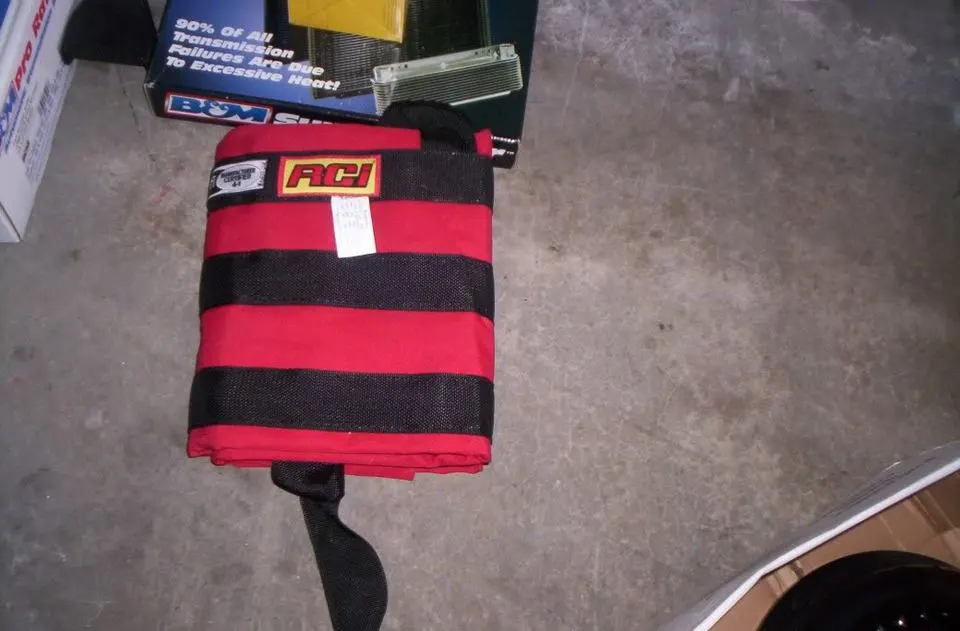

SFI Trans blanket, to save my feet:

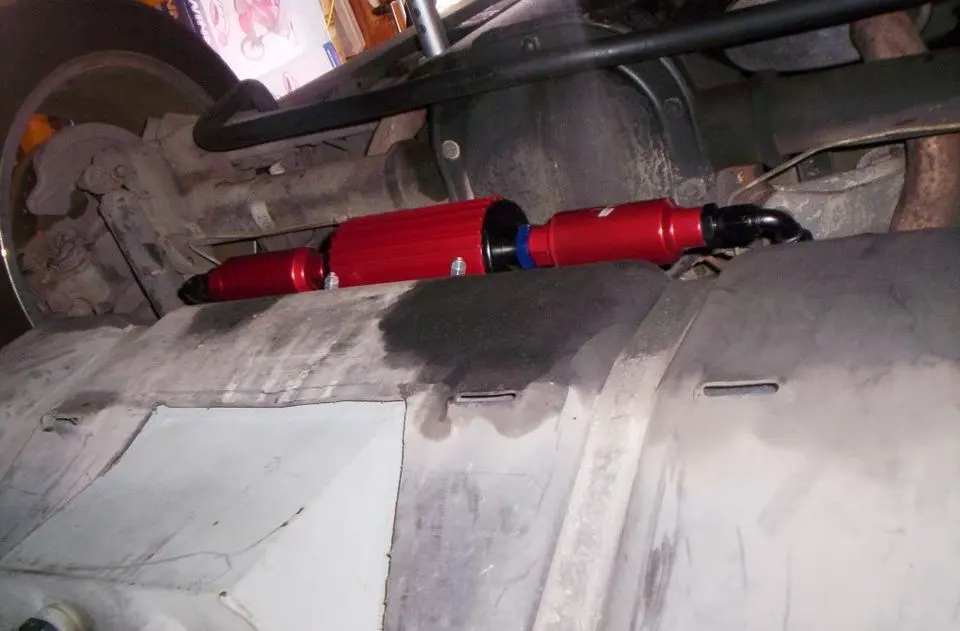

Fuel system:
F.A.S.T. B2B system, to conrtol everything:
I have more pics, but this should do for now. Soon as I get the Engine and Tranny bolted into the car, then off to Turbo Technology for its custom SN94-95 Race kit. Will get pics of that during the build process for everyone.
Thanks for looking,
Will
Engine specs:
Its a Dart 8.2 based 331 w/ 9:1 compression. All forged internals (Scat 4340 Crank and H-beam Rods, Probe Dished Pistons), Clevite 77 bearings, Total seal classic race fittings, SFI Balancer, SFI Flex plate @ 28 ounces, Cometic Head gaskets, 7qrt Canton rear sump Drag pan, AFR 185's (ported), Trick Flow R upper and lower (ported), Custom grind Turbo cam. Injector's: Flow matched 72lb's.

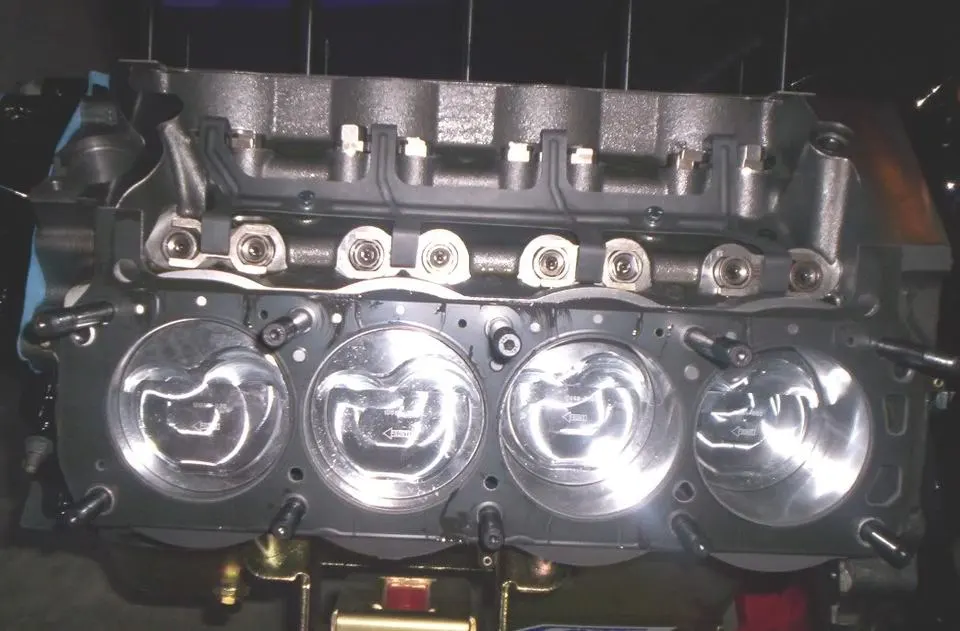

Dart block w/ Cometic head gaskets:
Heads with rockers installed:
Side engine view:

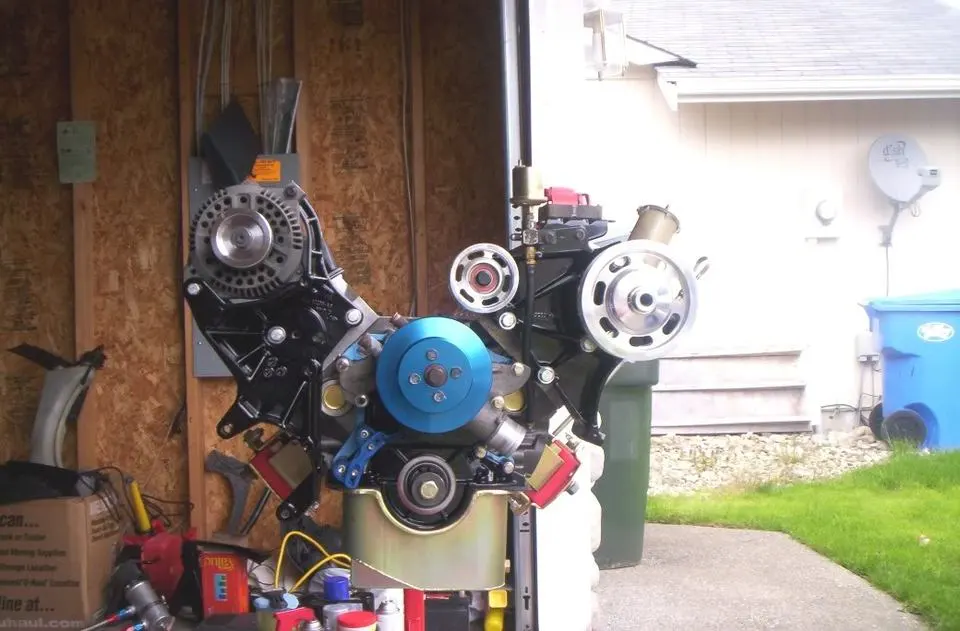

Front engine view:
Upper and Lower Trick Flow R intake:

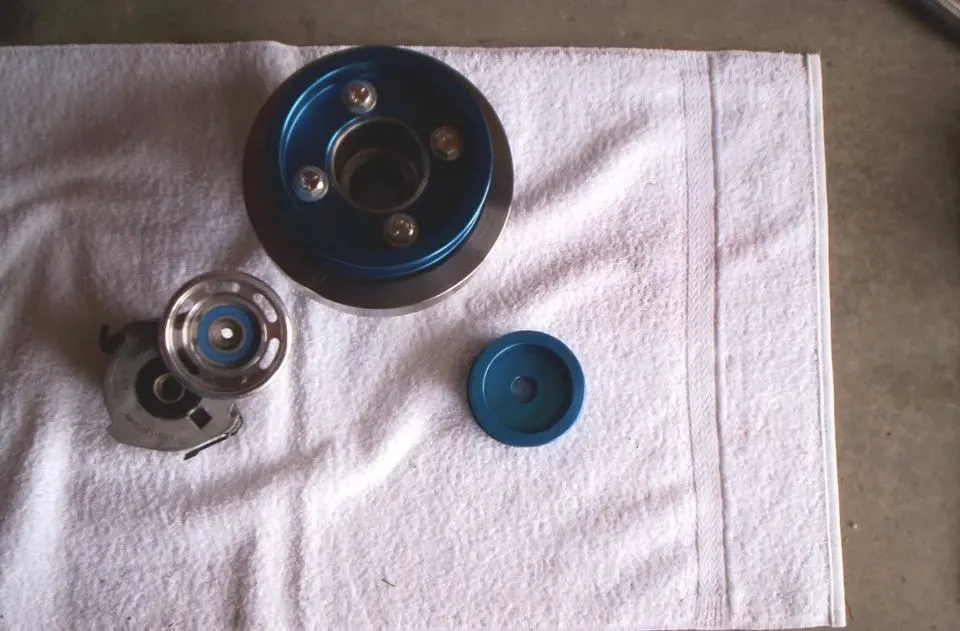

SFI Balancer and belt tensioner waiting to go on:
Built C-4 to handle all the ponies:

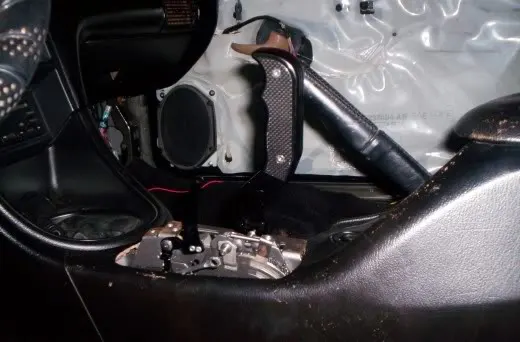

Won't miss any gears with this shifter :

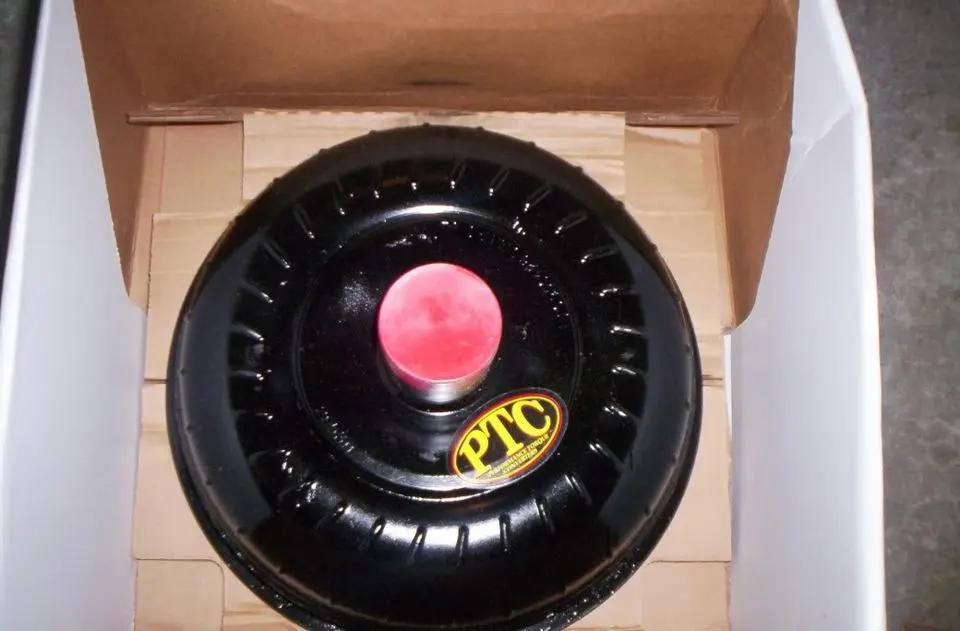

Custom PTC converter, just arrived today:
SFI Trans blanket, to save my feet:

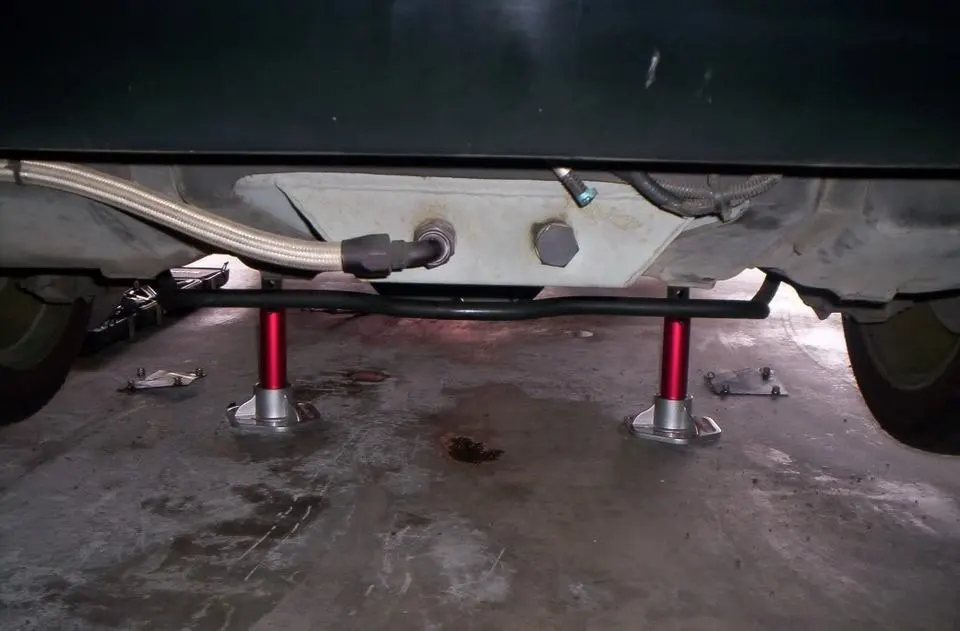

Fuel system:

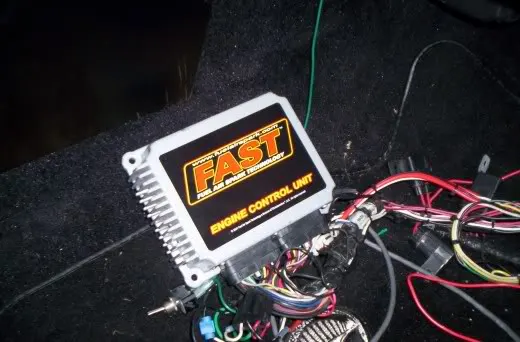

F.A.S.T. B2B system, to conrtol everything:
I have more pics, but this should do for now. Soon as I get the Engine and Tranny bolted into the car, then off to Turbo Technology for its custom SN94-95 Race kit. Will get pics of that during the build process for everyone.
Thanks for looking,
Will
