I think I read that you do your own paint work. Is that correct? I'm thinking we want to learn your techniques :D I could stare at the finish on that S281 wing all day.

  • Sponsors(?)


95steedamustang

10 Year Member
Apr 22, 2009
914
1,043
124
East TN
No kidding! If it didnt hold so much sentimental value for him, I would have offered a premium penny to put it on my sapphire blue stang!
Thanks and Yes I will be detailing all my body and paint work. I really hate not to use the factory Cobra spoiler, but I want to use any part I can from my old car.

Trying to get caught up on where I am currently.

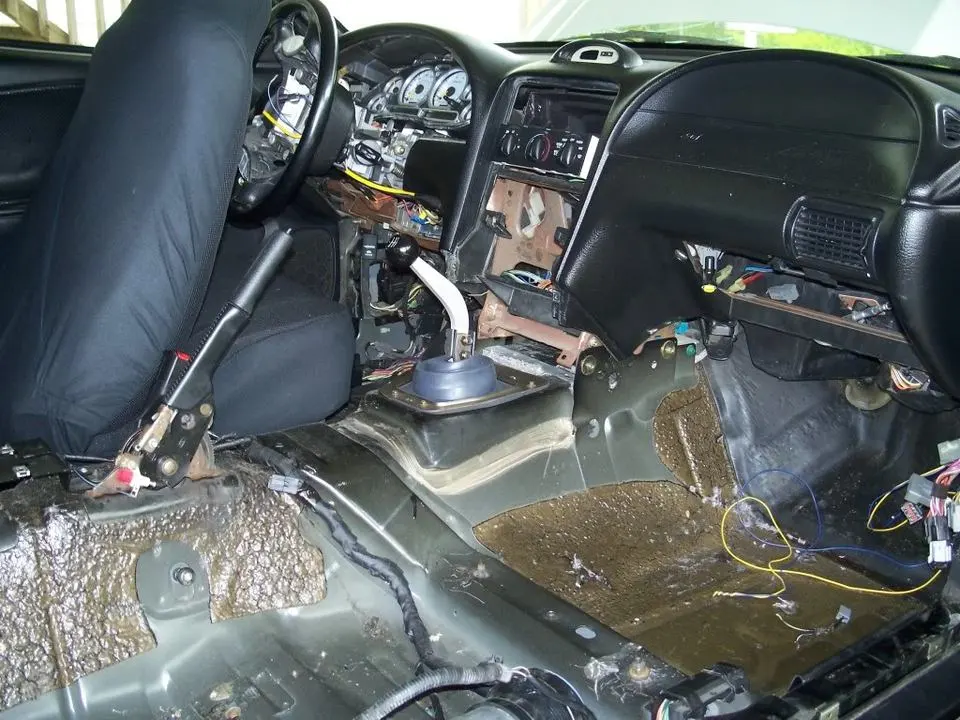

Still in May 2010 Pulled the interior

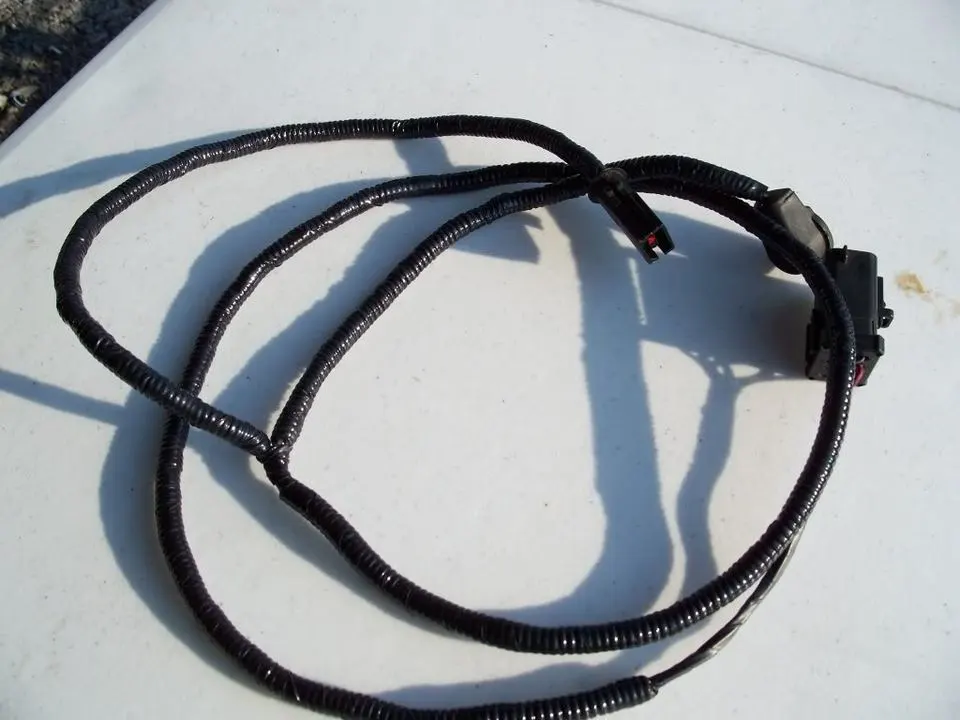

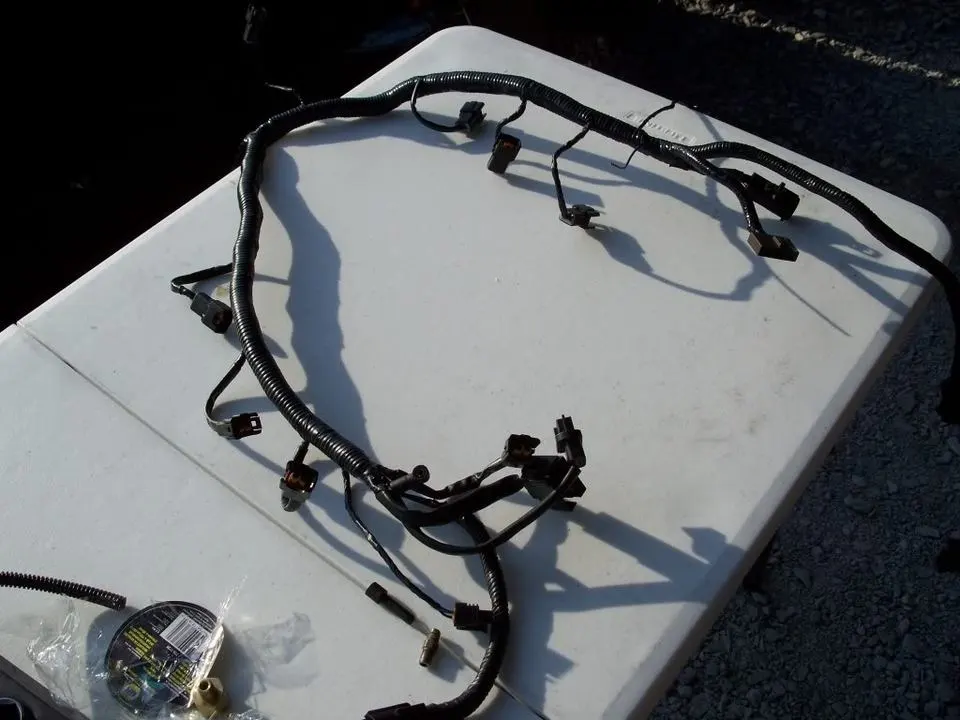

Re wrapped and got rid of the wires I didnt need

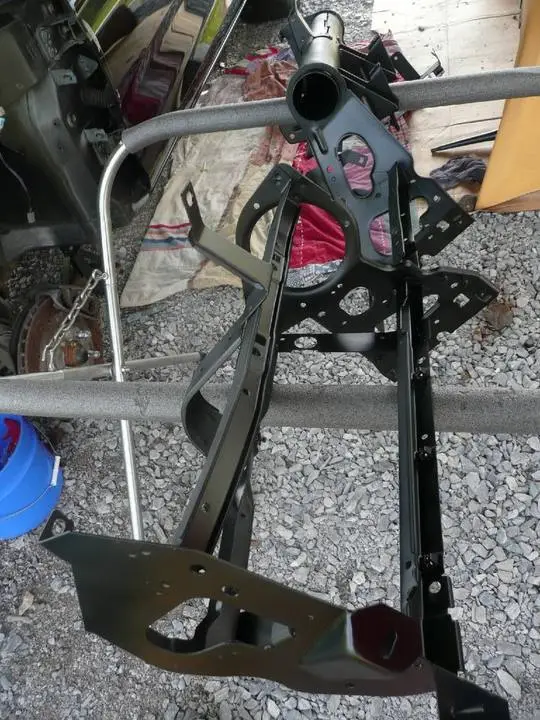

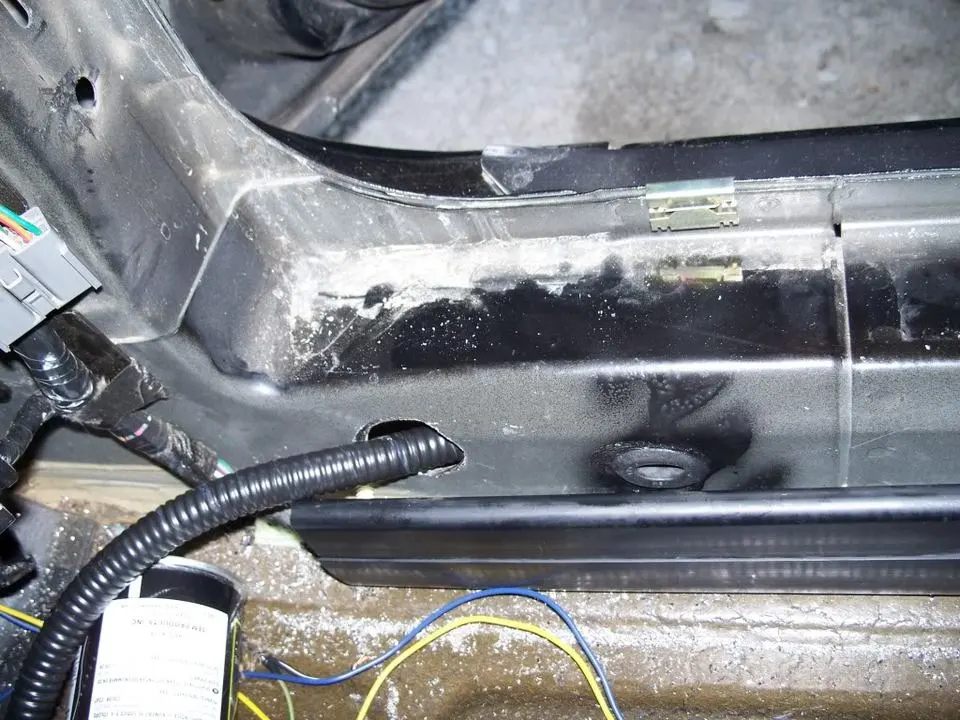

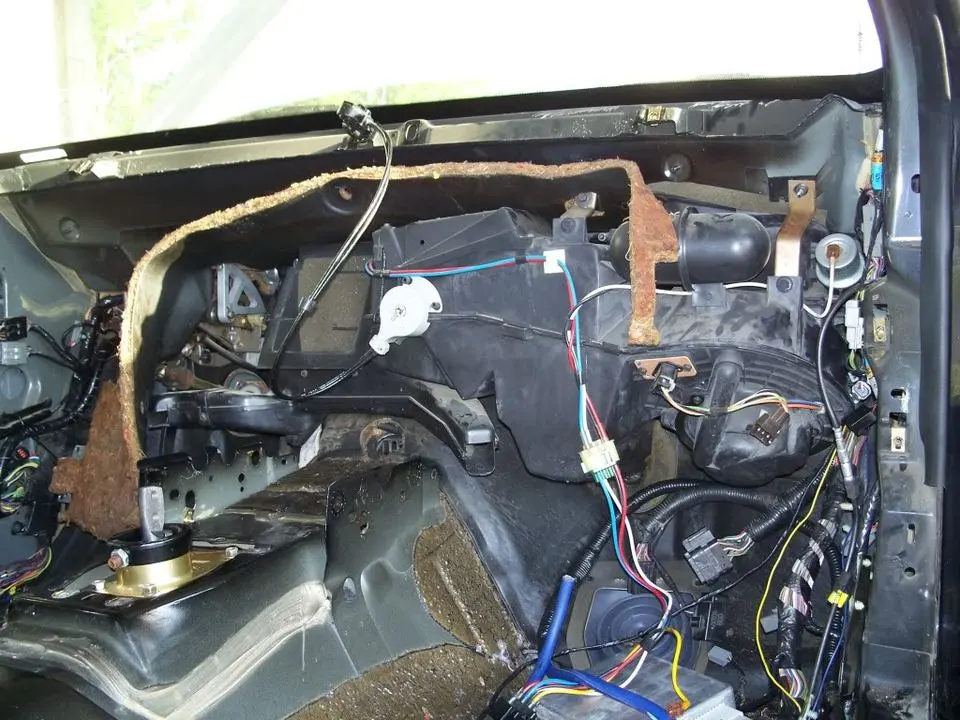

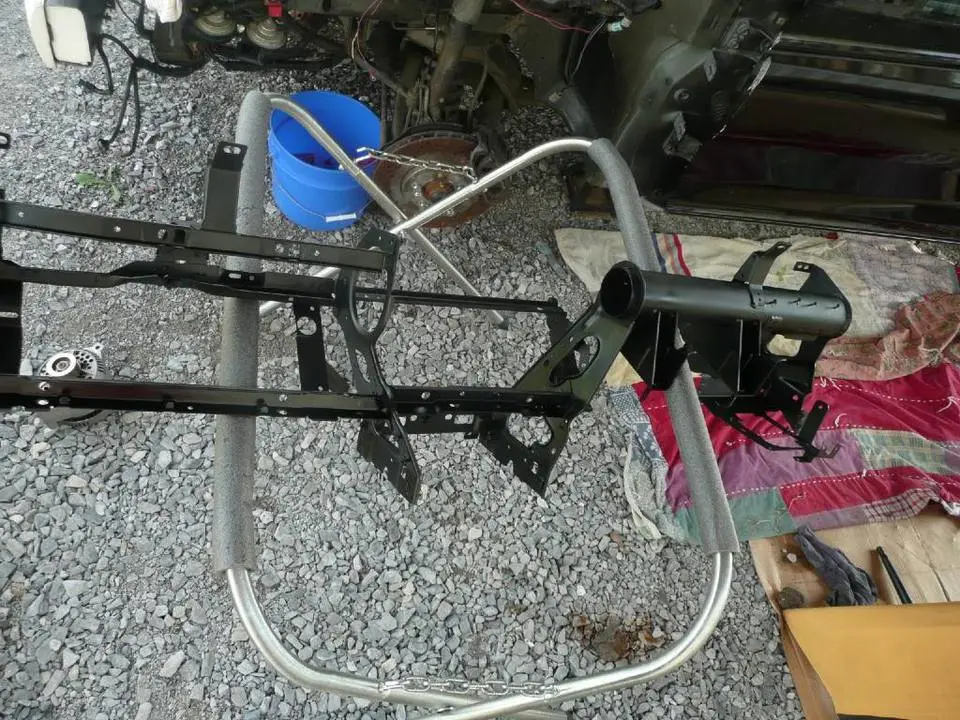

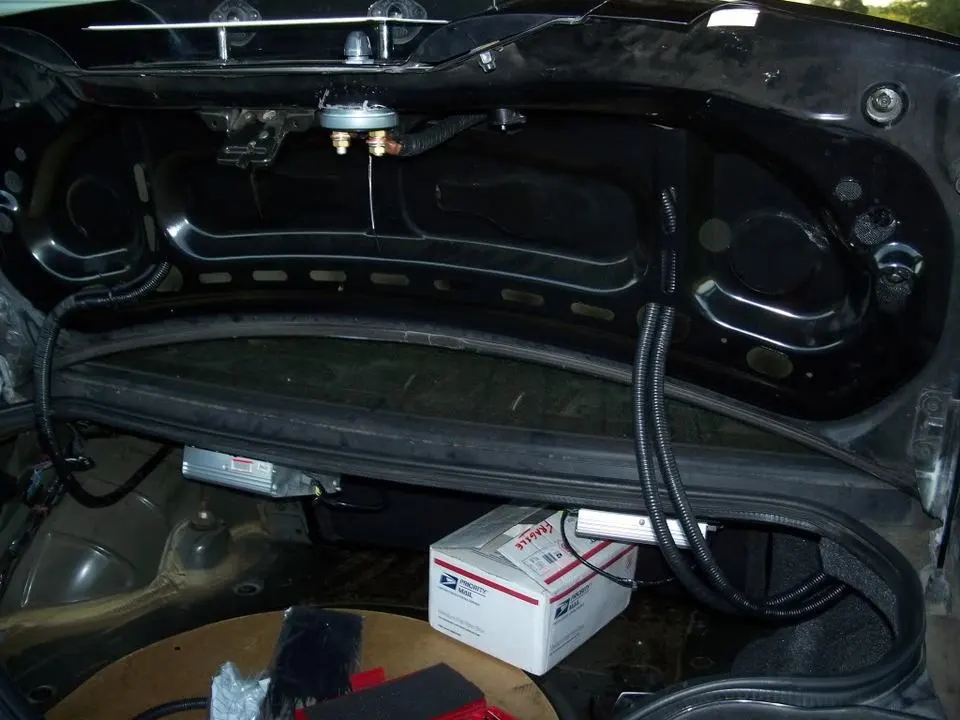

Pulled the dash ran my wire behind and cut a 2" hole to run them out the tunnel.

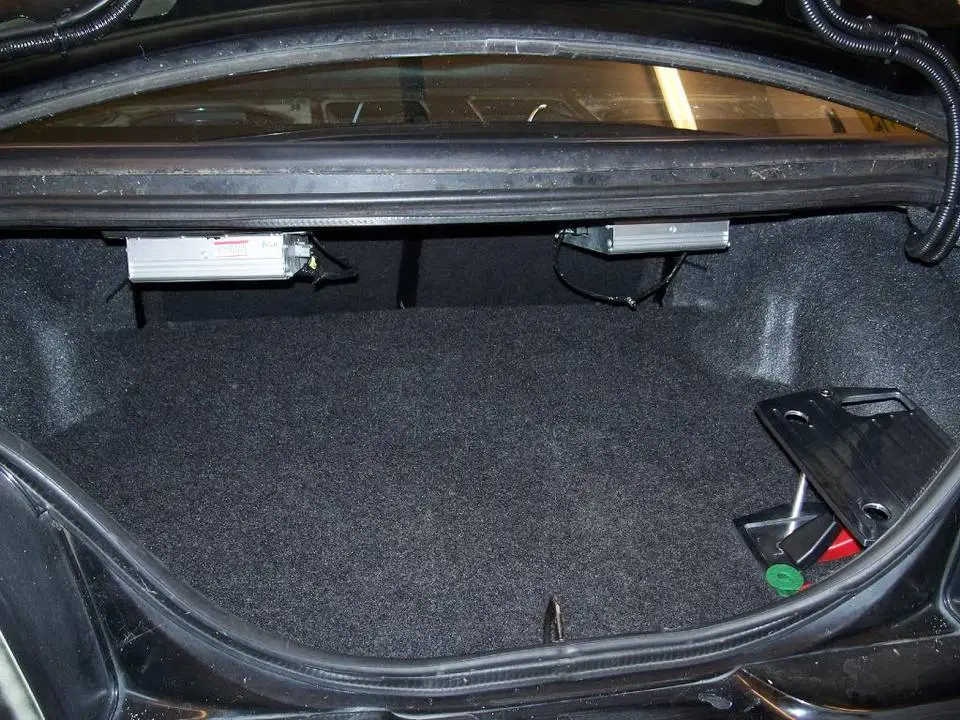

Ran my battery cable and alternator through the channel.

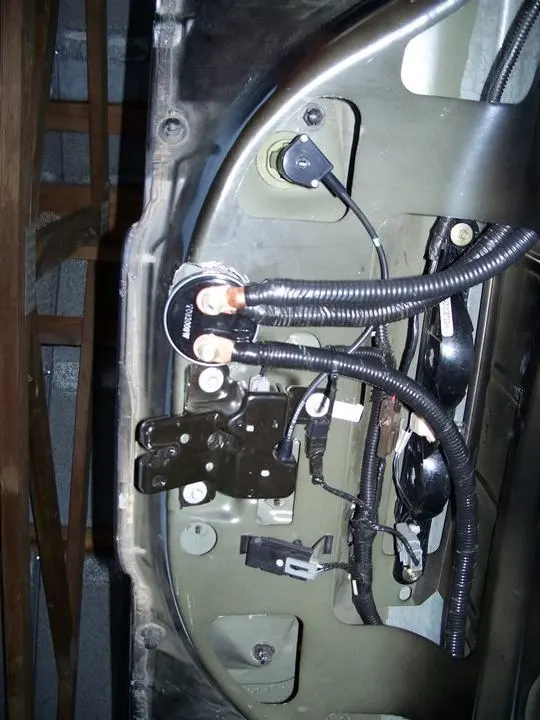

To the kill switch



95steedamustang

10 Year Member
Apr 22, 2009
914
1,043
124
East TN

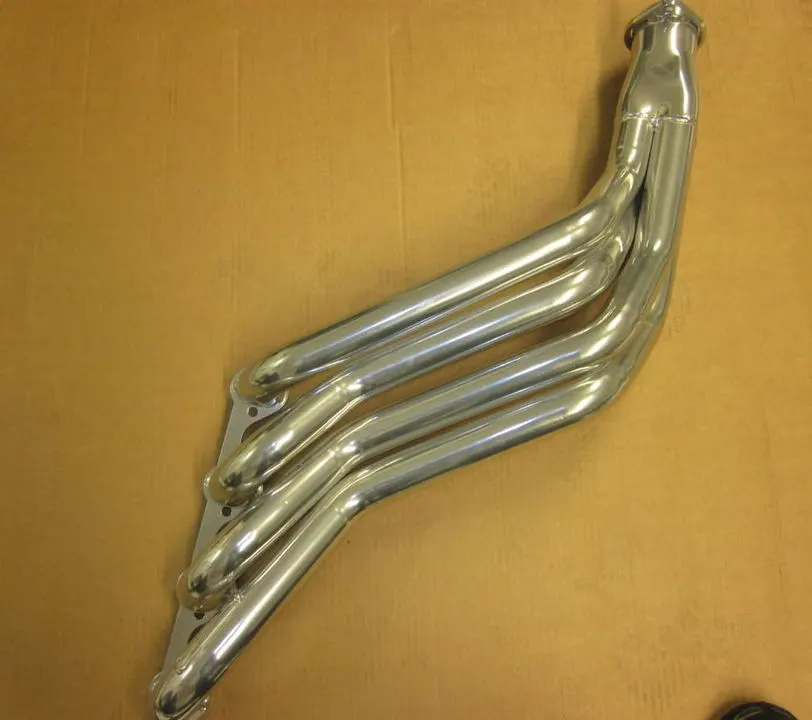

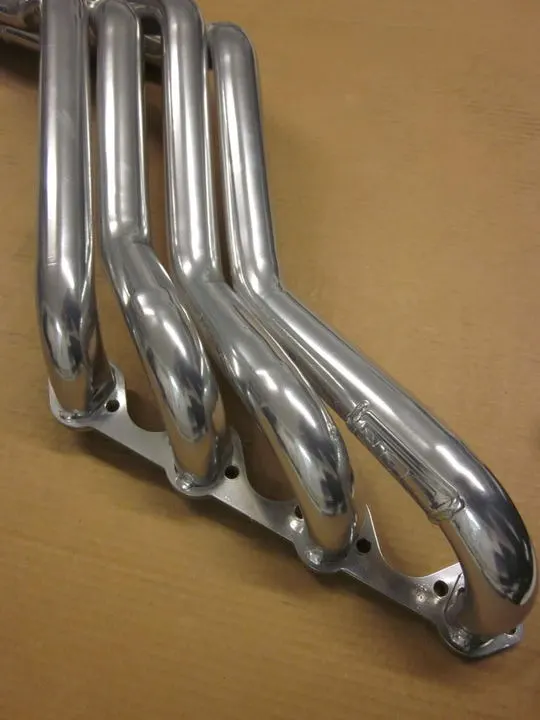

Still in May of last year, I began restoring some of my parts that I pulled off my old car. So here are the BBK 1 3/4 long tube headers.

I make the mistake of getting chrome to begin with. Turned as soon as the motor heated up the first time.

So this time around I milled and ported out the openings to match the new heads I plan on using.

Blasted them and coated in ceramic. I think they'll work on the new car.


Last edited:

Venom351R

Founding Member
Apr 27, 2002
4,548
38
98
42
MAINE
Thats great progress on the new Cobra and should be an awesome build when its all done. Congrats on picking up and starting over with another car and not just giving up.


95steedamustang

10 Year Member
Apr 22, 2009
914
1,043
124
East TN
Thats great progress on the new Cobra and should be an awesome build when its all done. Congrats on picking up and starting over with another car and not just giving up.
Thanks!

I finished May by finishing up the wiring at least thats one job behind me.

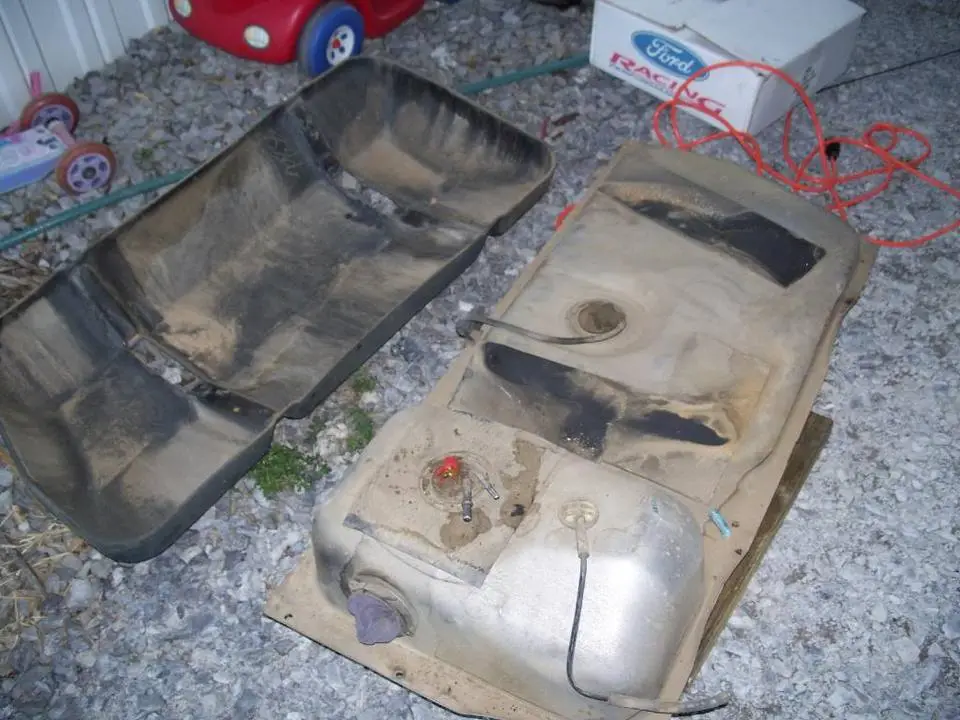

Also replaced the stock fuel pump with a Walbro 255 unit and added a Kenne Bell 40 amp boost a pump.

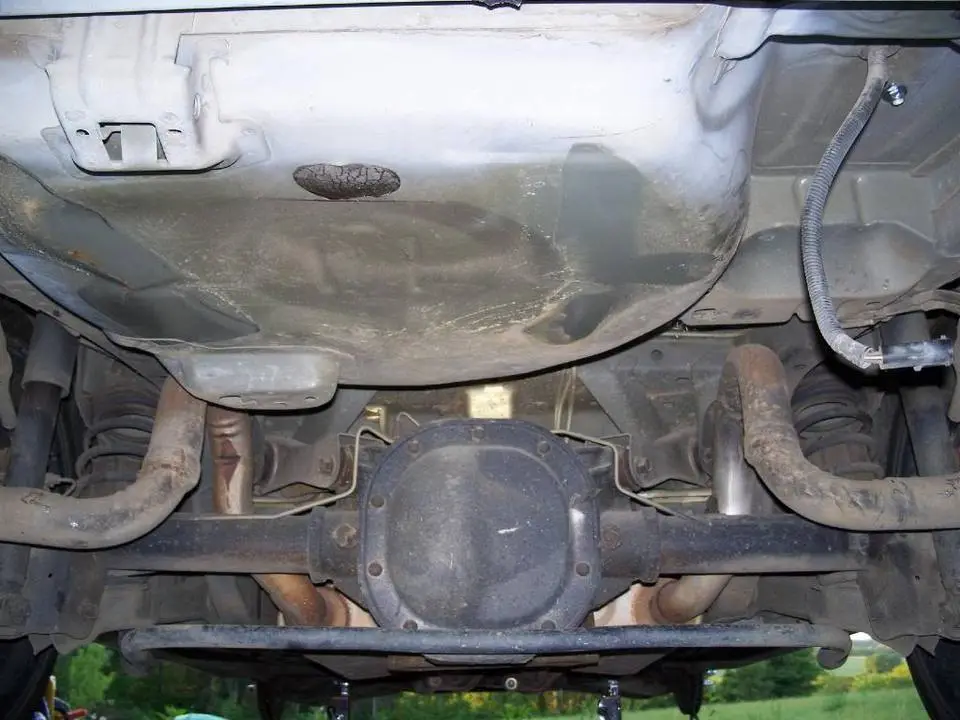

Got some cleaning to do on the under carriage but at least it rust free. Had to deal with too many pf those over the years.

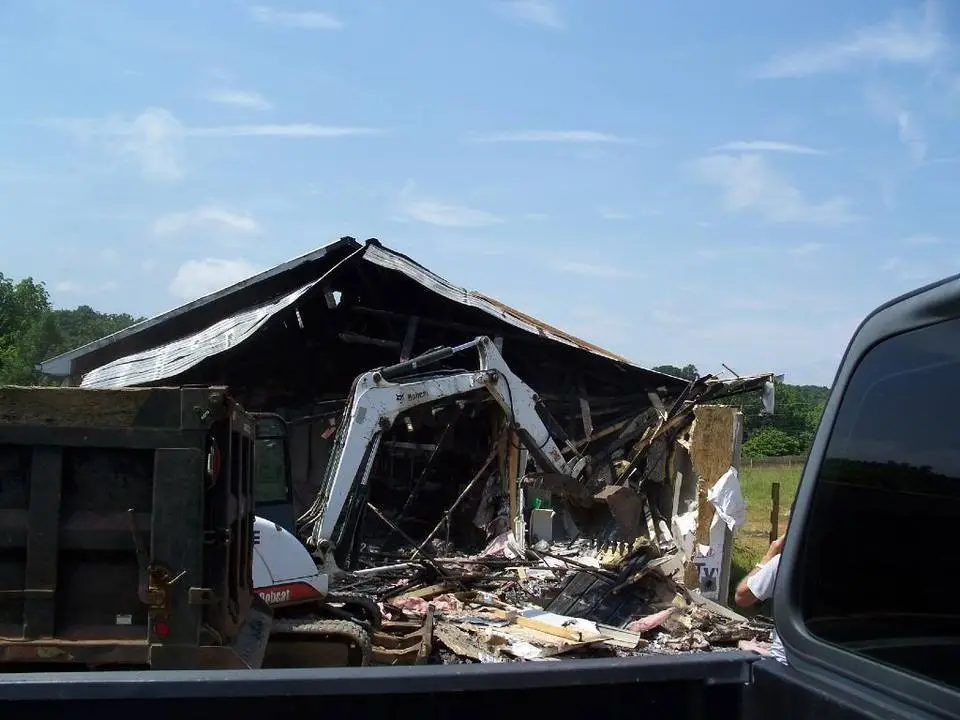

We ending May 2010 tearing down and hauling off the old house.

Kind of sad:(


95steedamustang

10 Year Member
Apr 22, 2009
914
1,043
124
East TN
June-

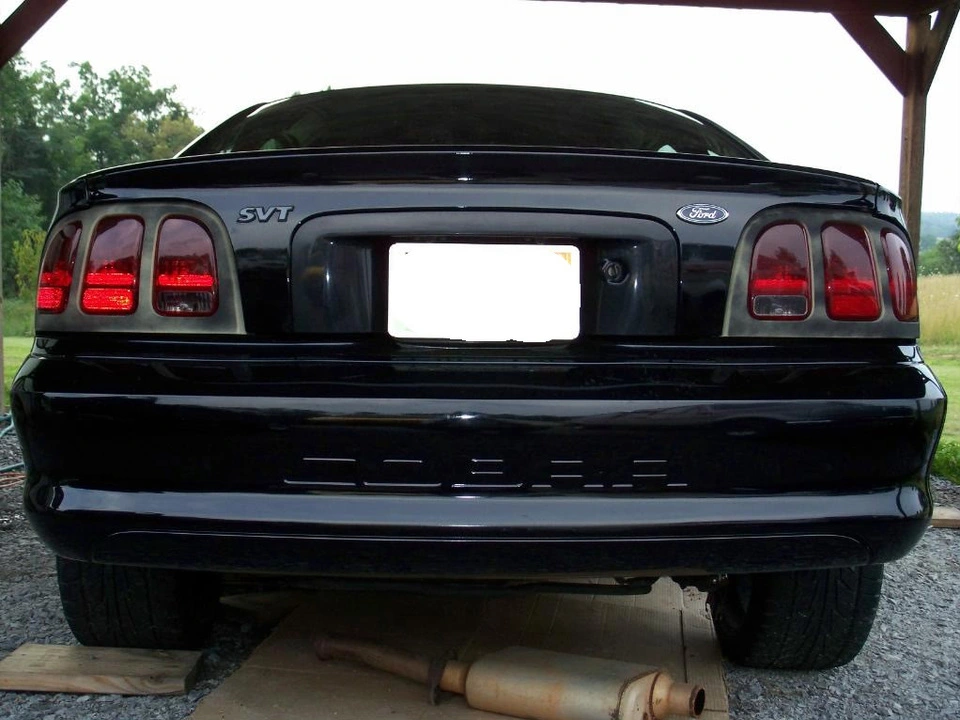

Found a mint rear bumper and fitted it to the car. Love a good OEM piece.
Picked it up form MPS in GA and they also donated a mint headliner from the same car.

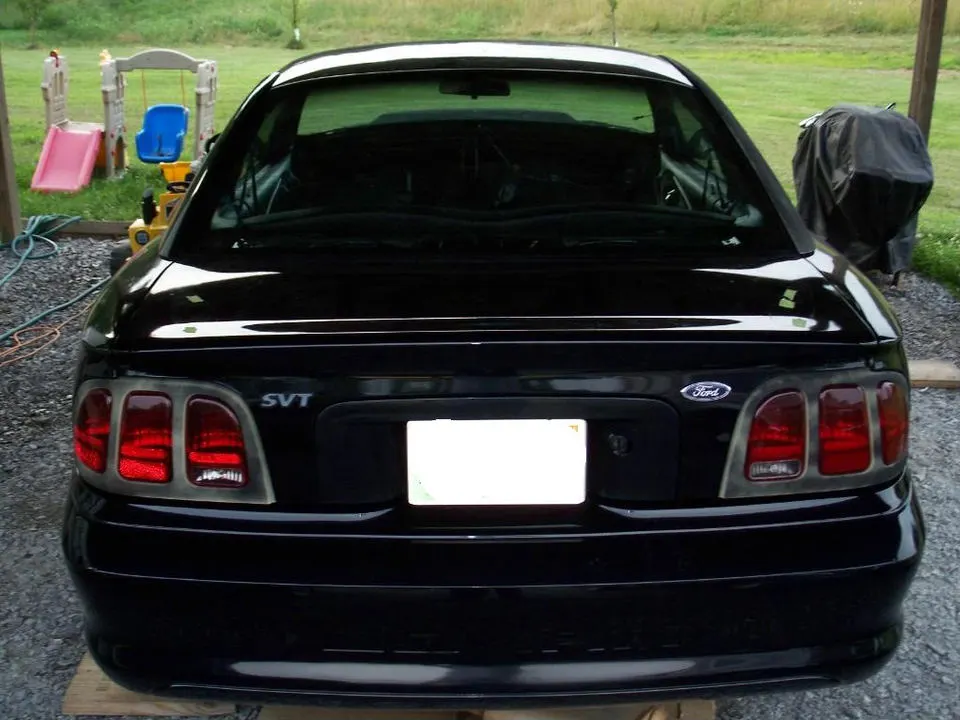

Also picked up the tail lights to match. went ahead and sanded them down, primer, guide coat.

I'm going to keep the original tail lights and harness, paint them up too and just switch out from time to time.

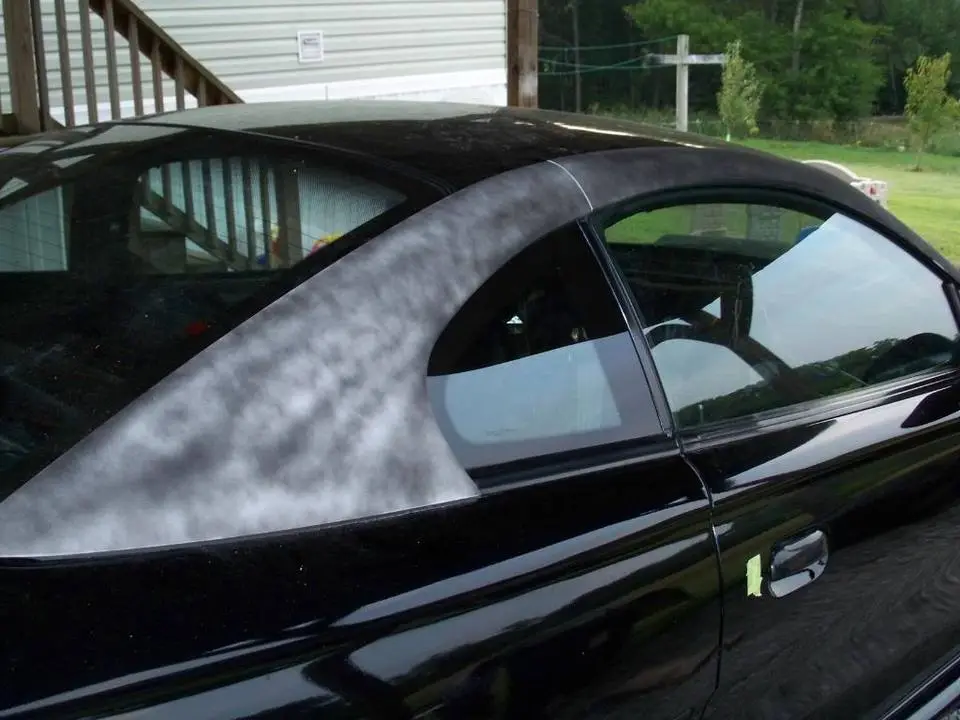

Next I found new OEM sail panel and roof rail molding and got them fitted and put a guide coat on for the initial blocking.

The originals were removed for a repaint and then overtightened resulting in numerous stripped bolt holes.


95steedamustang

10 Year Member
Apr 22, 2009
914
1,043
124
East TN
still in June

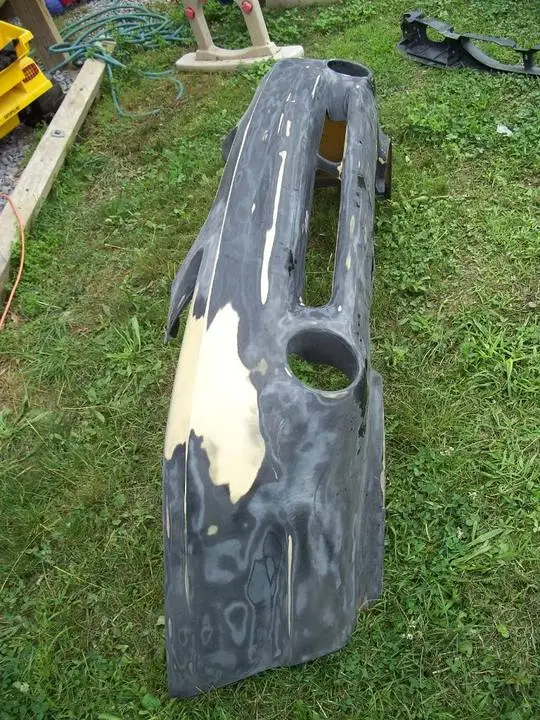

Started the body work on the front end beginning with the bumper. It was spider cracking on the area I completely stripped. I start by going over it with a DA then moved to 180 by hand.

More hand sanding and flexible filler for the plate hole indentions.

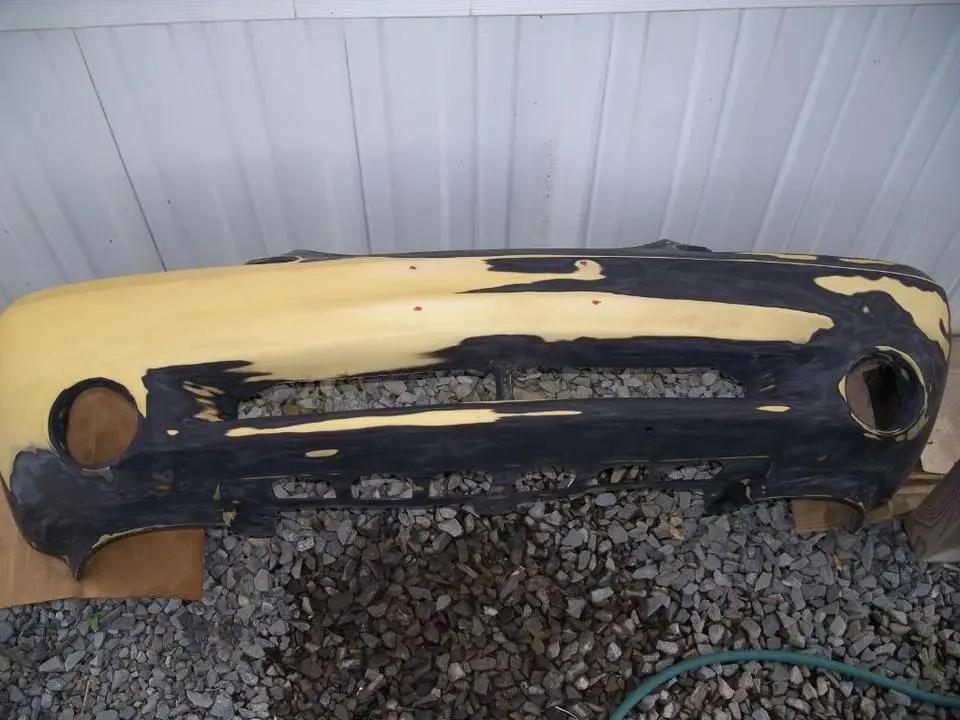

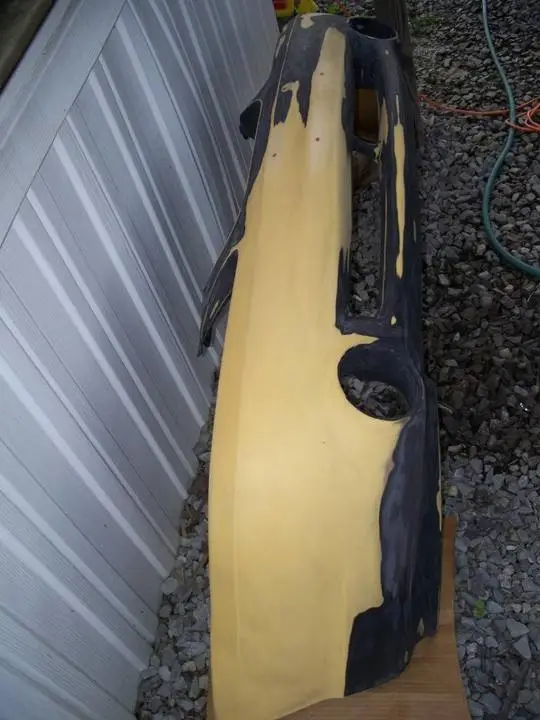

You can see where I'm going with this after 22 hours invested. I'm just going to strip the whole thing. Do I have to...No...Its was really ready to prime but I want to go the extra mile with this one.

Finished holes off


95steedamustang

10 Year Member
Apr 22, 2009
914
1,043
124
East TN
Where did you locate the Sail panel? I need 1.
Got it off ebay but the guy originally bought it from Late model restroation

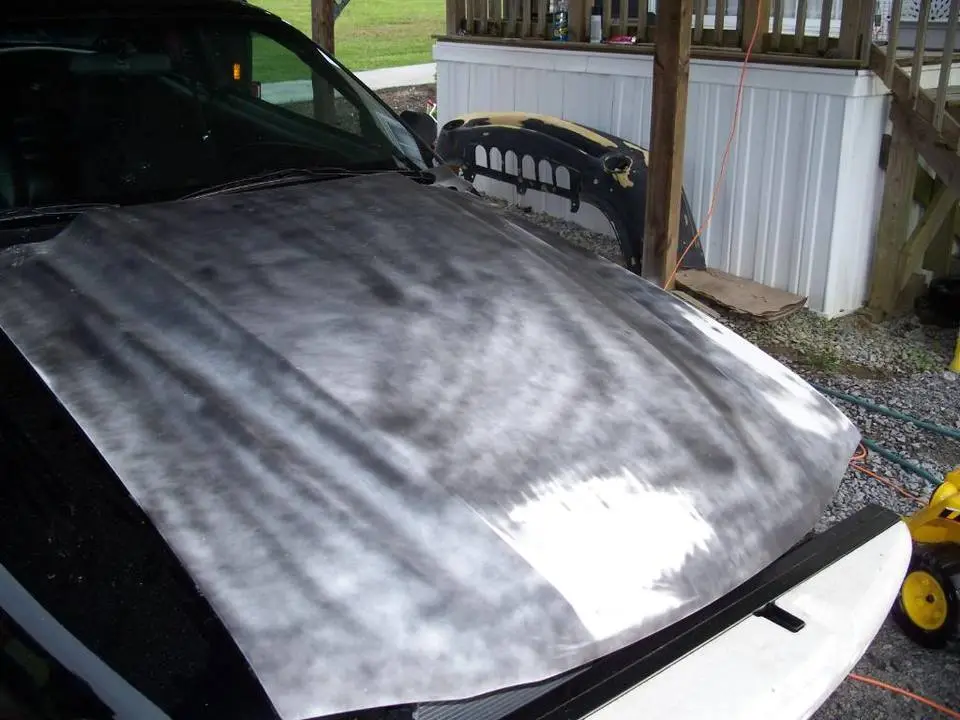

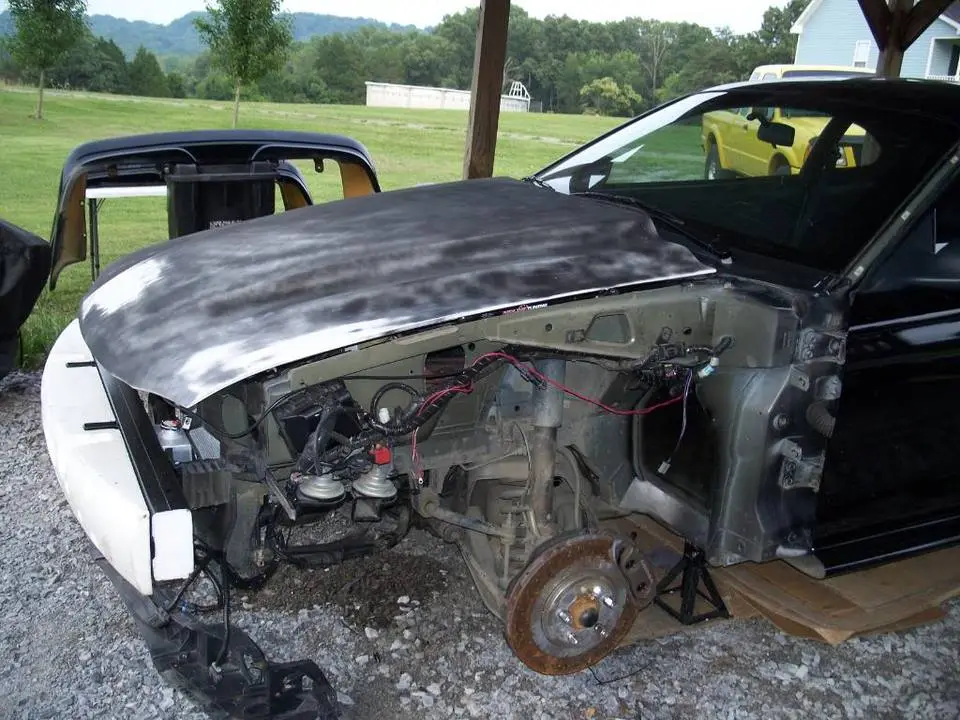

Onto the Cervini Cobra R hood.

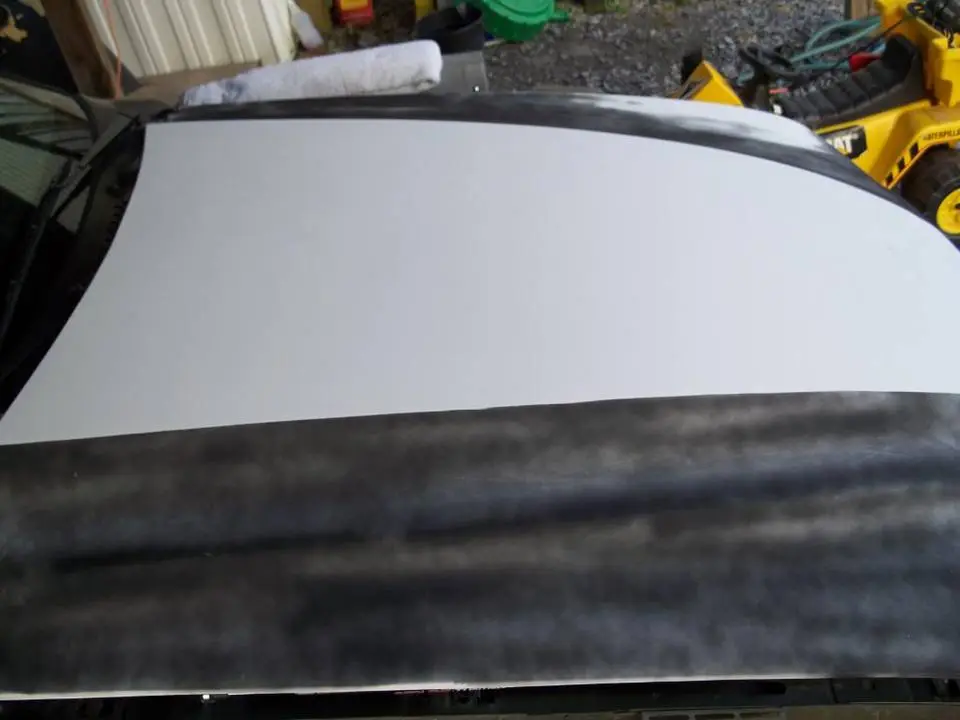

After baking it in the sun for a couple of months, I guide coated it and blocked it down with 180. I did this twice.




SableSal

Member
Sep 17, 2009
295
3
19
Fresno, Californ-I-A
Looks awesome man! When I saw the pics of the garage burnt down, it literally broke my heart. Glad you're getting back up! I love build threads, and this one gives me enjoyment! Keep up the great work!


95BlueStallion

Drop into my dm’s gurrrrrl
10 Year Member
Feb 22, 2007
5,711
3,318
214
Cedar Rapids, Iowa
www.goodreads.com
This thread is great because the updates keep coming. Its nice that you have done a lot of work, and we arent sitting here waiting for you to get it done. Very entertaining, plus you got us hooked on a sympathic note with what happened to your home and past rides.


95steedamustang

10 Year Member
Apr 22, 2009
914
1,043
124
East TN
Well No car updates for July, August, September and October because we were building our house and I won't bore everyone with house pictures, but since I posted pics of my old burnt garage, seems only right to post a couple of the new garages.
View attachment 194797

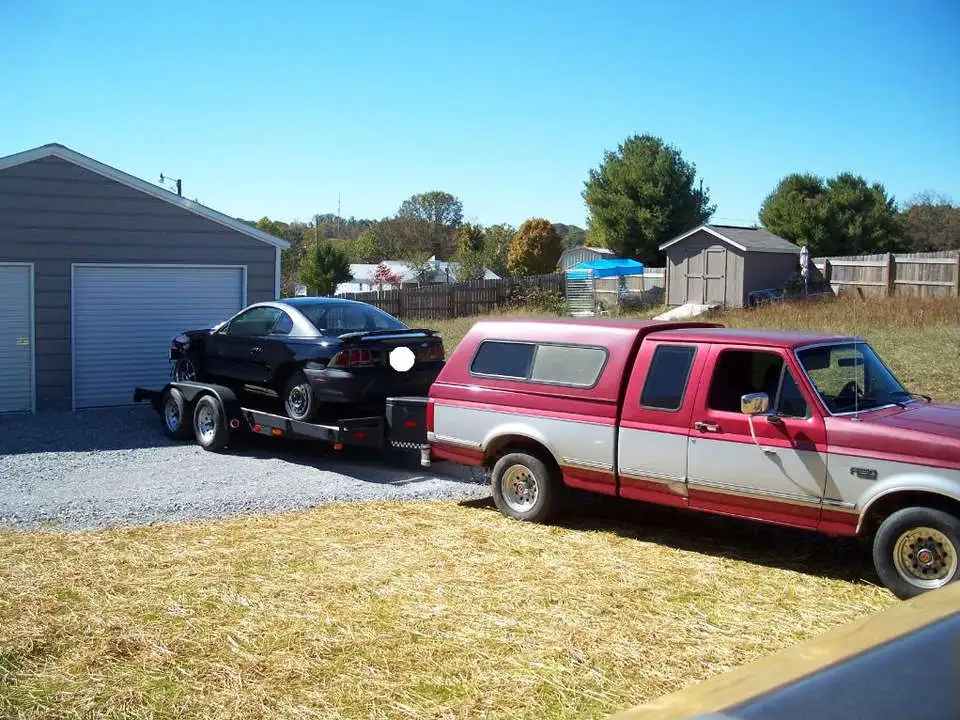

The 94 Comes home and now the serious work can begin...

Whether its a car or a house if your going to rebuild it, might as well do it right
