Black vs Grey TFI Module ???

Discussion in 'Fox 5.0 Mustang Tech' started by 90topdown, Oct 15, 2008.


  1. 90topdown

    90topdown New Member

    Joined:
    Feb 17, 2006
    Messages:
    141
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Philadelphia, PA
    My car dies intermitenly when it is warm which is a classic bad TFI module symptom. The strange thing is that it will start right up and run for a few minutes. You don't have to wait for it to cool off.

    I pulled codes and all I got was a 94,44 which are part of the smog delete and unrelated.

    Here is the funny thing. The original dizzy on the car has a black Wells TFI module. I just put a new motor in the car. I had a spare distributor that I used for the assembly of the new motor which I just left in it. This distributor has a grey Motorcraft TFI module.

    I remember Tmoss saying that interchanging the black and grey modules can cause driveability problems. Is that what is happening here??

    Car is a 90 5-spd with a 93 Cobra X3Z EEC in it. 24 lb inj and Cobra MAF and TB.

    Which TFI module should I have in it?? Black or Grey????

    #1
  2. 89lxsport50

    89lxsport50 Member

    Joined:
    Feb 25, 2003
    Messages:
    572
    Likes Received:
    3
    Trophy Points:
    19
    Location:
    Franklin Tennessee
    I would stick with Motorcraft. The Wells brand was sold by Autozone in the past.

    #2
  3. strtrcr50

    strtrcr50 New Member

    Joined:
    Jun 22, 2006
    Messages:
    2,559
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    Previously from Dirty Jerzey exit 7a
    http://megasquirt.sourceforge.net/extra/doc/ford-Ignition-tfi-edit.doc
    There is your difference between black and gray modules. To the best of my knowledge, it's supposed to be gray. That's what I have on mine.

    #3
  4. HISSIN50

    HISSIN50 "How long does it take to get help in here? SN Certified Technician

    Joined:
    Nov 30, 1999
    Messages:
    31,150
    Likes Received:
    14
    Trophy Points:
    79
    Agreed. Grey should have been the OEM color.

    #4
  5. 90topdown

    90topdown New Member

    Joined:
    Feb 17, 2006
    Messages:
    141
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Philadelphia, PA
    WoW, great article strtrcr50. I will have to digest it.

    Thanks,

    In the mean time, I will get the grey module tested and see what happens.

    #5
  6. tmoss

    tmoss Gettin Wired Founding Member

    Joined:
    Jun 28, 2001
    Messages:
    7,120
    Likes Received:
    2
    Trophy Points:
    78
    Location:
    Saint Louis, MO
    Most technicians who deal with Ford drivability and no-start problems have become very familiar with the Thick Film Ignition (TFI) system. Ford started using the six-pin TFI module with the EEC-IV computer system in 1983, and for years it remained basically unchanged.

    The early TFI system, which Ford calls the "Push Start" TFI system, uses a gray TFI module. Originally, the module was mounted on the distributor. In the late '80s, Ford began to relocate it away from the distributor on some vehicles to provide better protection from the effects of engine heat, but system operation remained the same. It uses a Hall effect pickup (stator) in the distributor, which generates a battery voltage, 50% duty cycle square wave, called the PIP signal, to the EEC-IV PCM and the TFI module. The PCM processes this signal and sends out another battery voltage, 50% duty cycle square wave, called the SPOUT signal, to the TFI module. As long as the TFI module is receiving a SPOUT signal, it will fire the coil at the rising edge of that signal (except during engine cranking, when SPOUT is ignored) and the vehicle will run with the amount of timing advance commanded by the computer. If the TFI module does not receive the SPOUT signal, it will fire the coil at the rising edge of the PIP signal, and the vehicle will run at base timing. This is true on all TFI systems.

    Ignition dwell with the Push Start (gray module) system is controlled by the TFI module alone, and increases with engine rpm. The Ignition Diagnostic Monitor (IDM) signal on a Push Start TFI system comes from the coil negative circuit and is filtered through a 22k ohm resistor to pin #4 on the EEC-IV computer. The computer monitors this circuit to verify a coil firing for each PIP signal, and sets codes if it sees missing or erratic signals. Another feature that is unique to the Push Start TFI system is the start input on pin #4 of the module connector. This is wired into the starter relay trigger circuit, and signals the TFI module that the engine is cranking. When the module sees battery voltage on this circuit, the SPOUT signal is ignored.

    In the early '90s, Ford began using a different TFI system on certain vehicles -- the Computer Controlled Dwell (CCD) TFI system. The TFI module on CCD TFI is always black in color. There are a few major differences between the two systems. As the name implies, with the CCD system, the computer controls primary dwell. The CCD TFI module still ungrounds (fires) the coil at the rising edge of the SPOUT signal, but now the falling edge of the SPOUT signal (which had no meaning to the Push Start TFI module) is used by the CCD TFI module to ground the coil. The PIP signal remains the same 50% duty cycle square wave, but SPOUT signal duty cycle varies according to how much dwell is desired by the computer.

    Another major difference between the two systems is the IDM circuit. Pin #4 on the CCD TFI module, which was the start circuit input on the Push Start TFI module, is now the IDM signal, sent directly from the TFI module to pin #4 on the EEC-IV computer. This signal is still a filtered (low voltage) version of the ignition primary waveform, but is filtered internally in the TFI module rather than through an external resistor. There isn't any start circuit input to the CCD TFI module; the module infers engine cranking from a low rpm input from the PIP signal.
    Since these two TFI systems are so significantly different, yet so similar in appearance, parts application problems will inevitably occur. A gray Push Start TFI module will plug right into a CCD system, and vice versa. To make matters worse, parts books are often incorrect on TFI module applications! With the incorrect TFI module installed, the vehicle will run, but drivability and MIL (malfunction indicator lamp) problems will result. For instance, if a gray Push Start TFI module is installed in a CCD system, the computer will not be able to control ignition dwell, and the MIL will illuminate with memory codes for the IDM circuit set, as the gray TFI module is incapable of generating an IDM signal to the computer. If a black CCD TFI module is installed in a Push Start system, dwell will remain fixed, since the SPOUT signal duty cycle never changes. If in doubt about which TFI module belongs on a particular vehicle, consult the ignition system-wiring diagram for the vehicle. If the wire going to pin #4 on the EEC-IV computer comes directly from pin #4 of the TFI module, it is a CCD system. If not, it is a Push Start system.

    #6
  7. 90topdown

    90topdown New Member

    Joined:
    Feb 17, 2006
    Messages:
    141
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Philadelphia, PA
    Tom, excellent write-up!!

    Here is my question- Your 88-91 Mustang EEC wiring diagram shows Pin 4 EEC going directly to Pin 4 TFI which would indicate a black module

    Your 91-93 EEC wiring diagram shows Pin 4 EEC going to the coil and the IDM which would indicate a grey module.

    My car is a 90 which according to the wiring diagram should have a black module. But it has a 93 X3Z EEC in it. A 93 would be a grey module from the wiring diagram.

    I am just trying to ascertain what the correct TFI application is for the car. My hunch is that it should be the black CCD module since that is the way that the car is physically wired eventhough it has a 93 EEC in it.

    #7
  8. tmoss

    tmoss Gettin Wired Founding Member

    Joined:
    Jun 28, 2001
    Messages:
    7,120
    Likes Received:
    2
    Trophy Points:
    78
    Location:
    Saint Louis, MO
    To tell you the truth, I did not go back and check this against my wiring diagrams as they were done many years ago. I took diagrams from a well known book and color coded them as well as taking some from websites like Autozone.

    The last two sentances in the above write up say it all - you use the module that the car is wired for. Most have no problem with a mixup as they buy the same color as was on the distributor to start with - but that assumes it's all untouched factory wiring - something that a 4 cyl conversion or other transplant may not be.

    I will take a look at the 88-91 diagram as intuitively, you'd expact that to be a gray module - my 88 is. Keep something else in mind - I have made some corrections to the diagrams and my stuff is so widely used and shared, it's hard to know if you have the latest diagram.

    #8
  9. 90topdown

    90topdown New Member

    Joined:
    Feb 17, 2006
    Messages:
    141
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Philadelphia, PA
    So I take it that the TFI module should match the EEC and not the year of the car?

    In my case since I have a 93 EEC X3Z installed , Should I be using the grey module instead of the black module that was original to the car since it is a 90???

    #9
  10. tmoss

    tmoss Gettin Wired Founding Member

    Joined:
    Jun 28, 2001
    Messages:
    7,120
    Likes Received:
    2
    Trophy Points:
    78
    Location:
    Saint Louis, MO
    I can't tell you that from cyberspace - it depends on what came in the car originally and how it is wired - see above for what to check.

    #10
  11. 90topdown

    90topdown New Member

    Joined:
    Feb 17, 2006
    Messages:
    141
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Philadelphia, PA
    Update- I changed out the TFI module with a known good grey one. It seemed to idle a bit better. Took it out for a spin and it almost died twice before I got around the block. Came back home and pulled codes. Got a code 96 (secondary fuel pump circuit failure)

    Fuel pump and relay are brand new. Looks like I have a fuel pump wiring problem instead of an ignition problem,

    #11
  12. joel5.0

    joel5.0 New Member

    Joined:
    Jun 15, 2004
    Messages:
    434
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Puerto Rico

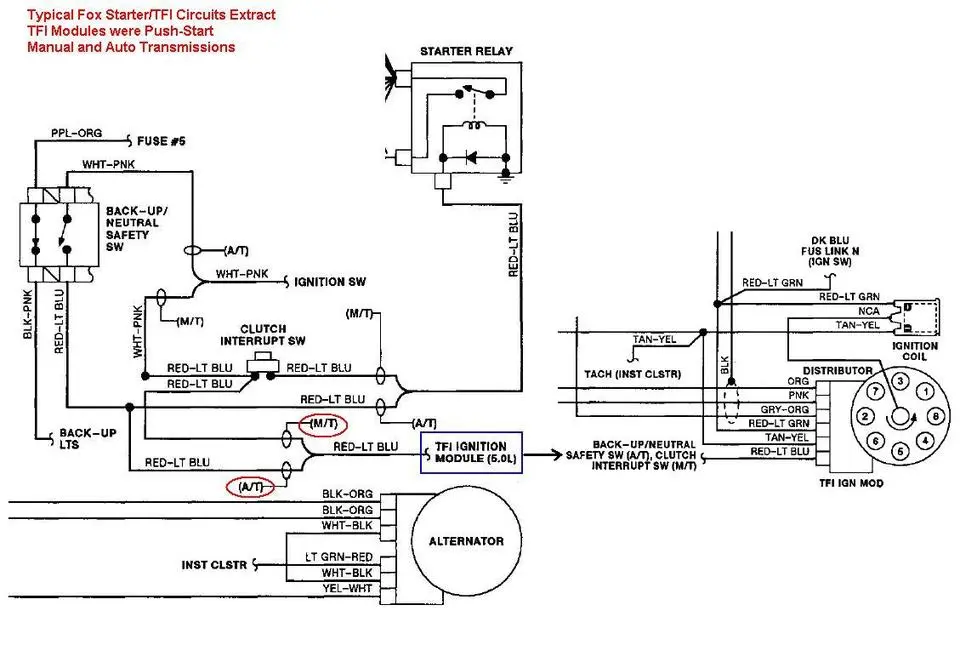

    All Fox Mustangs (manual and auto transmissions) are the Push-Start TFI module type. Both have the "start" voltage input to the TFI module as shown in the extract diagram below. I know there are different TFI (still trying to ID what's the difference) part numbers for auto and manual transmission fox Mustangs, but it's not until 1994, with the SN95's, that CCD TFI is "added" for both transmission types.

    [​IMG]

    #12
  13. tmoss

    tmoss Gettin Wired Founding Member

    Joined:
    Jun 28, 2001
    Messages:
    7,120
    Likes Received:
    2
    Trophy Points:
    78
    Location:
    Saint Louis, MO
    Your problem is with the relay power circuit (edit: primary) instead of the power to the coil (edit: secondary). The power goes through the inertia switch to the relay coil and then back to the computer on terminal #22 on the EEC where the computer grounds the circuit to run the pump. I'd guess you're loosing voltage to the :edit: pump somehow - weak connection possibly or somewhere else. Could be the wiring between the coil and computer too.

    #13
  14. 90topdown

    90topdown New Member

    Joined:
    Feb 17, 2006
    Messages:
    141
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Philadelphia, PA
    I dont think that it is a weak connection at the inertia switch as it did not make any difference when I jumped it out.

    The only other relay in the fuel pump wiring is the EEC power relay. I think that I will replace that and see what happens.

    Thanks for the help!

    #14
  15. joel5.0

    joel5.0 New Member

    Joined:
    Jun 15, 2004
    Messages:
    434
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Puerto Rico
    :scratch:.... a little correction, if I may........ code 96 - Fuel Pump Circuit Open-Battery To PCM (M,O) or secondary circuit, which is the power switching side at the relay from the battery to the fuel pump, to the FPM pin at the ECM. It means that during a period of time, the voltage output sensed by the FPM pin is too low/open. Need to check voltage from the fusible link at the starter solenoid-to-FP relay-to-fuel pump/FPM pin 19 at the ECM. LUK

    #15
  16. tmoss

    tmoss Gettin Wired Founding Member

    Joined:
    Jun 28, 2001
    Messages:
    7,120
    Likes Received:
    2
    Trophy Points:
    78
    Location:
    Saint Louis, MO
    Joel, I didn't follow that so well - have I been wrong in saying the secondary is the coil and the primary the power to the pump? Backwards?

    At any rate, you can see that the EEC does monitor EEC power at EEC pin #37. Pin #19 is the power circuit to the pump that is monitored too.

    #16
  17. joel5.0

    joel5.0 New Member

    Joined:
    Jun 15, 2004
    Messages:
    434
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Puerto Rico
    Yep.... primary is coil and secondary is power switching side in the relay. That is another (pin 37) reference point to compare to pin 19's input the system uses.

    #17
  18. 90topdown

    90topdown New Member

    Joined:
    Feb 17, 2006
    Messages:
    141
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Philadelphia, PA

    Key On - 10 volts on starter solenoid side of fusible link G BK/O wire
    0 volts at Pin 19 of ECM

    Key On - Fuel pump grounded at diagnostic connector
    9.3 volts at solenoid side of fusible link G BK/O wire
    9.5 volts at Pin 19

    Bad EEC power relay ???

    What do you think ??

    #18
  19. joel5.0

    joel5.0 New Member

    Joined:
    Jun 15, 2004
    Messages:
    434
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Puerto Rico
    Got some low voltage problem there...... 10 vdc at the fuse link is too low. The "threshold" for the ECM is 10.5 vdc at pin 19, but the supply is below the normal 12 vdc expected. May want to check those main grounds (block and block-to-frame)..... LUK

    #19
  20. 90topdown

    90topdown New Member

    Joined:
    Feb 17, 2006
    Messages:
    141
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Philadelphia, PA
    I thought the voltage was kind of low too but the funny thing is that I had nearly 12 volts at the battery at the begining. Once I jumped the fuel pump, the voltage started to drop very quickly. Within maybe 2 mins of the pump running jumped out the voltage was down to 6 volts. I checked it a couple of times to be sure. First reading was around 9, then it quickly dropped. You could hear the fuel pump slowing as the voltage dropped.

    I know that the neg cable to engine block connection is good. Not sure if I have a cable between the engine block and frame though. I will look. If it is not there, do I just run a cable from anywhere on the block ot anywhere on the frame??

    #20
