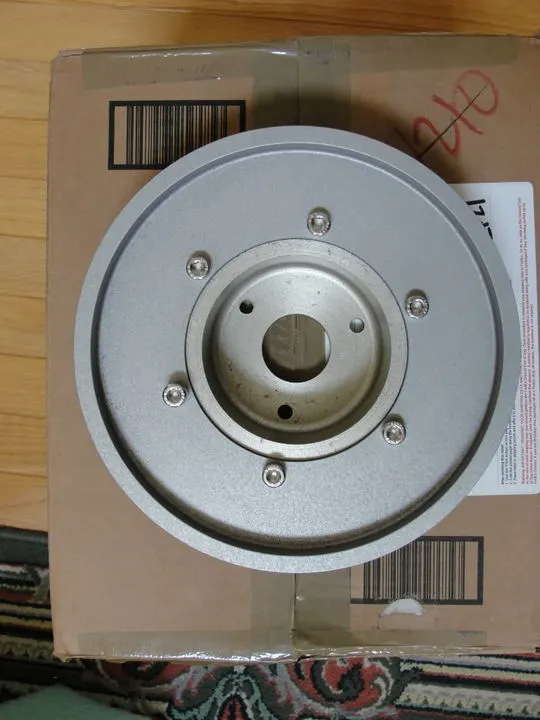

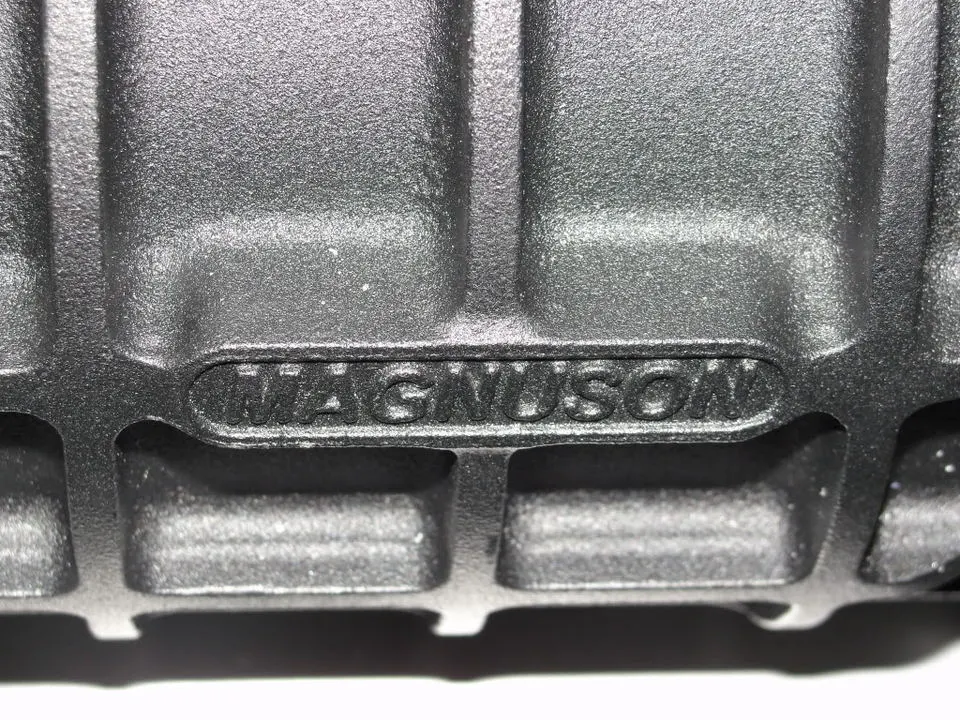

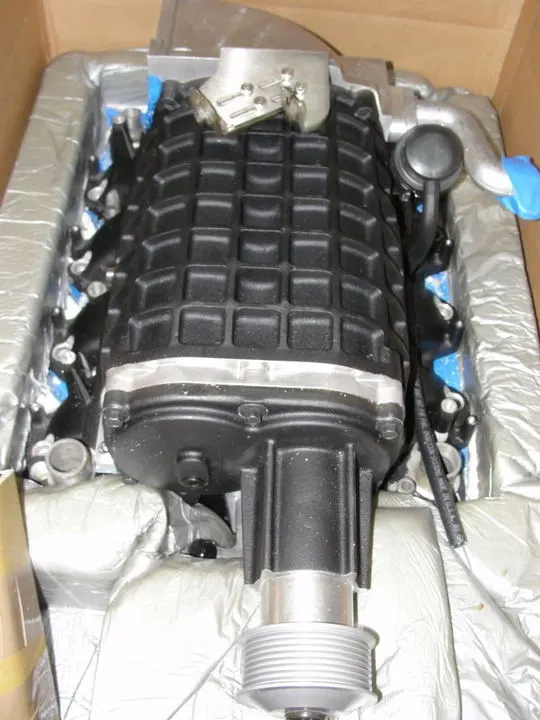

    Update: the blower arrived today. Behold:

    [​IMG]

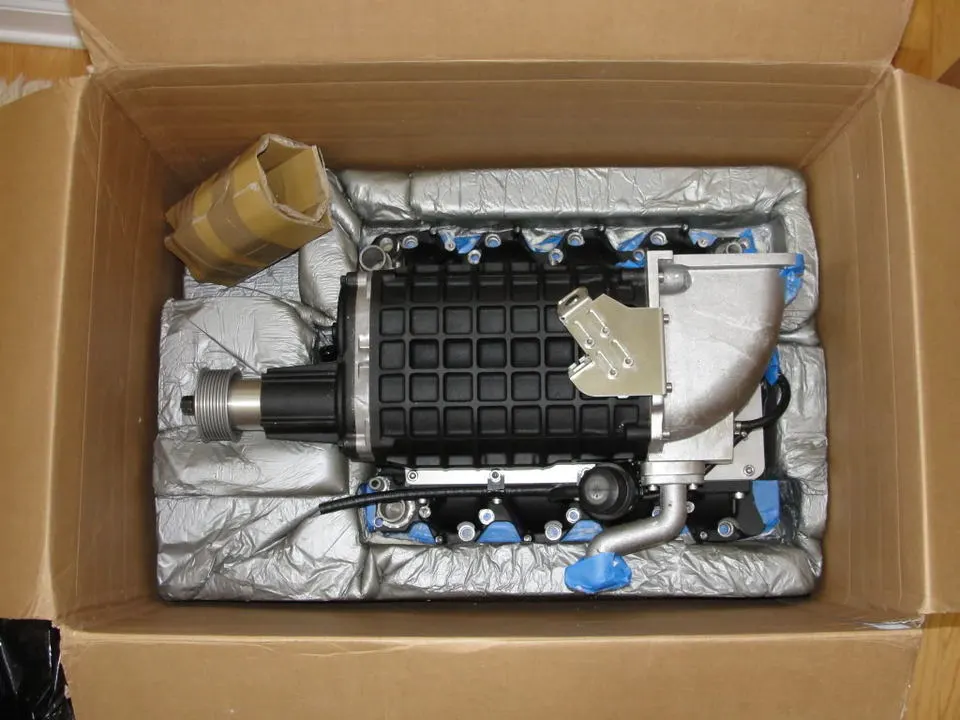

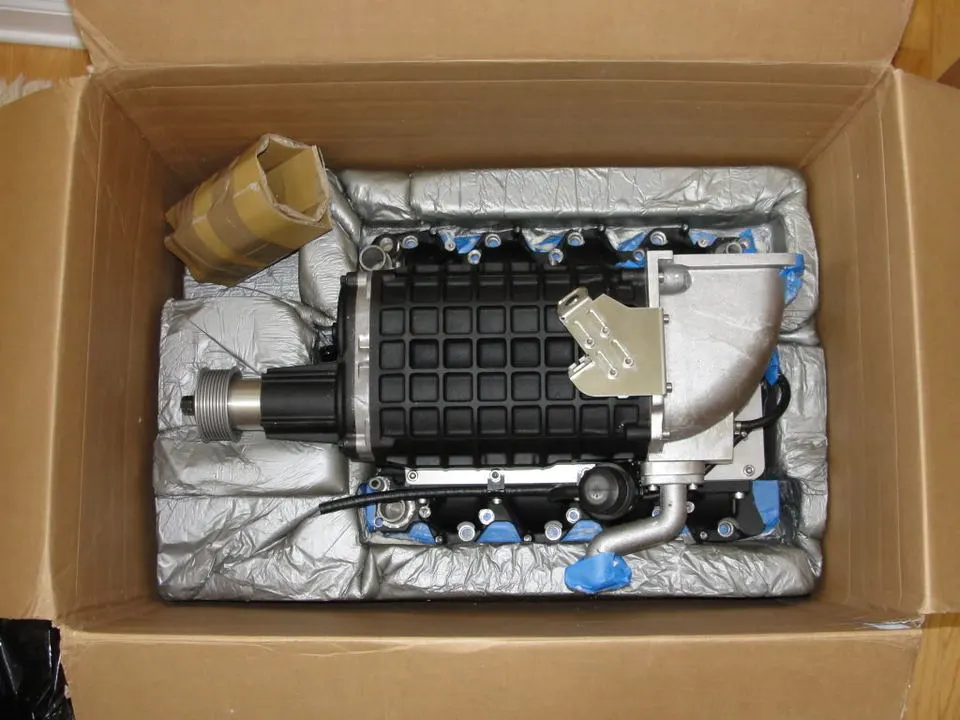

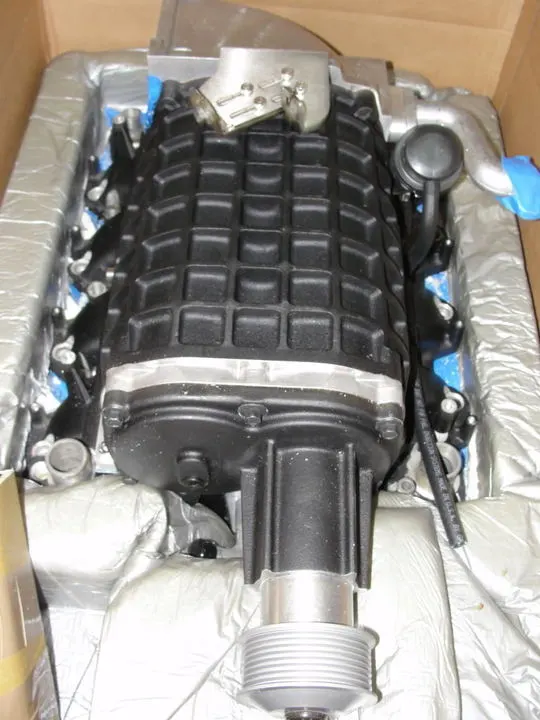

    It was well-packed:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

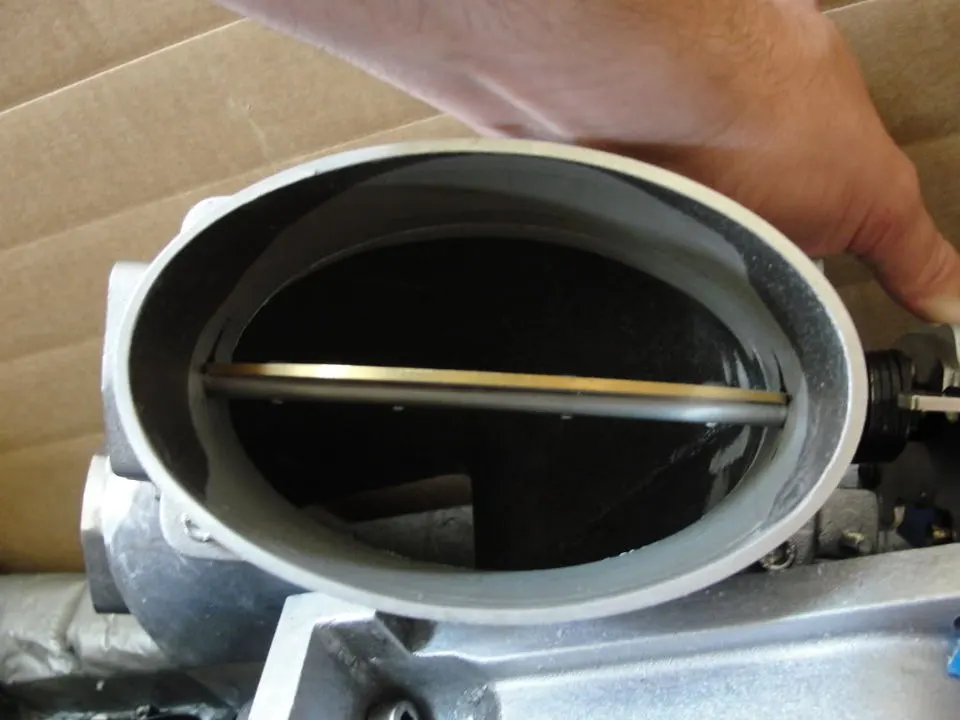

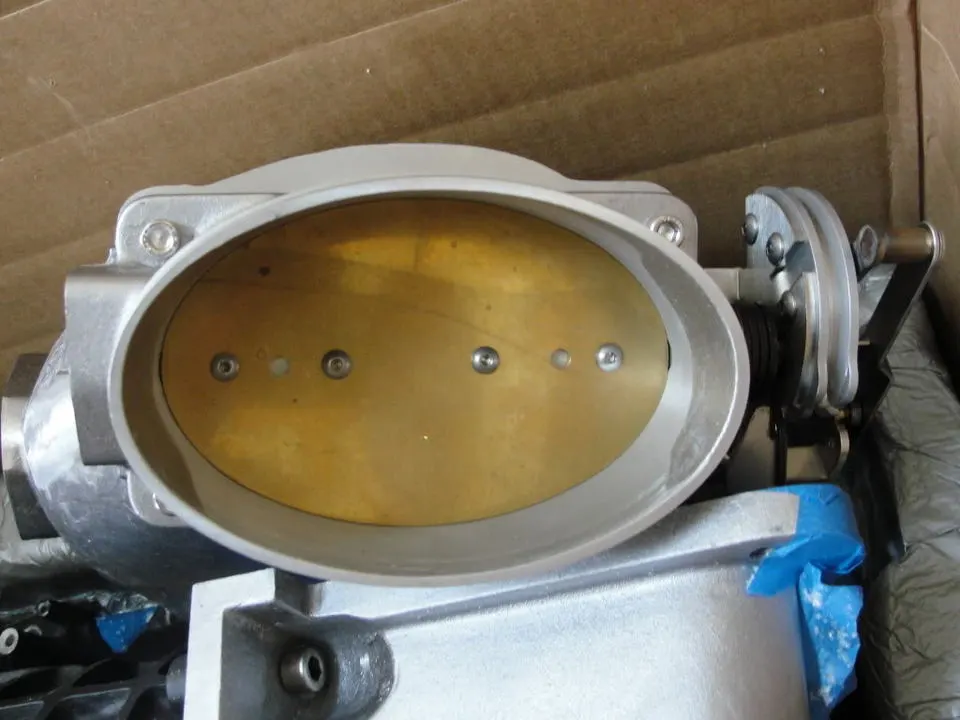

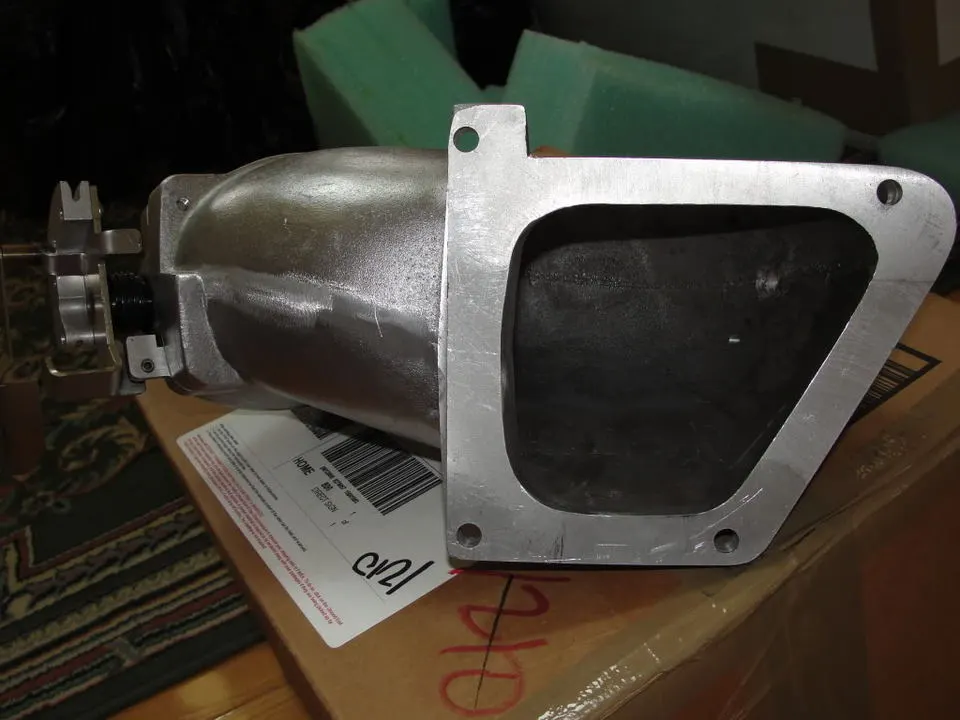

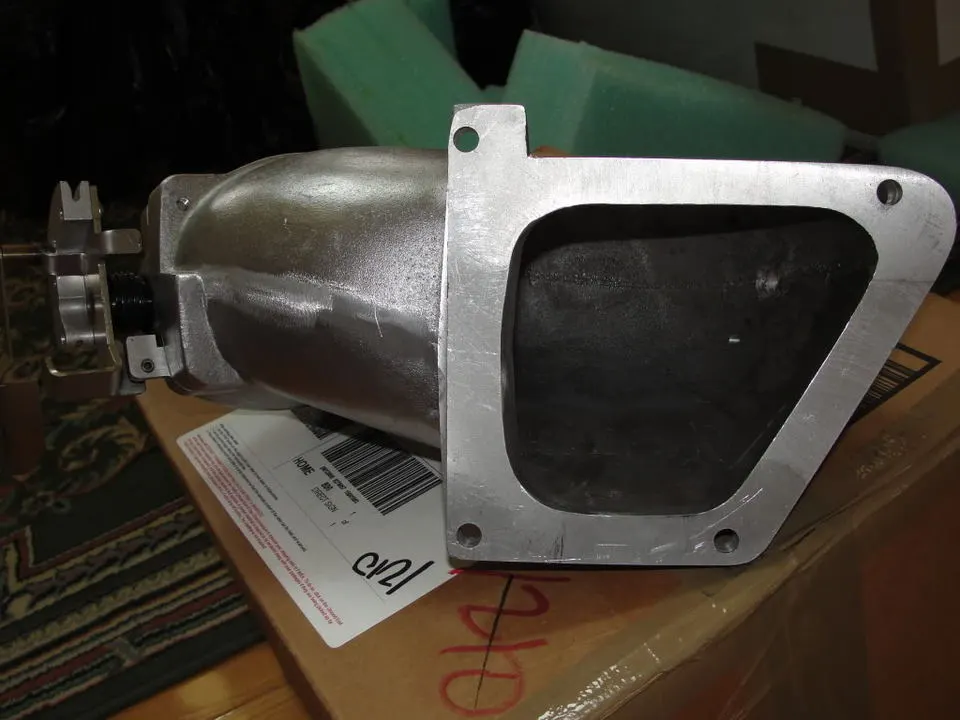

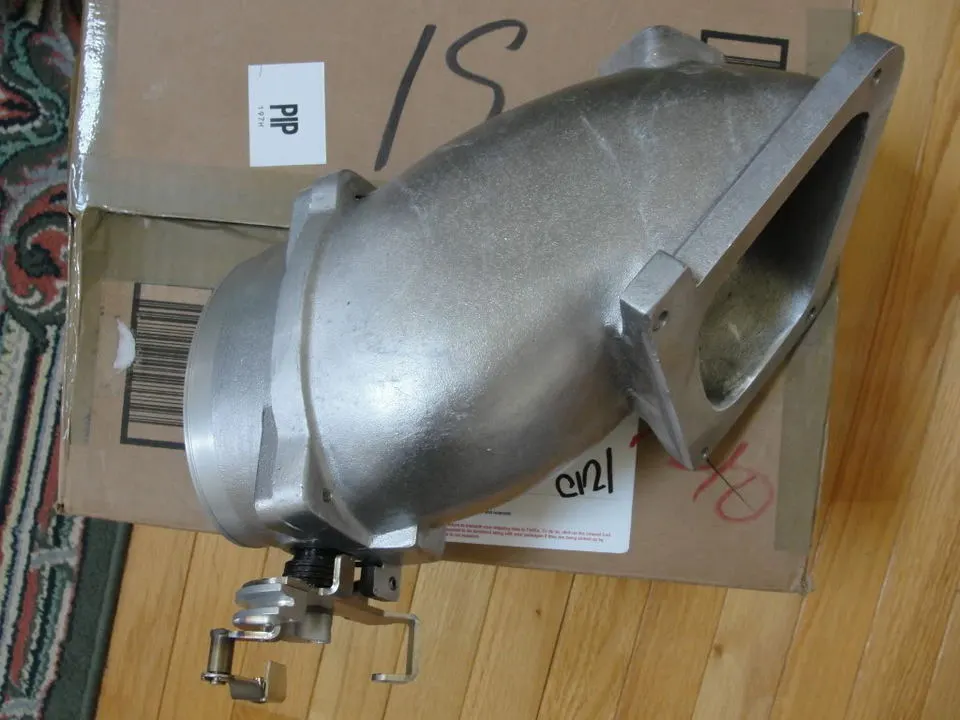

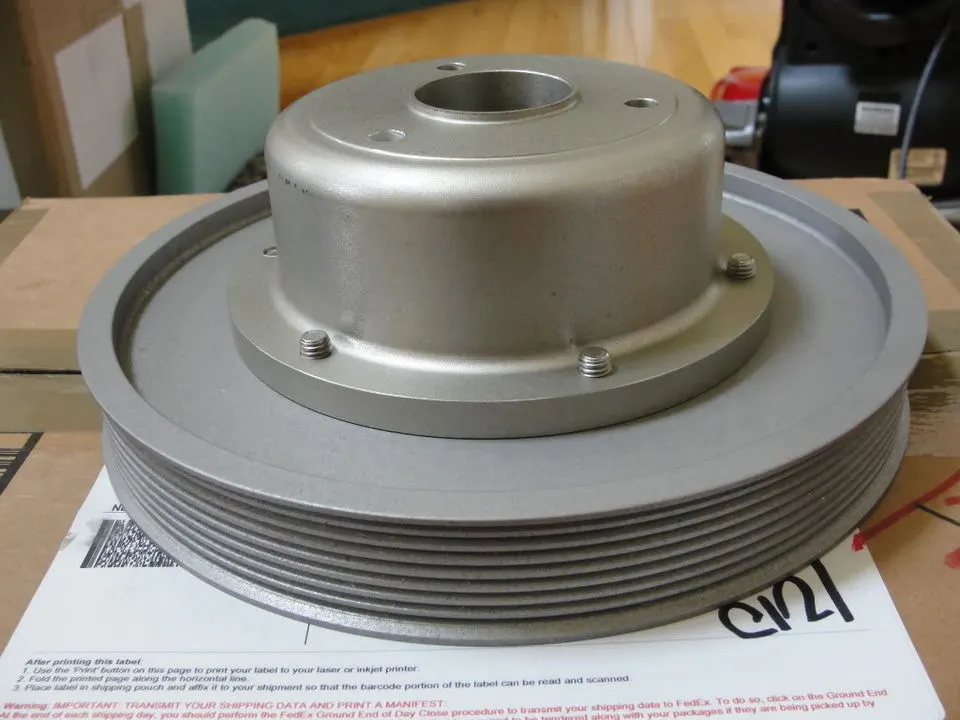

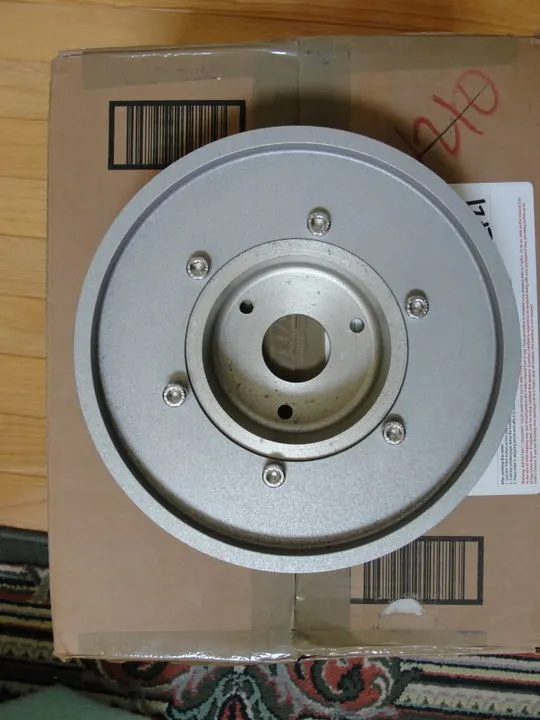

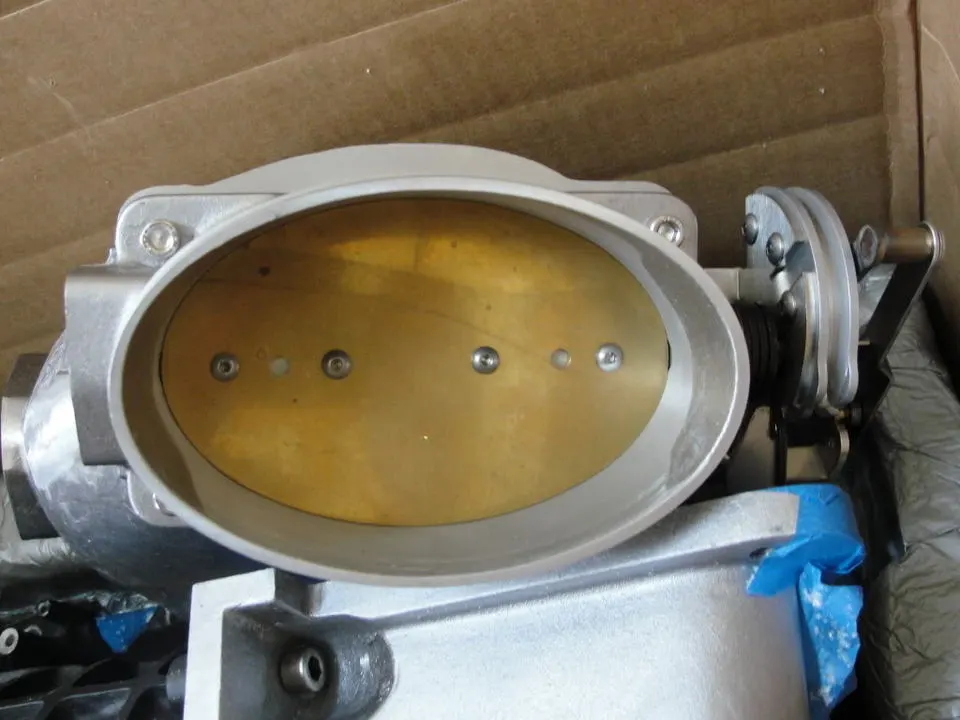

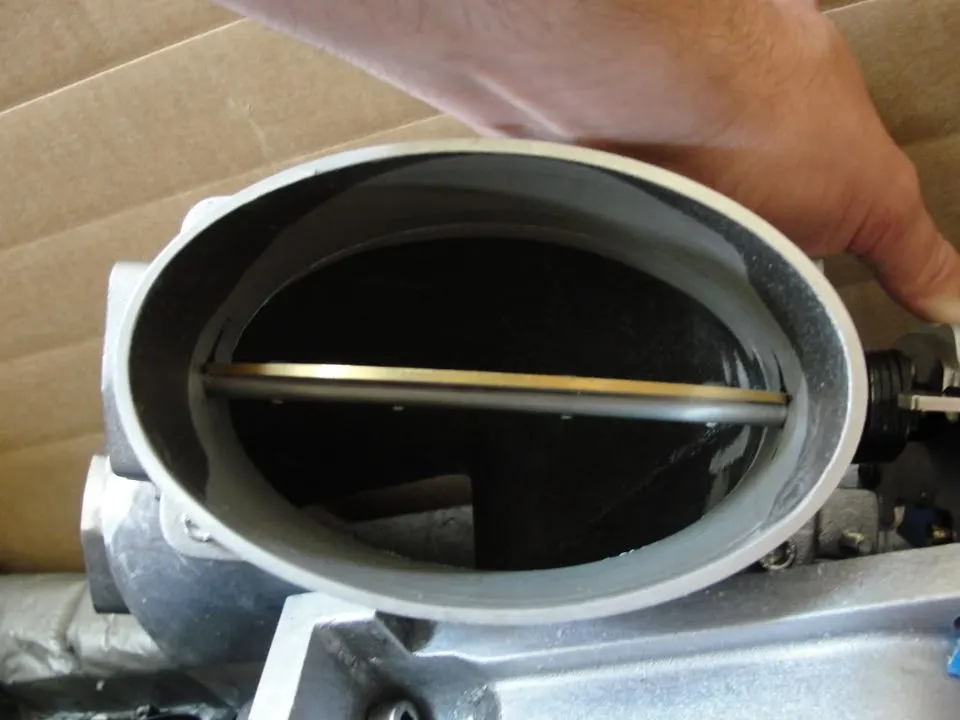

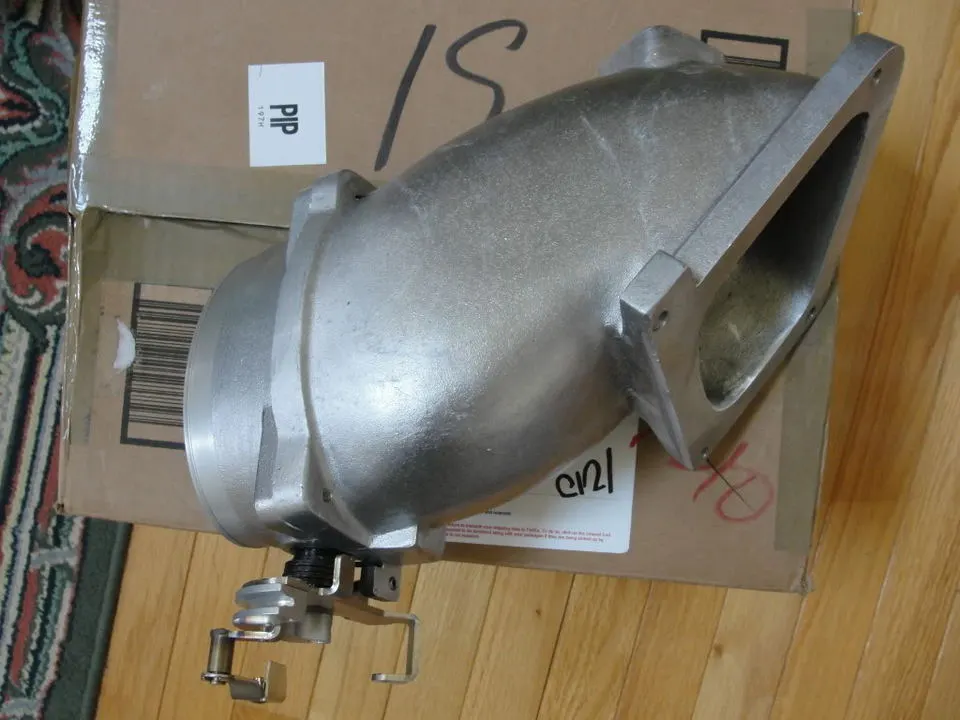

    Tork Tech plans to start offering "Big Dog" inlet plenums and larger throttle bodies for their TVS 1900 and 2300 kits. For my build, Tork Tech cast pre-production pieces (hence the rough finish) and shipped them in a separate box:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

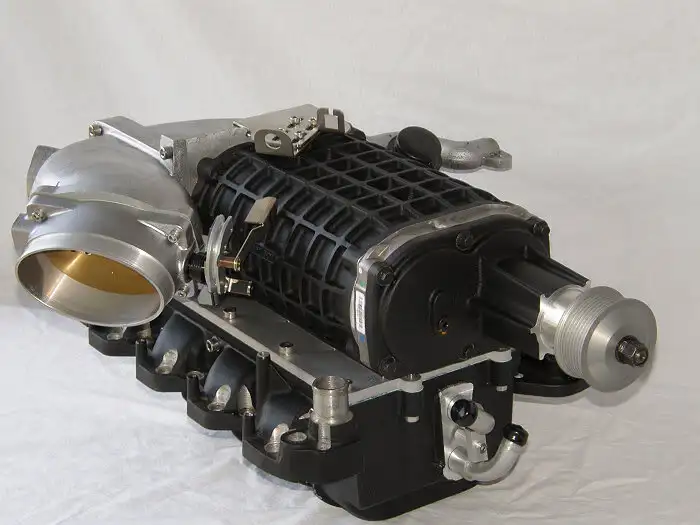

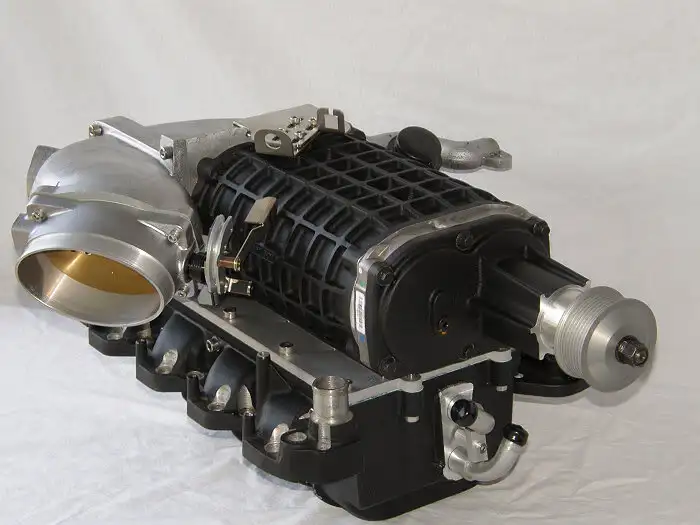

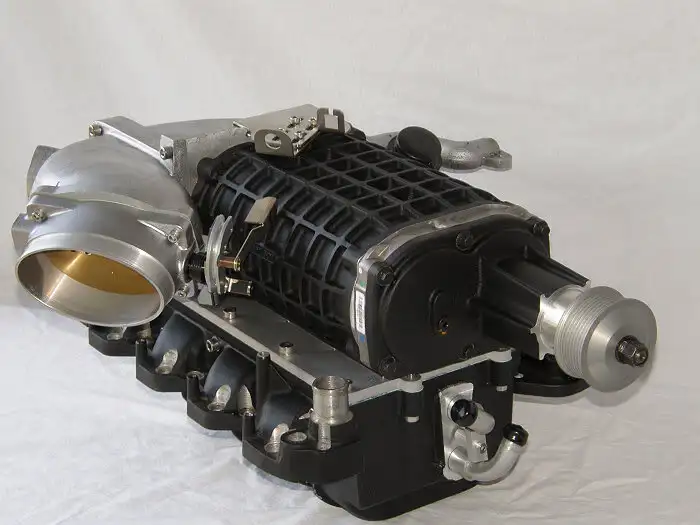

    Tork Tech is using this photo of my blower setup on their website to advertise their new TVS 2300 kit:
    [​IMG]

    I'm currently working on finishing up the transmission. I'll be sure to keep this thread up-to-date as things come together.

    #41
  2. Flghtmstr1

    Flghtmstr1 Member

    Joined:
    Apr 1, 2005
    Messages:
    556
    Likes Received:
    3
    Trophy Points:
    19
    Location:
    Newtown Square, PA
    Sorry to hear about your rebuild woes. I'll make sure to keep this thread up-to-date so you can vicariously enjoy the build process :)

    #42
  3. N8Dogg98

    N8Dogg98 Mustang Master

    Joined:
    Apr 5, 2005
    Messages:
    10,181
    Likes Received:
    512
    Trophy Points:
    154
    Location:
    MN
    holy chit... awesome pics of the blower. that thing is gonna be a beast when you're done!!! :fap:

    #43
  4. billfisher

    billfisher Active Member

    Joined:
    Jul 17, 2005
    Messages:
    1,294
    Likes Received:
    2
    Trophy Points:
    38
    Location:
    huntsville, AL
    a single 255lph (43gph)is good for ~500rwhp depending on BSFC of the engine. twins are the same as twin focus SVT pumps. 86 gallons per hours is plenty of fuel for 800 or so rwhp.

    #44
  5. trombonedemon

    trombonedemon Well-Known Member

    Joined:
    Jun 25, 2009
    Messages:
    2,589
    Showcase:
    3
    Albums:
    1
    Likes Received:
    35
    Trophy Points:
    59
    Location:
    U.S.A, U.S.A., U.S.A.!
    I'm hearing people blowing off fuel pressure regulators making that much horse-power. Ever have an issue like that?

    #45
  6. 02TruBlueGt

    02TruBlueGt Member

    Joined:
    Aug 22, 2006
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    16
    any updates? just read whole thread and looks like a beast. Im planning MMR Longblock here shortly and debating on what blower to go with and this TVS kit looks pretty nice. Whats the 2300 kit run?

    #46
  7. bakos24

    bakos24 I find there is nothing better than a tasty wiener

    Joined:
    Nov 30, 1999
    Messages:
    4,569
    Showcase:
    4
    Albums:
    1
    Likes Received:
    457
    Trophy Points:
    134
    Location:
    Austintown, OH
    :fap::leghump::drool:


    cant wait till I am able to afford to upgrade my Tork Tech blower......

    #47
  8. Flghtmstr1

    Flghtmstr1 Member

    Joined:
    Apr 1, 2005
    Messages:
    556
    Likes Received:
    3
    Trophy Points:
    19
    Location:
    Newtown Square, PA
    Still working on the trans. I'm hoping to have it finished by the end of the weekend. I'm finished with the internals, but I still have to modify valve body and install it on the transmission. I'll keep you all posted.

    #48
  9. Flghtmstr1

    Flghtmstr1 Member

    Joined:
    Apr 1, 2005
    Messages:
    556
    Likes Received:
    3
    Trophy Points:
    19
    Location:
    Newtown Square, PA
    Update:
    Transmission is done. I finished with the valve body work Sunday night, and tomorrow after work I'll be starting with the process of installing the engine and trans back in the car. As always, I'll update this thread as I make progress. I hope to have the car running by October 16th, as I have a little race that day at Atco :).

    Here are the pictures I took of the trans building process:

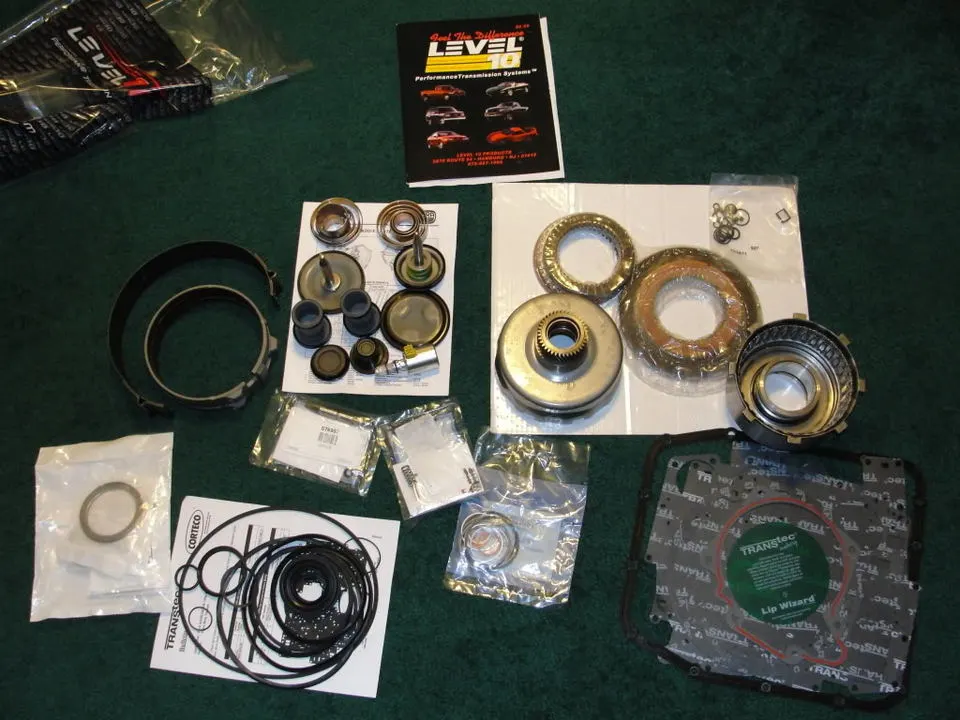

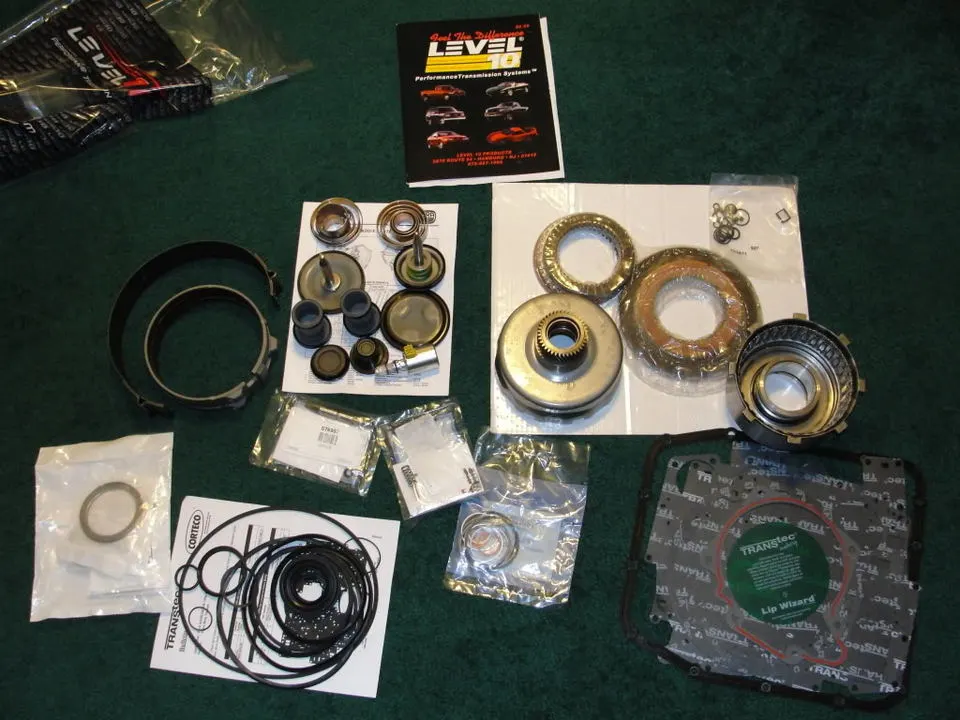

    I got most of the rebuild parts from Level 10 in New Jersey:
    [​IMG]

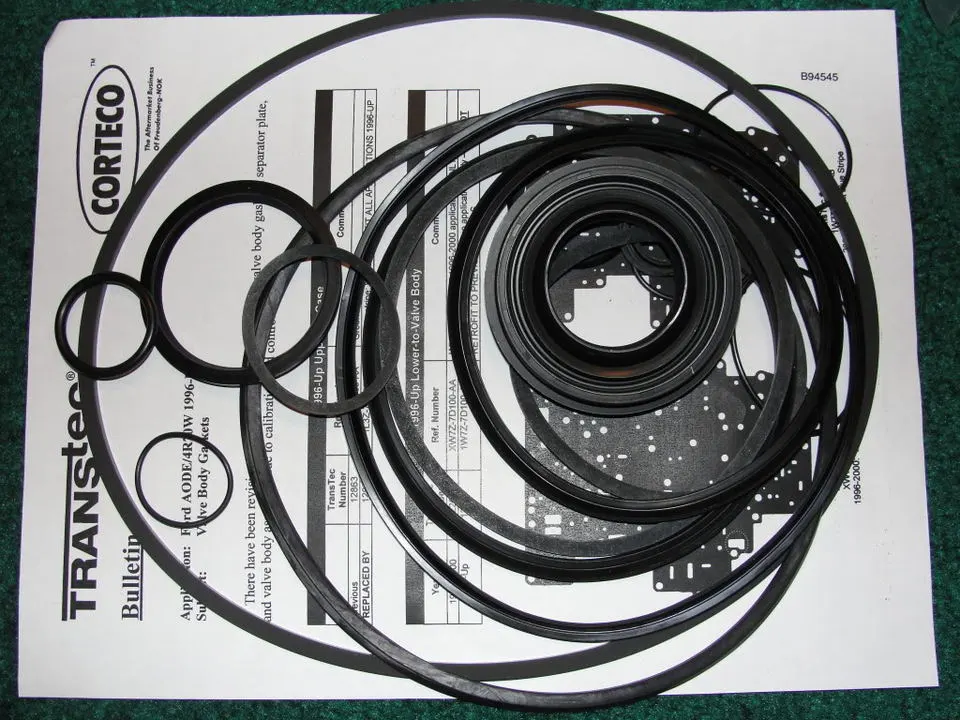

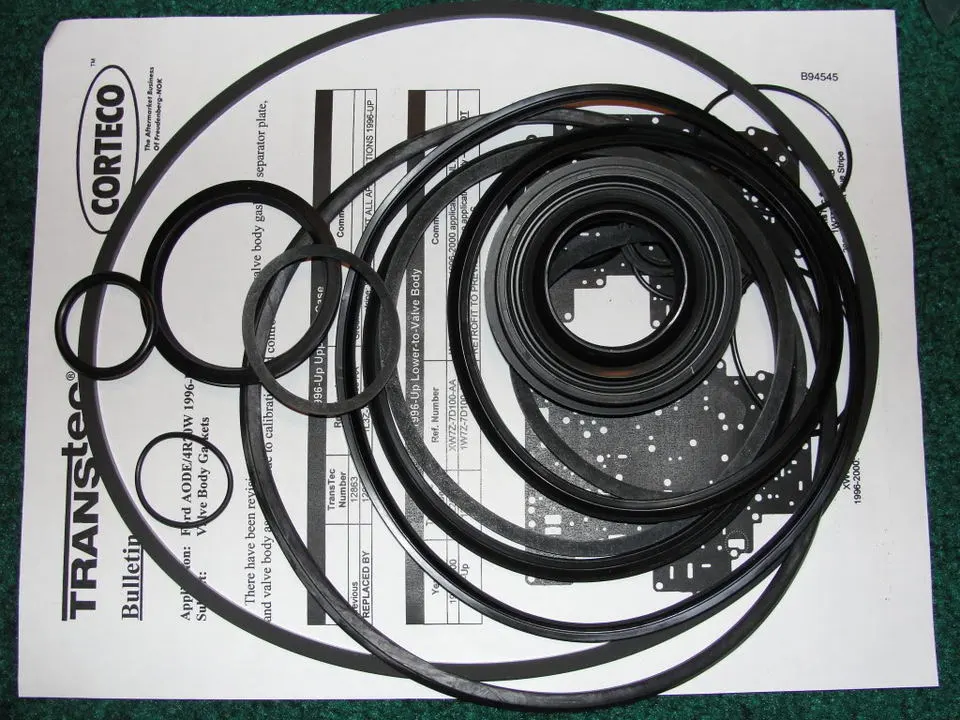

    A bunch of gaskets, O-rings, and seals:
    [​IMG]

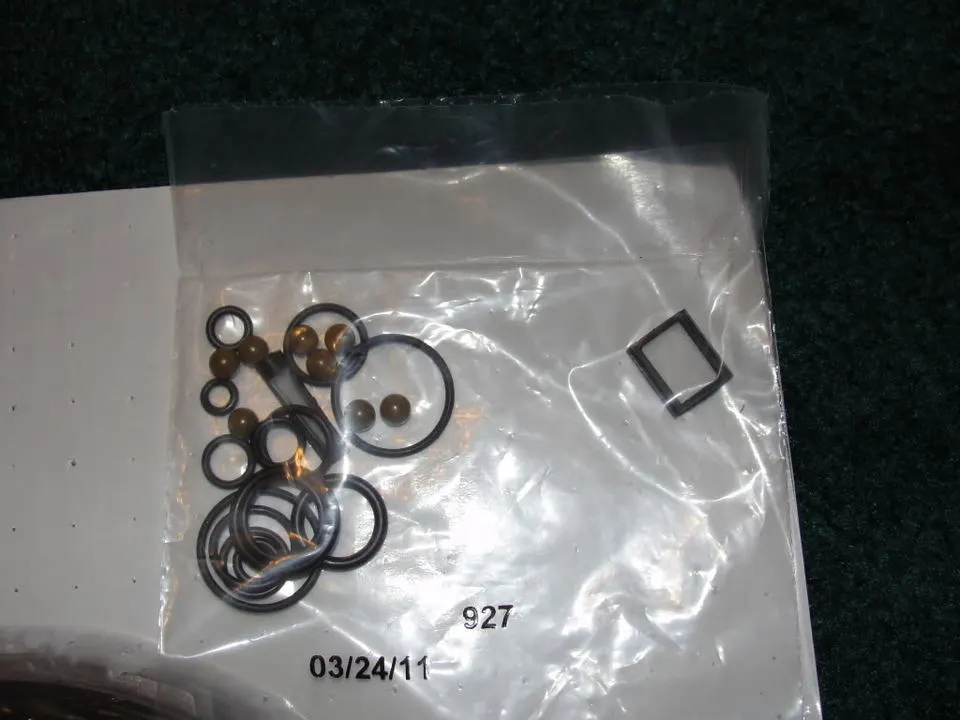

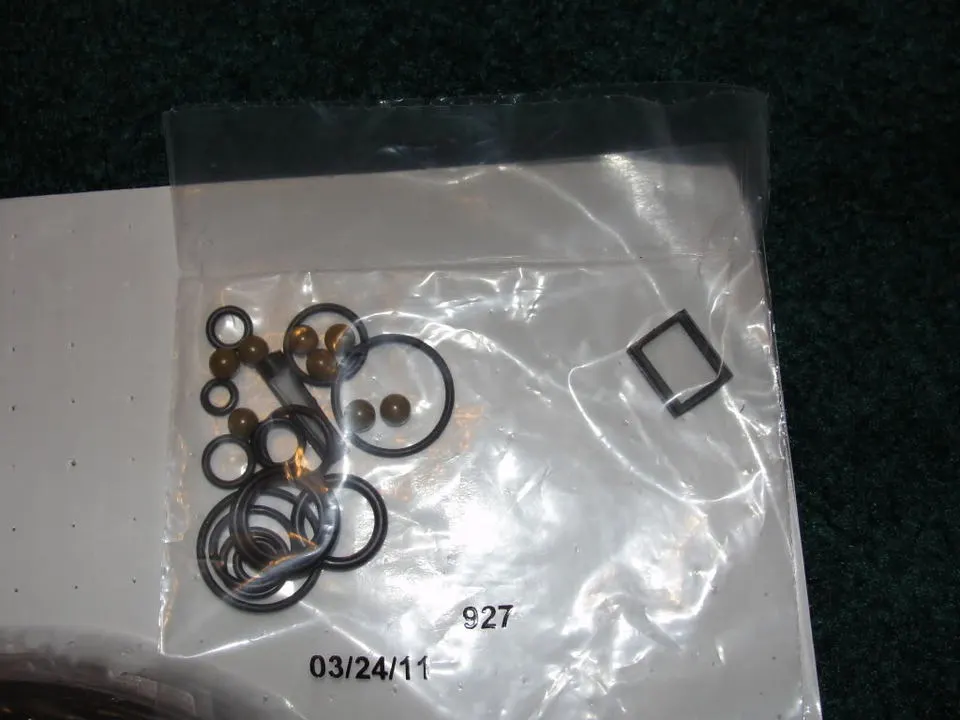

    More O-rings & check balls:
    [​IMG]

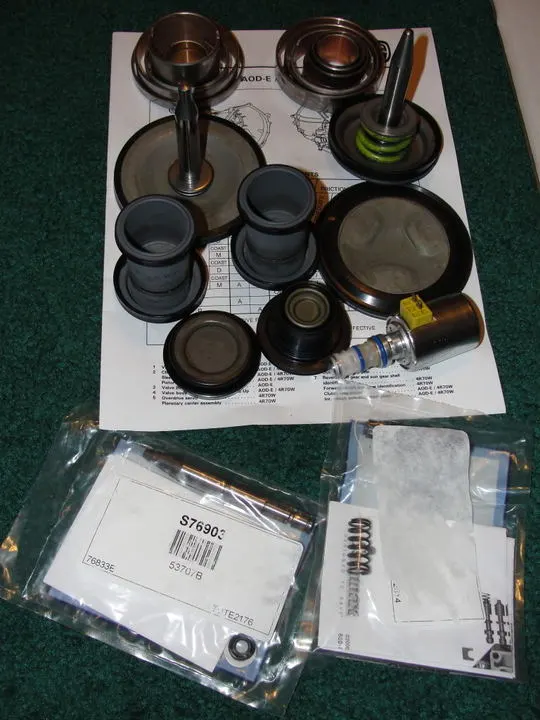

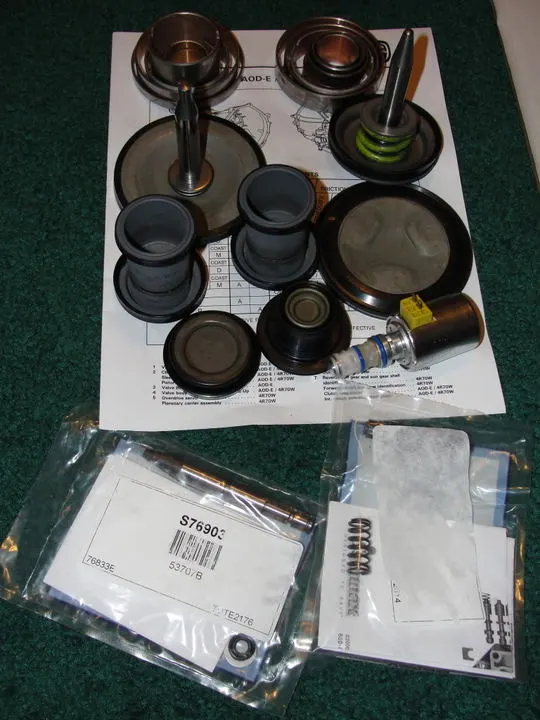

    Bushings, accumulators, pistons, and EPC solenoid:
    [​IMG]

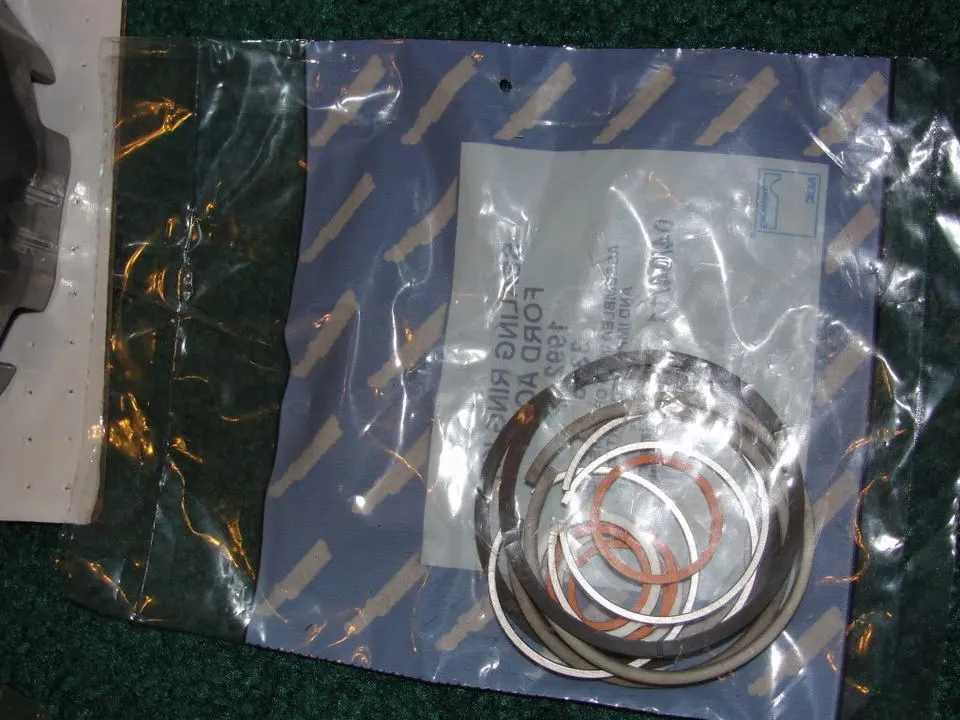

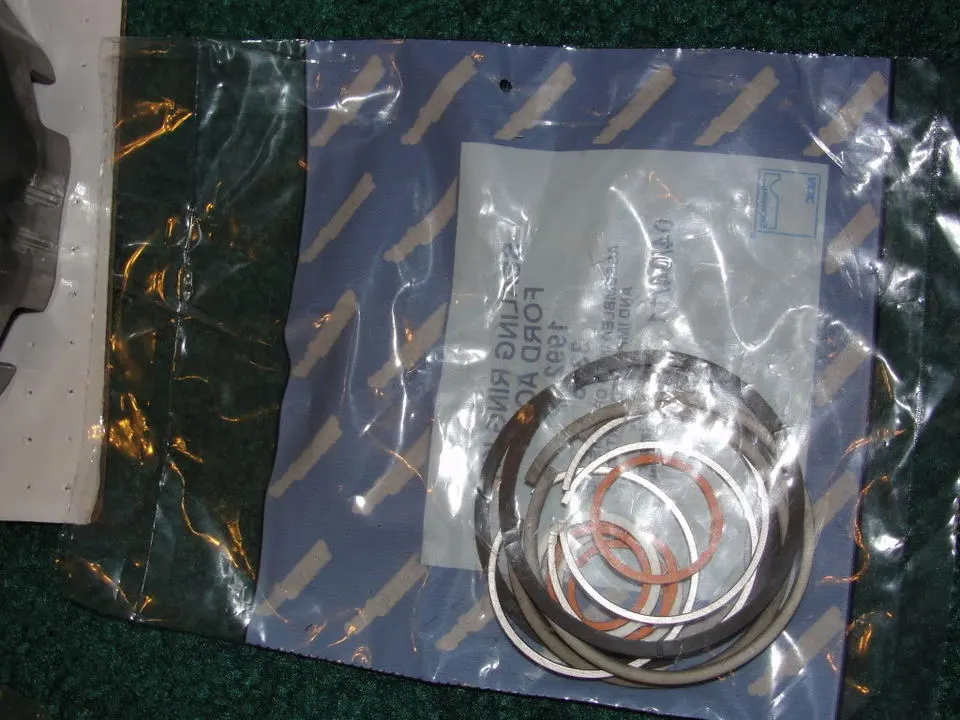

    More seals. Some were solid Teflon, some were scarf-cut, and others were locking metal rings:
    [​IMG]

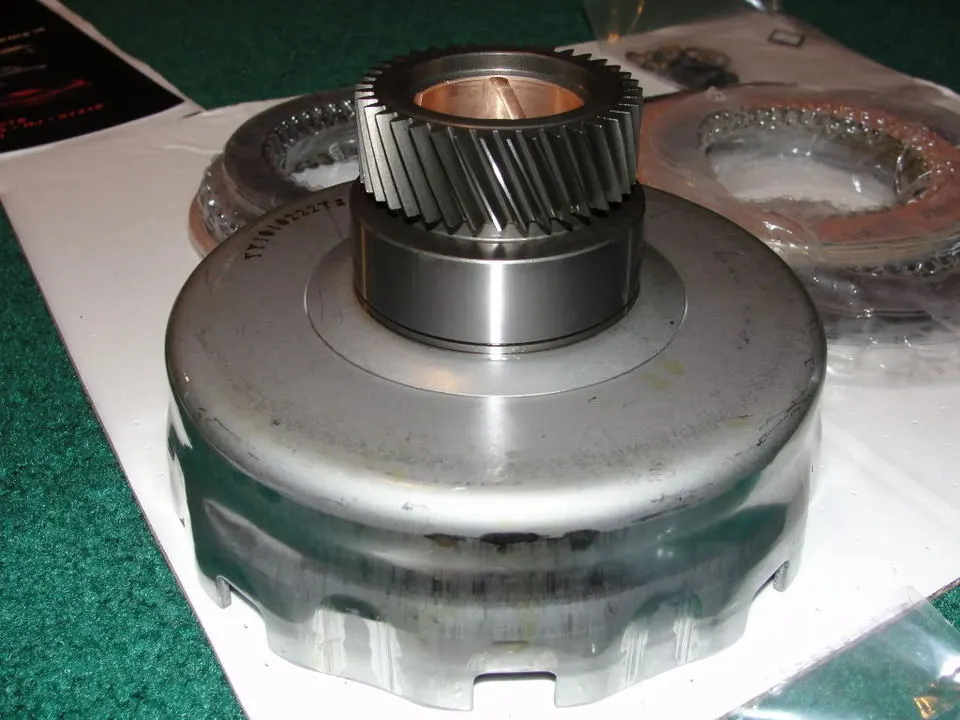

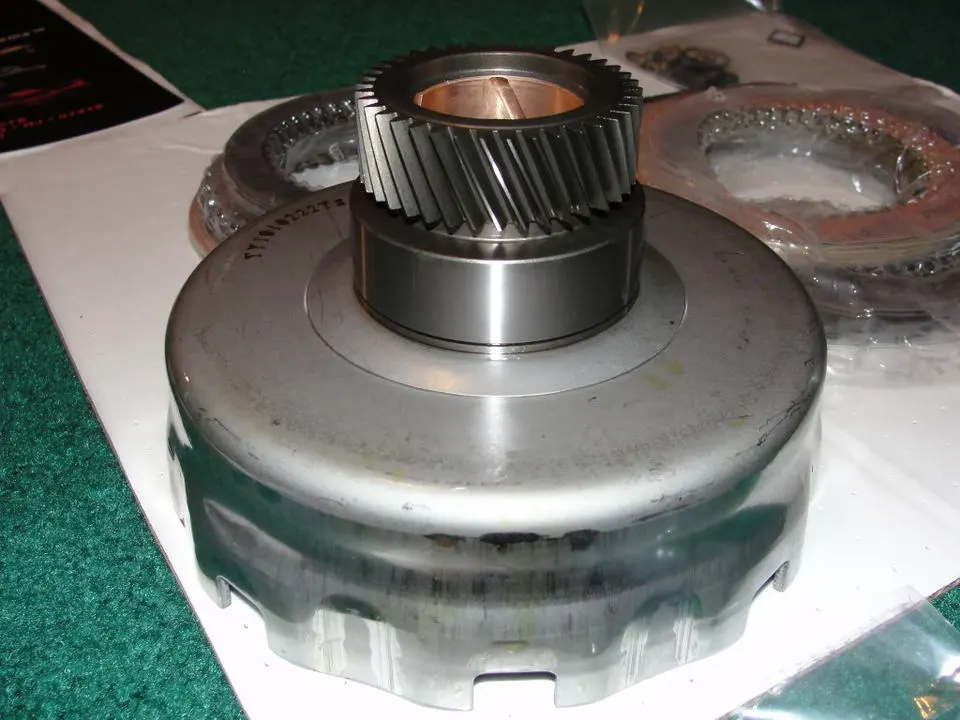

    New input shell:
    [​IMG]

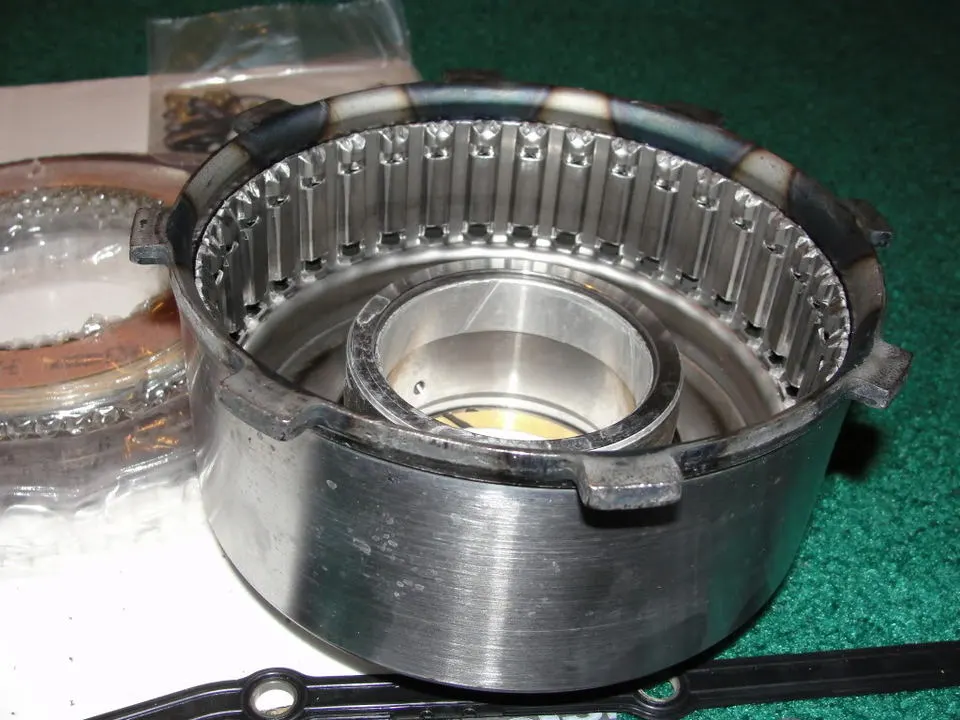

    New reverse drum:

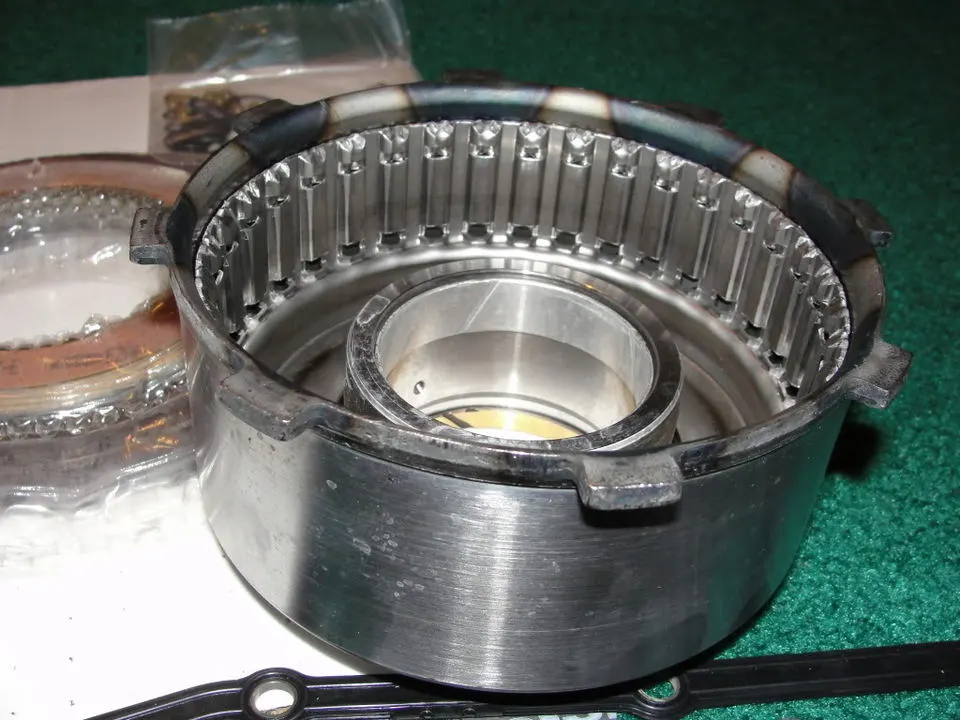

    [​IMG]

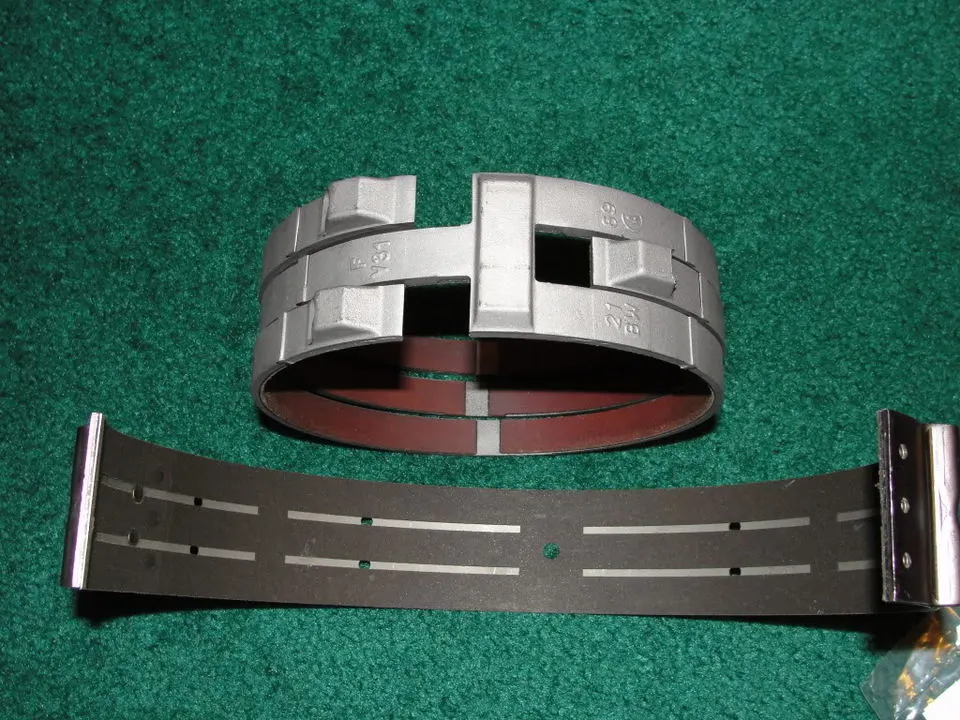

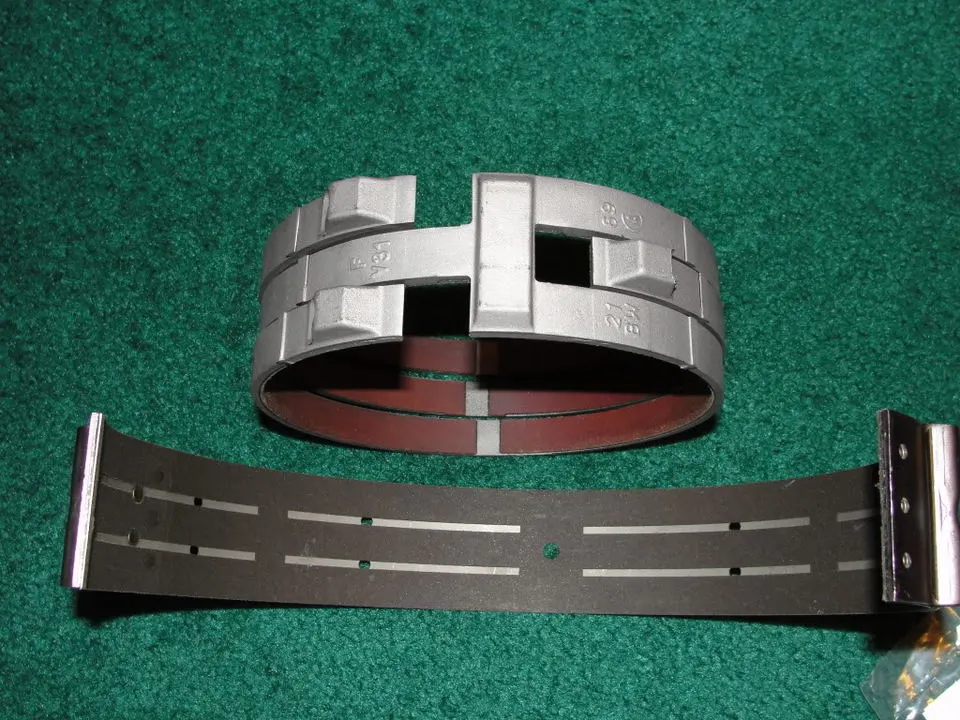

    New Overdrive and Reverse bands. The old reverse band could have probably been reused.
    [​IMG]

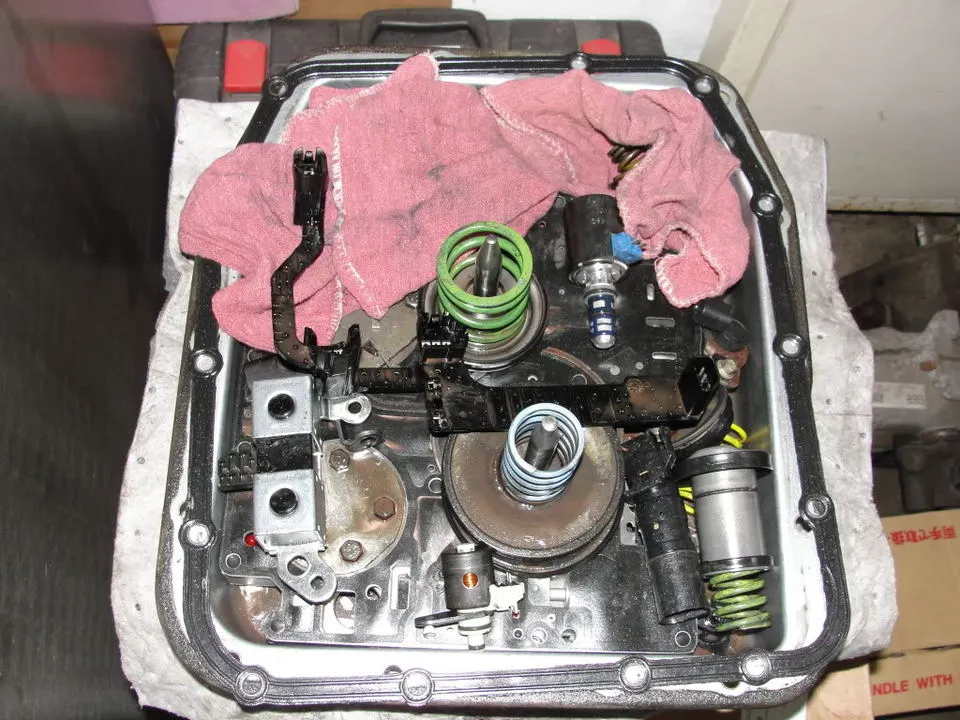

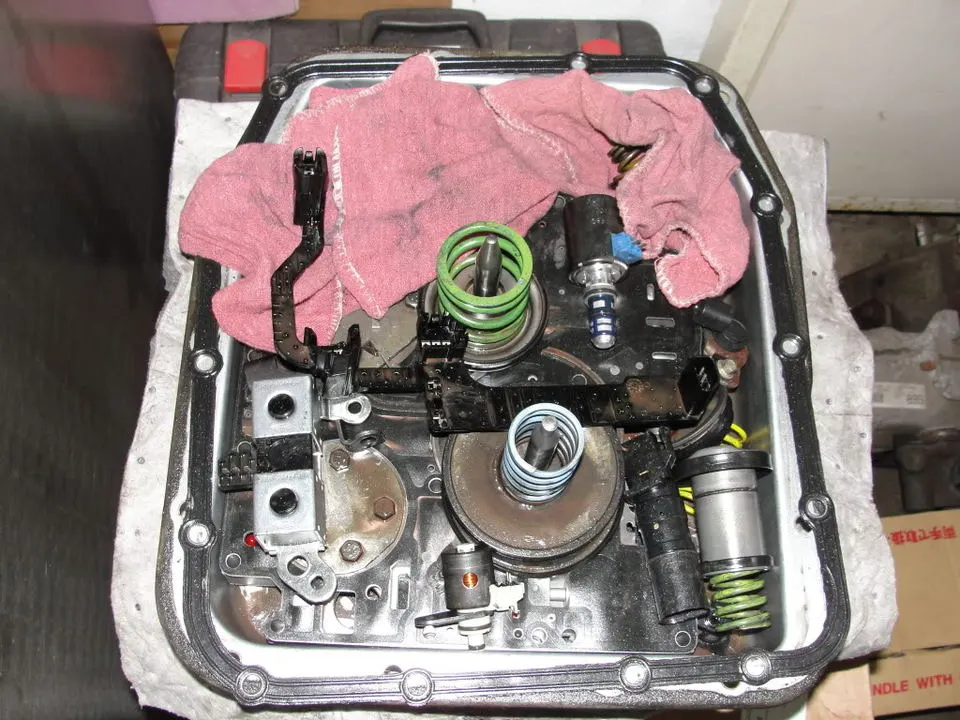

    Here's the old pan, valve body, various accumulators, pistons, springs, etc. Basically, I stuck all of the old shift control parts into the pan when I was taking the trans apart:
    [​IMG]

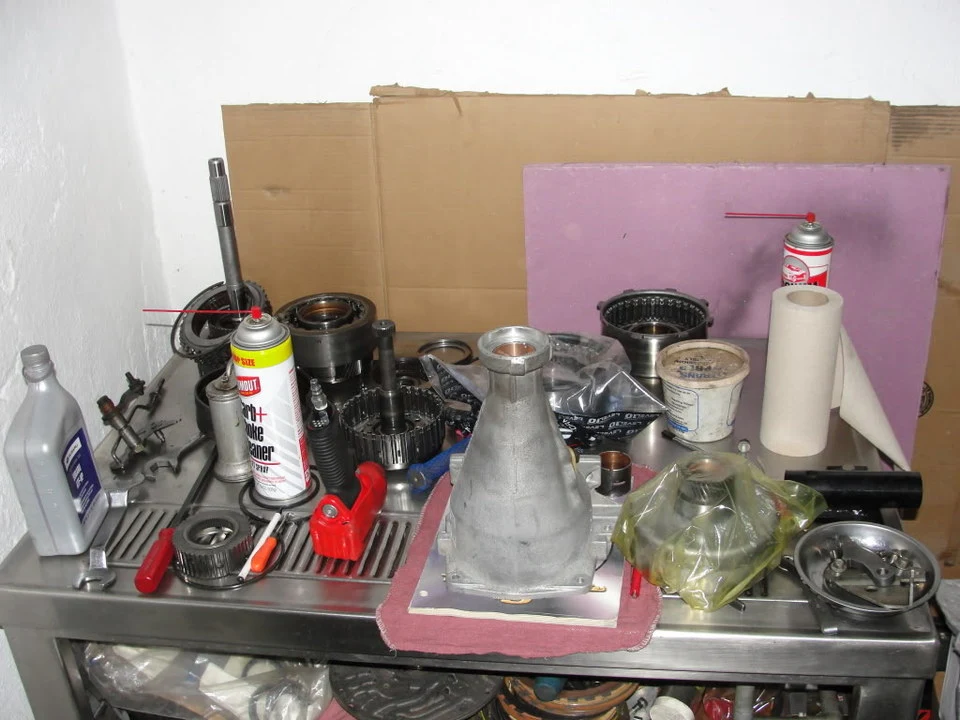

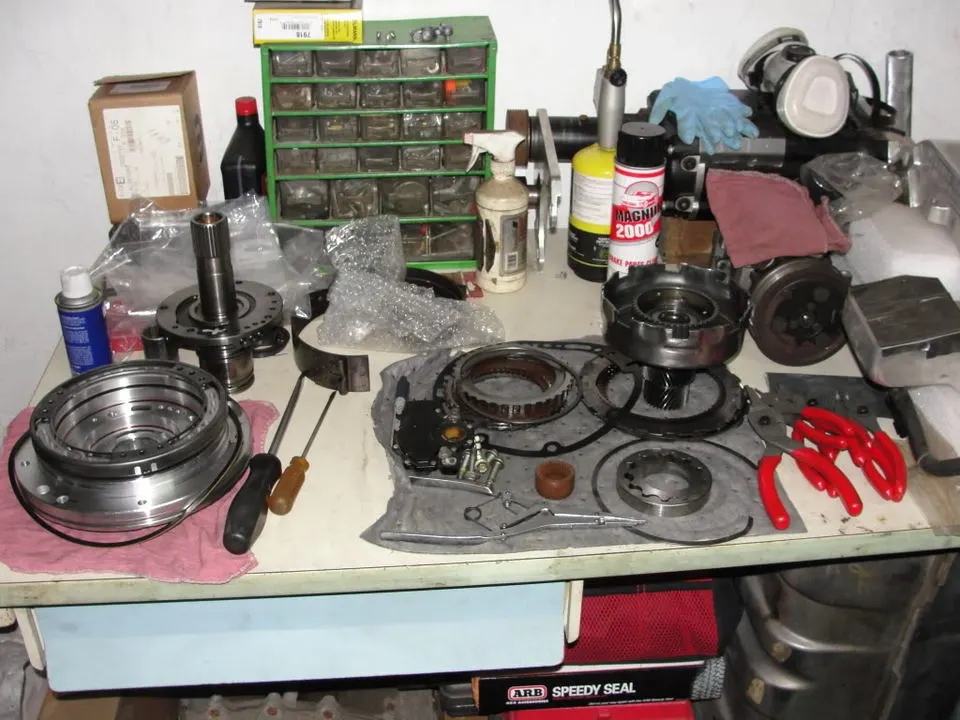

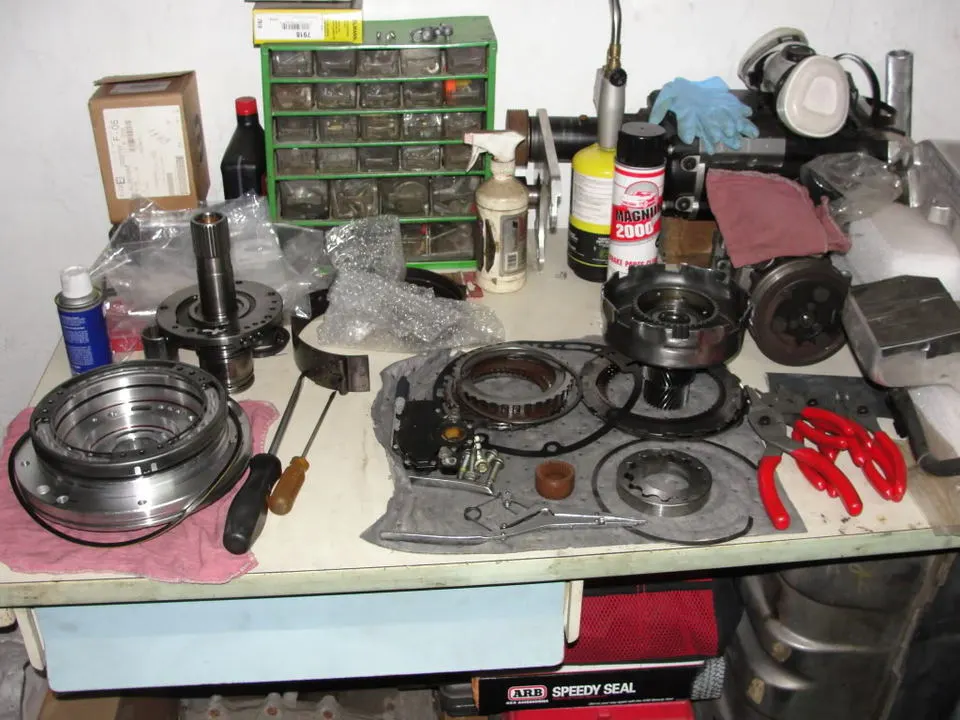

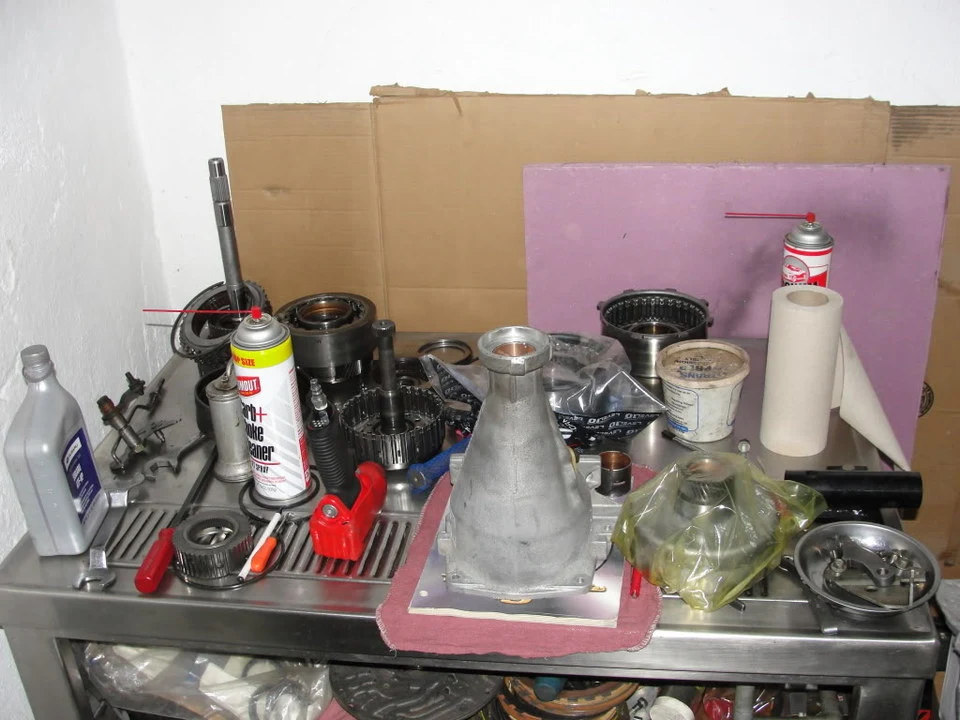

    Here's a picture of half of my work area during a random point of the build:
    [​IMG]

    Here's the other half:
    [​IMG]

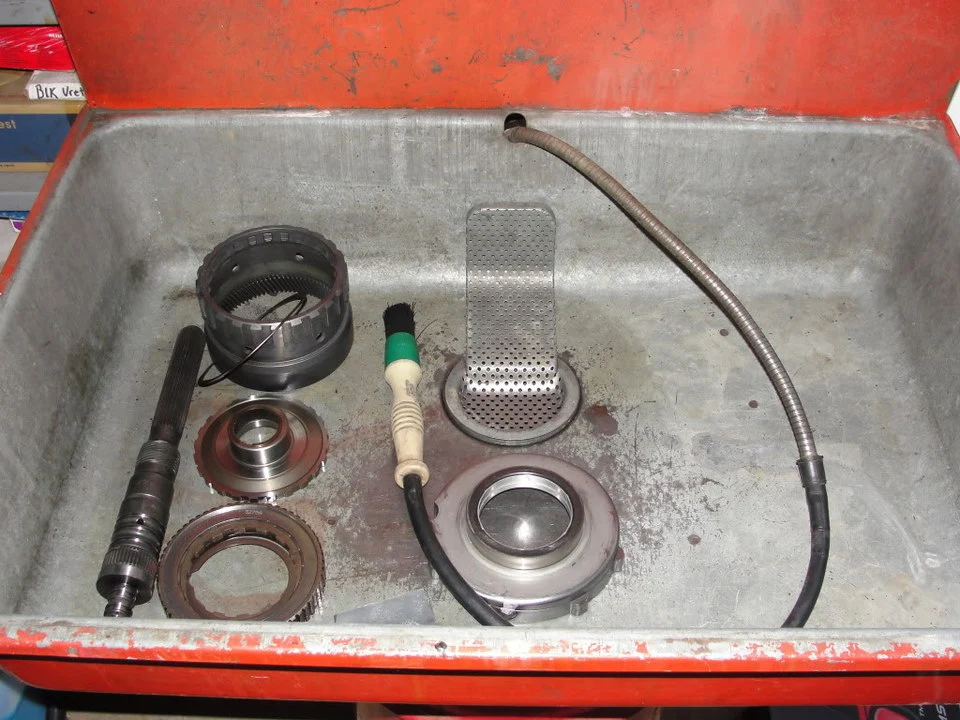

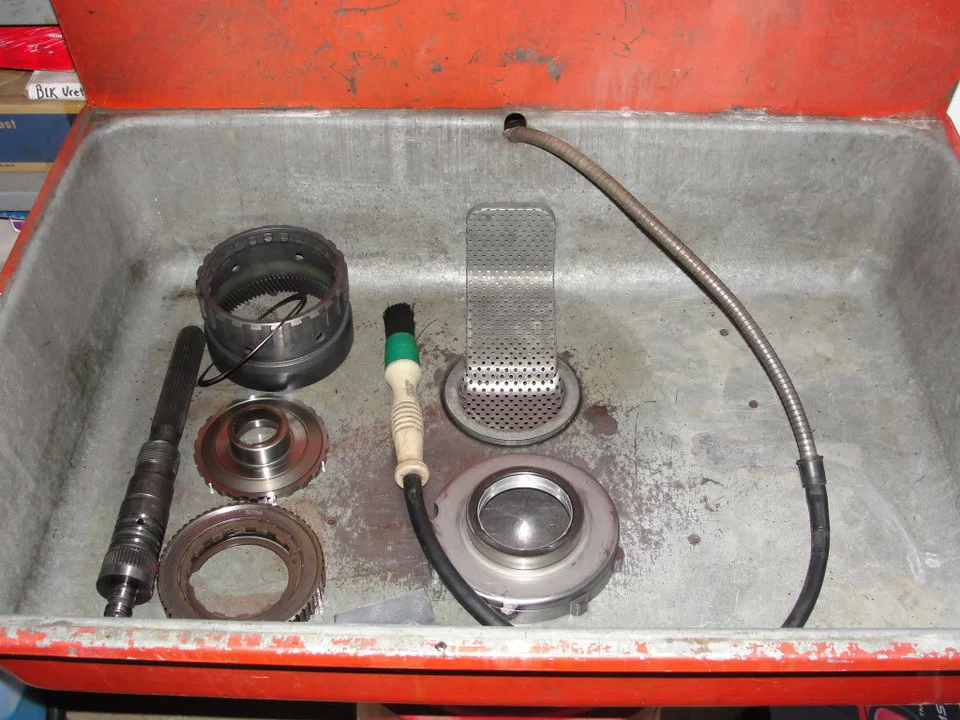

    Gotta keep everything clean:
    [​IMG]

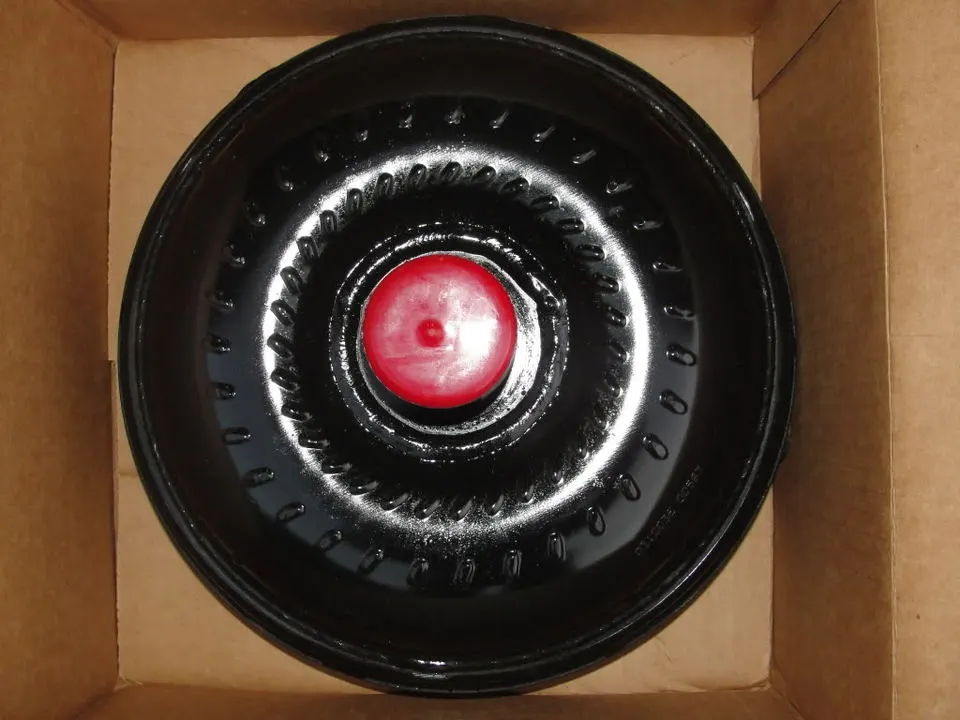

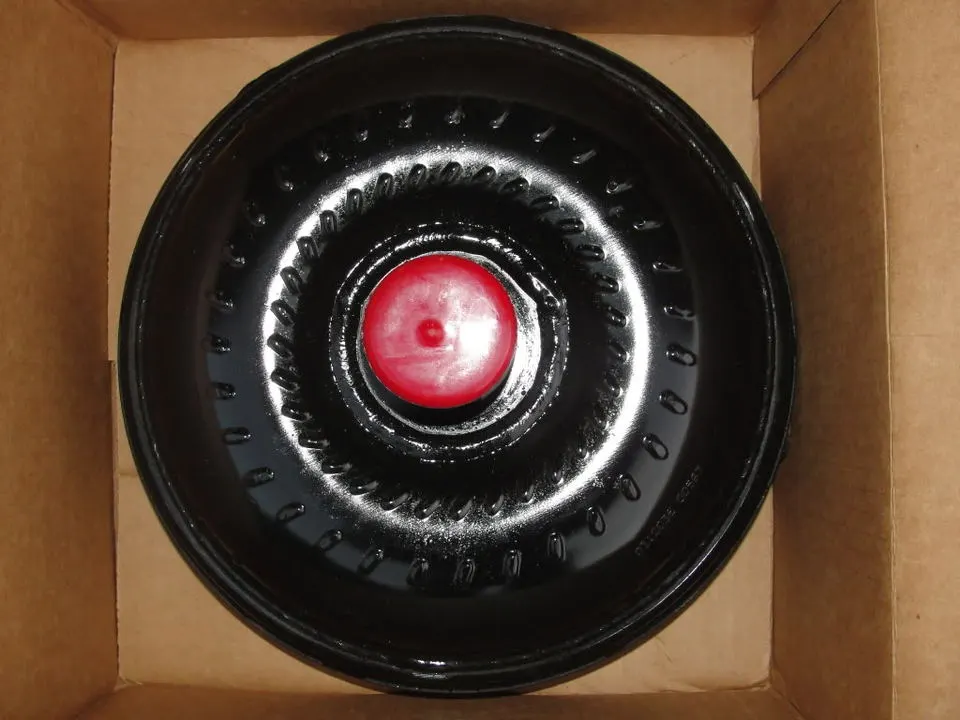

    I had Pat's Transmissions in Broomall, PA build me a converter. It's a 10.5" 3000 stall converter with 11.5" lockup clutch & billet housing:[​IMG]

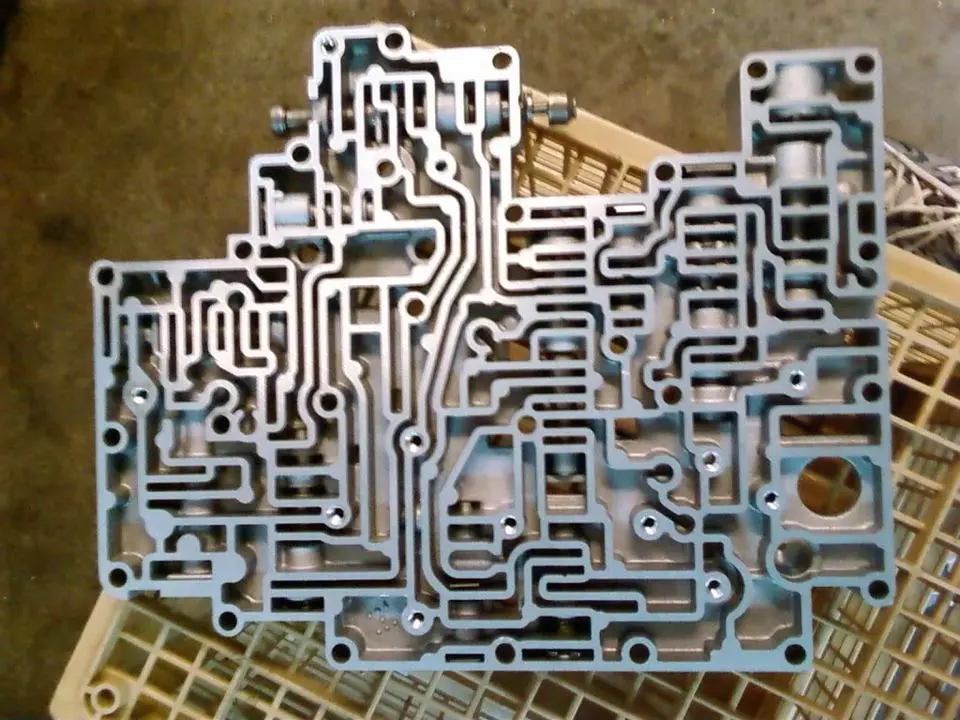

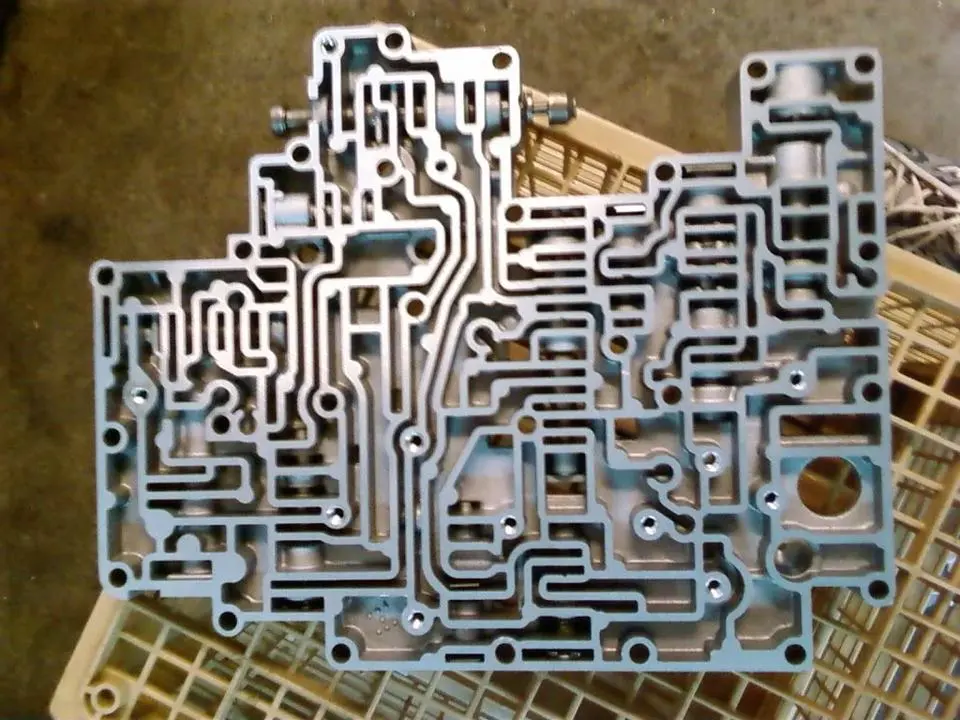

    Here's what the valve body looks like after it has been stripped and cleaned:
    [​IMG]

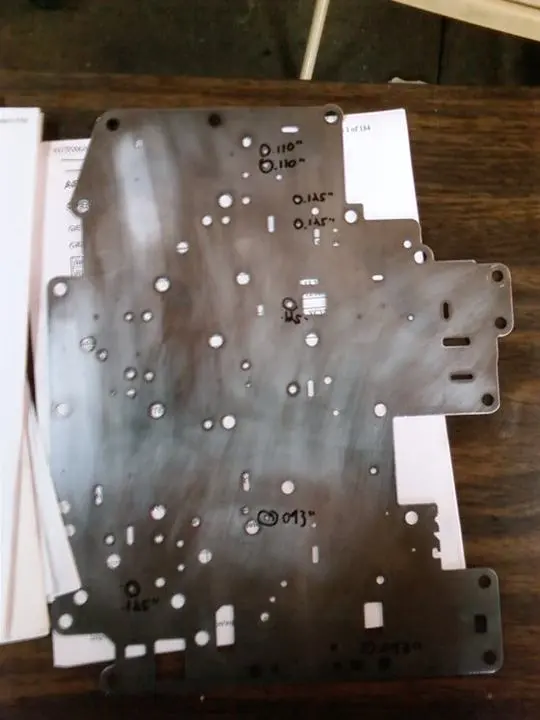

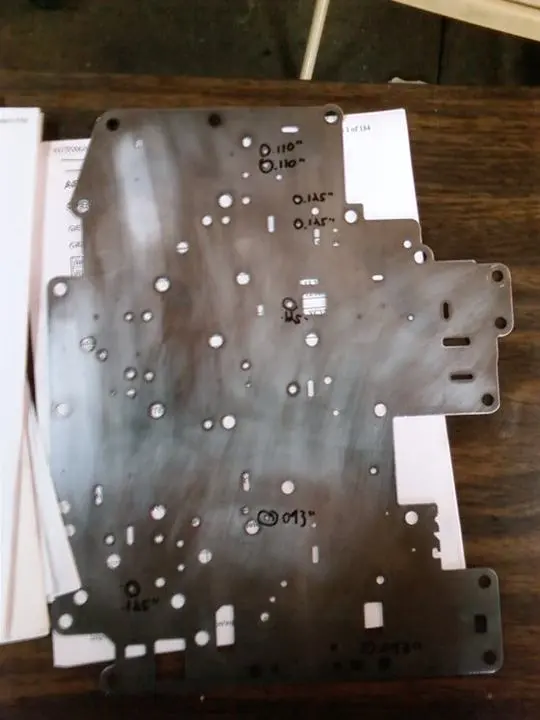

    And here's a picture of my separator plate with super-secret modifications marked on it:
    [​IMG]

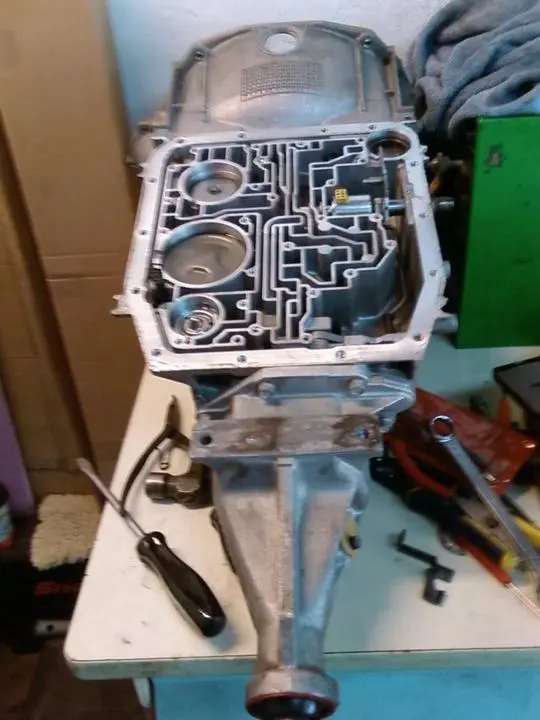

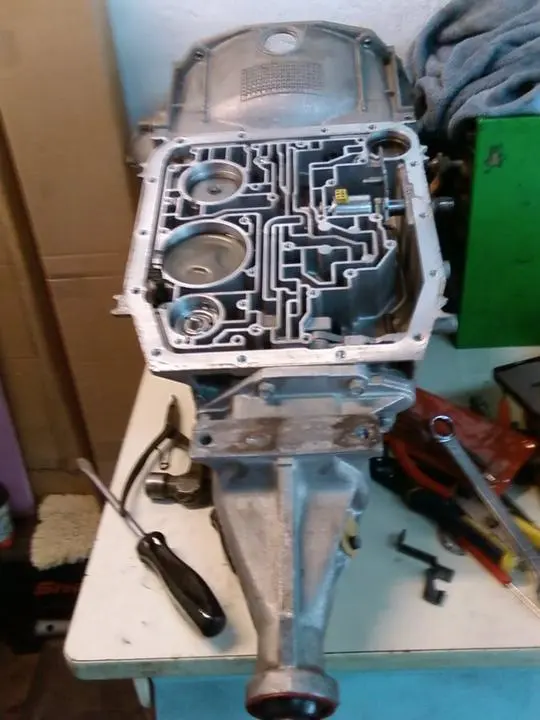

    Once the valve body is finished, it is installed here:
    [​IMG]

    I wasn't able to get pictures, but I did end up replacing the old pump with a Level 10 unit. After removing and disassembling the original pump, I checked the clearances and decided that it was worth it to start with a fresh unit. The old pump was technically within spec, but just barely, and I didn't want to have to worry about it later.

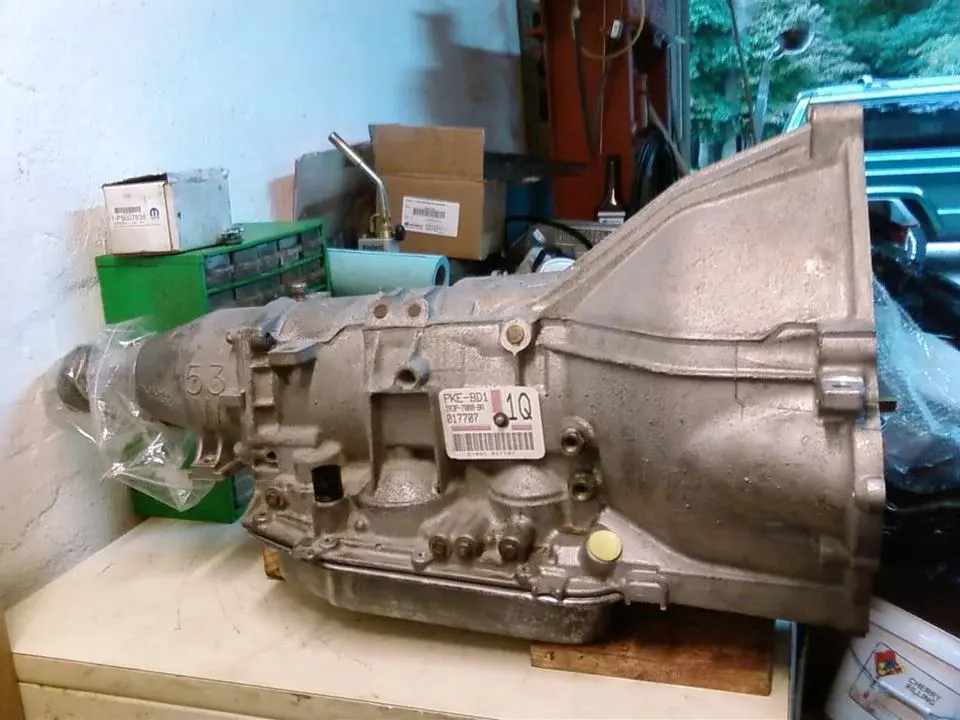

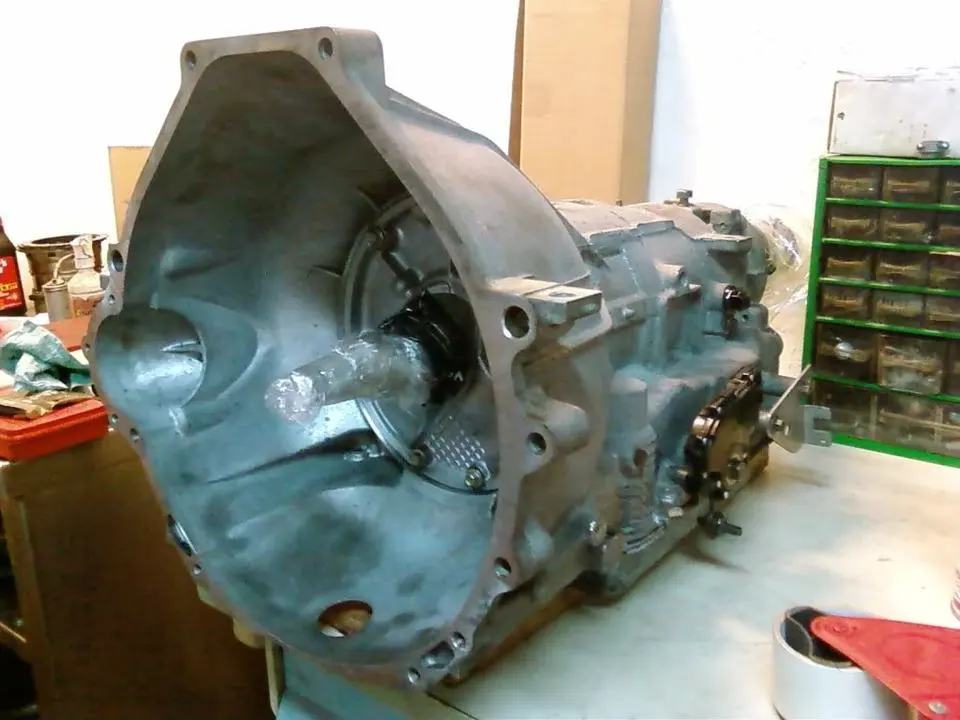

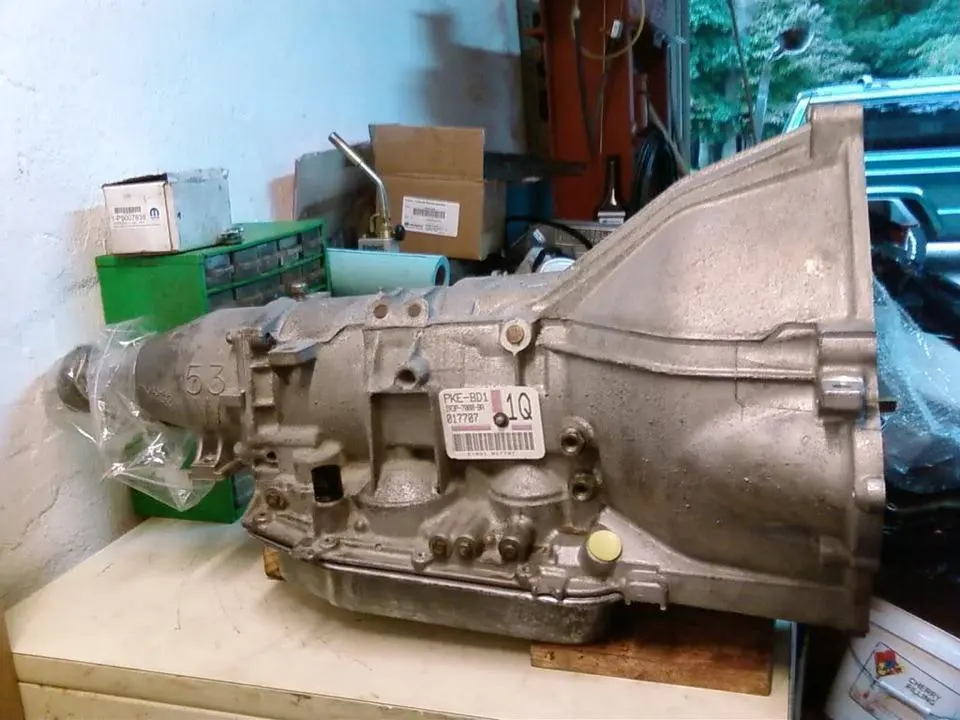

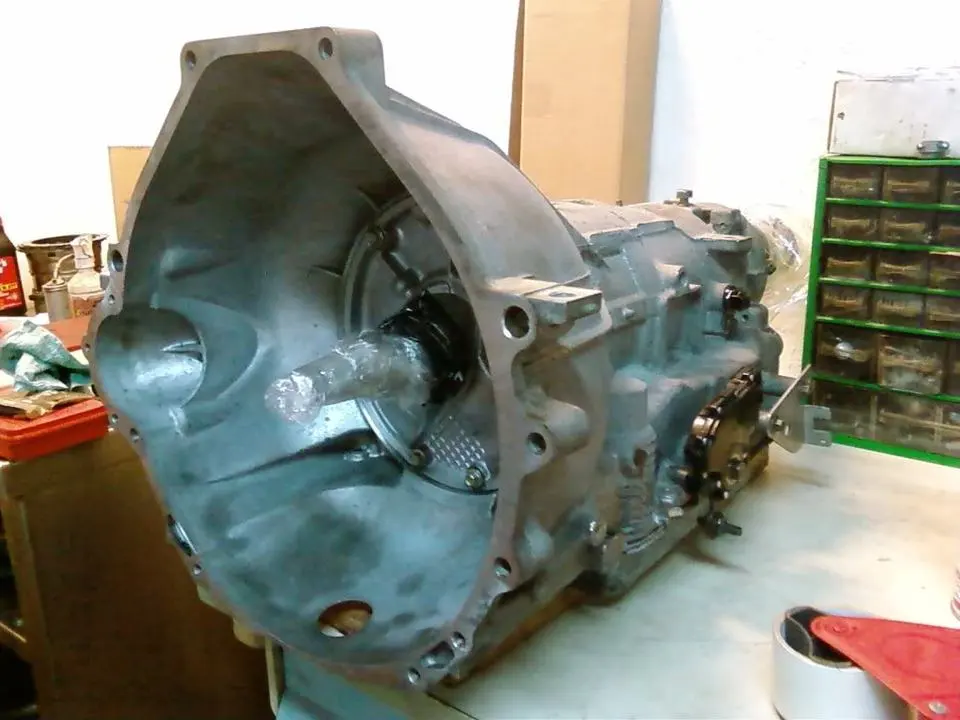

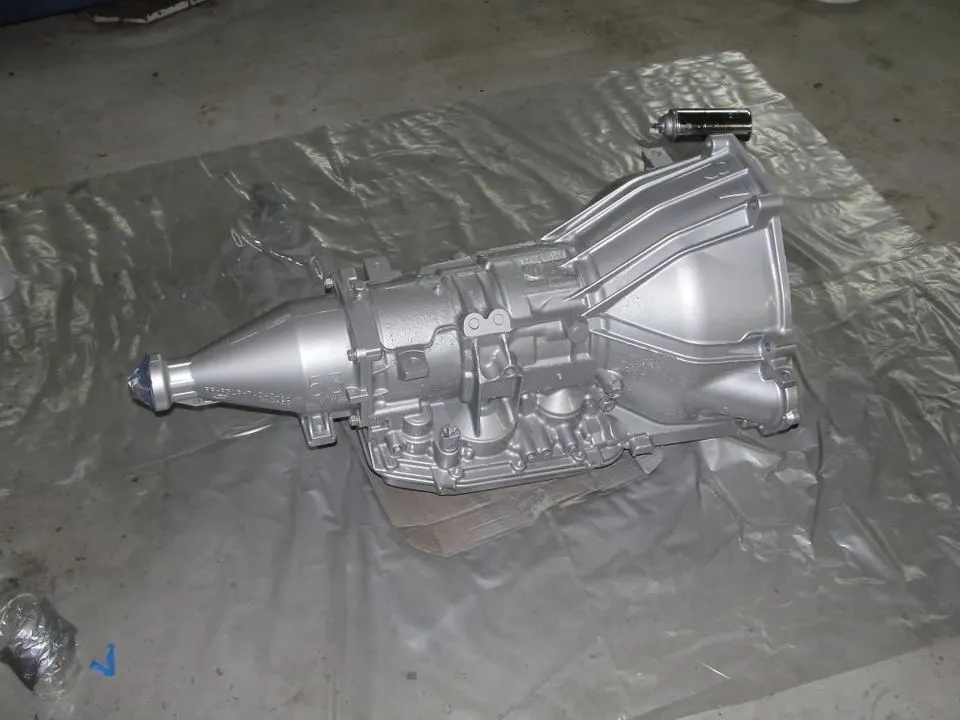

    Here's what the finished trans looks like:
    [​IMG]
    [​IMG]

    I had to use my cell phone to capture some of those photos, so I apologize for the poor quality. Also, I know that many steps in the trans build were undocumented, but I just wasn't thinking about taking pictures at the time. If you have any questions about the build, feel free to ask and I will explain to the best of my abilities.

    Next steps are to paint the engine and trans and install them in the vehicle.

    #49
  10. TeufelGt

    TeufelGt Member

    Joined:
    Aug 27, 2009
    Messages:
    165
    Likes Received:
    4
    Trophy Points:
    19
    Location:
    San Antonio, Tx
    Bump! Updates :)

    #50
  11. Flghtmstr1

    Flghtmstr1 Member

    Joined:
    Apr 1, 2005
    Messages:
    556
    Likes Received:
    3
    Trophy Points:
    19
    Location:
    Newtown Square, PA
    Sorry, I've been so busy lately I forgot to update this thread. There hasn't been a ton of progress, but I'll share what I've done so far.

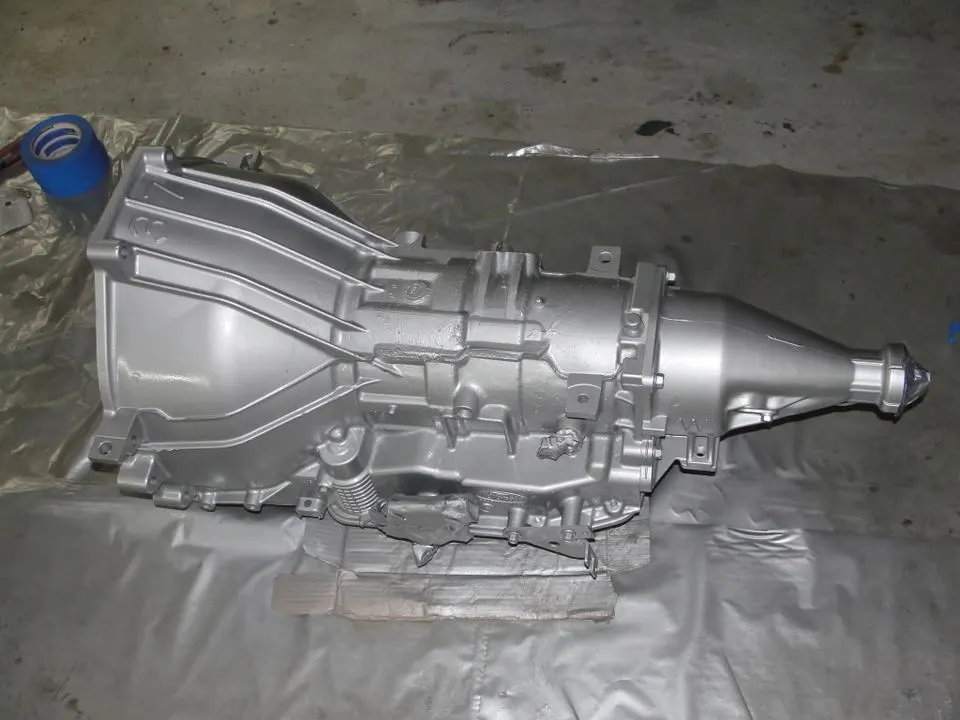

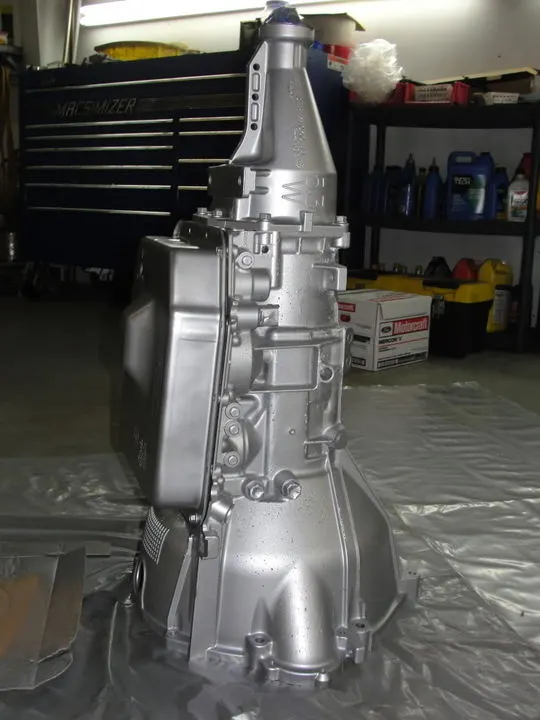

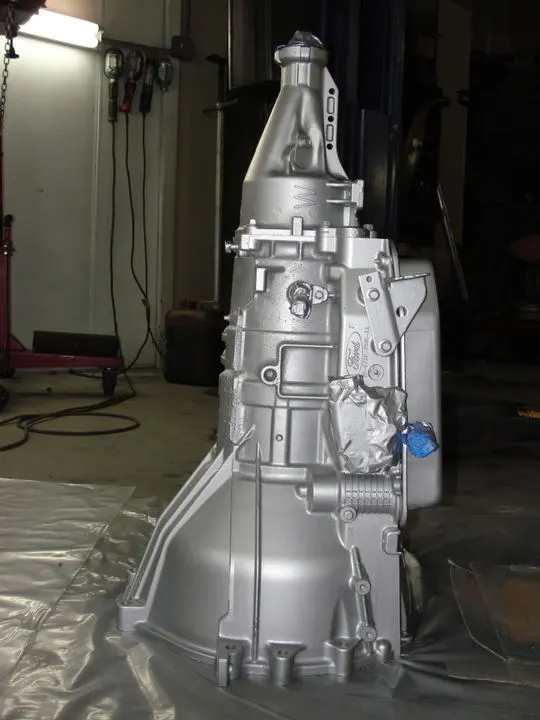

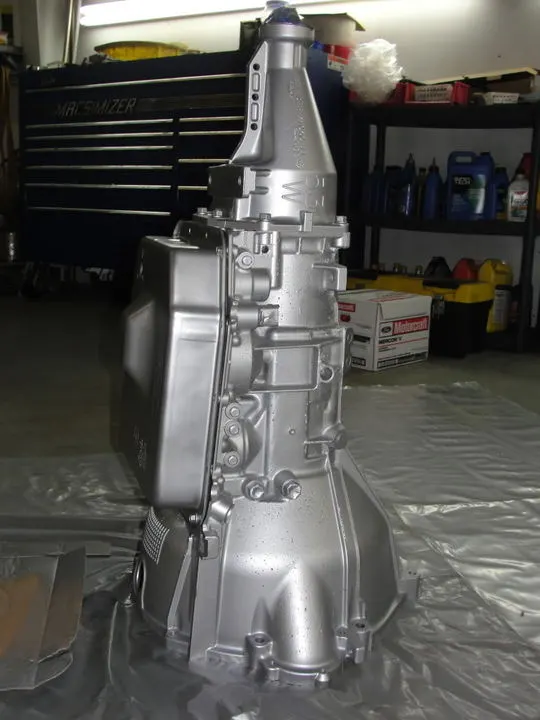

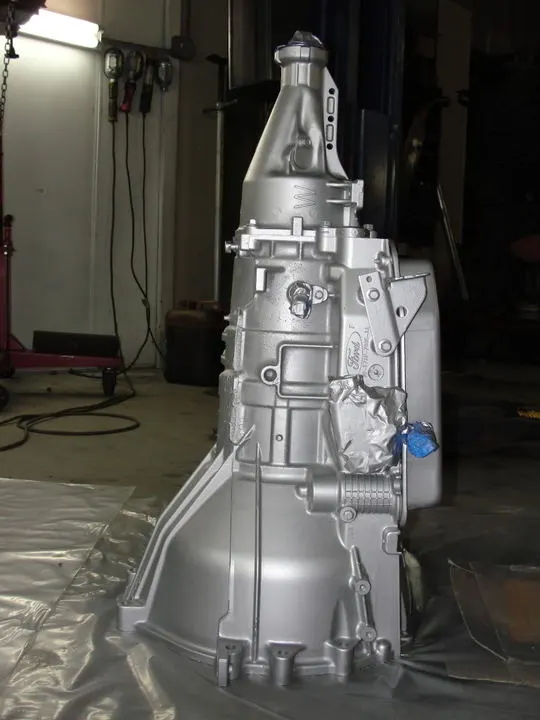

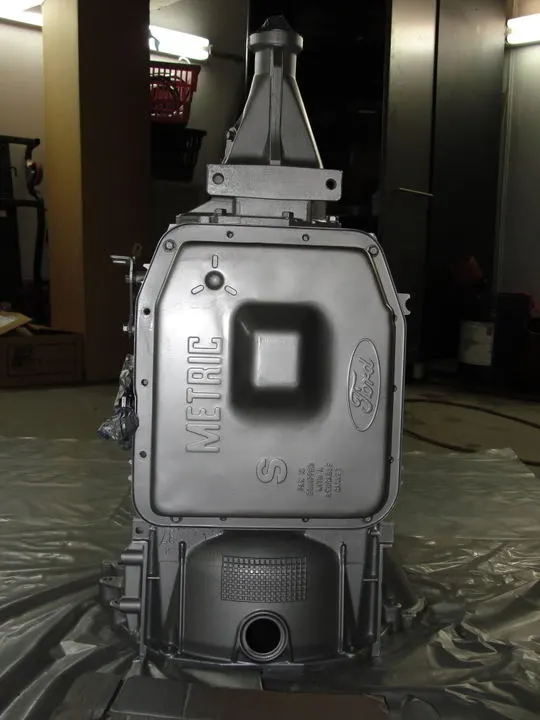

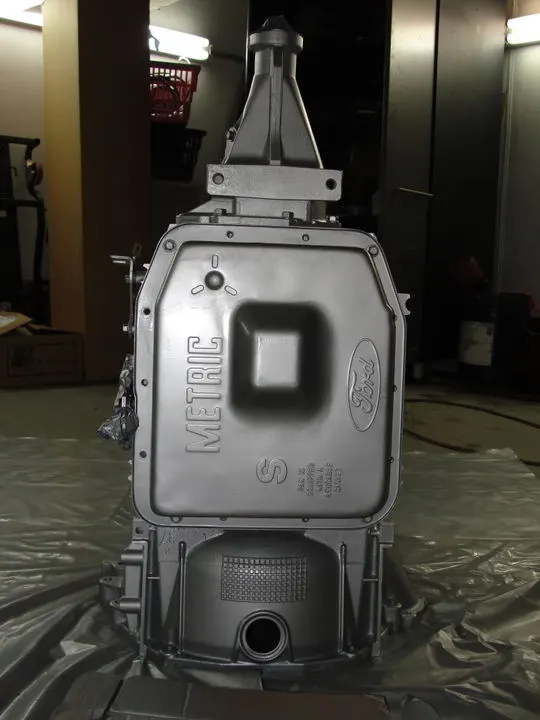

    I painted the transmission:

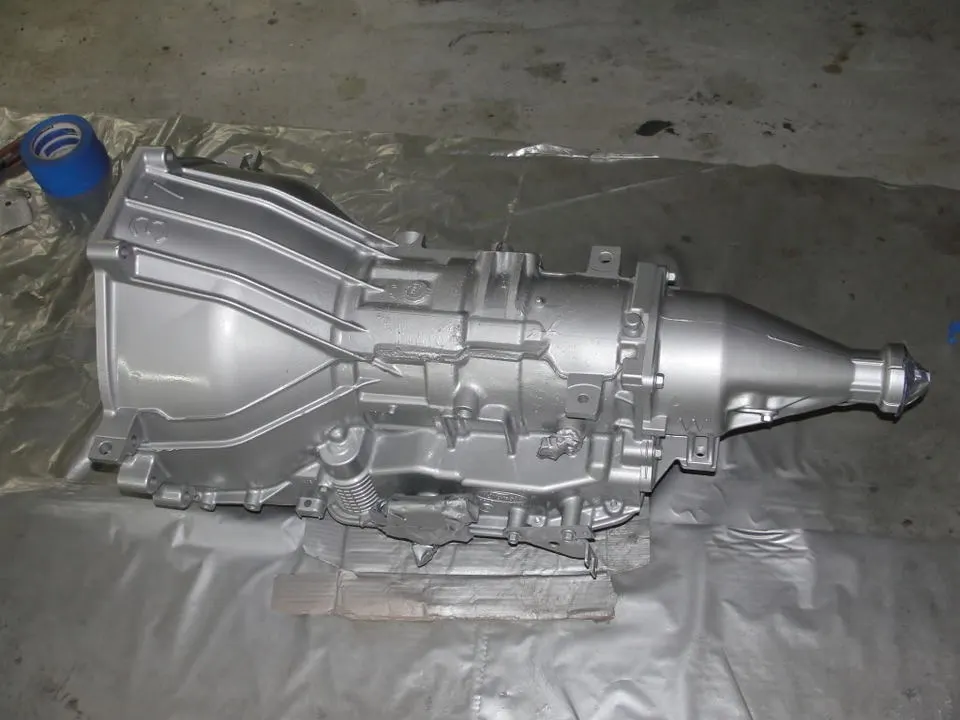

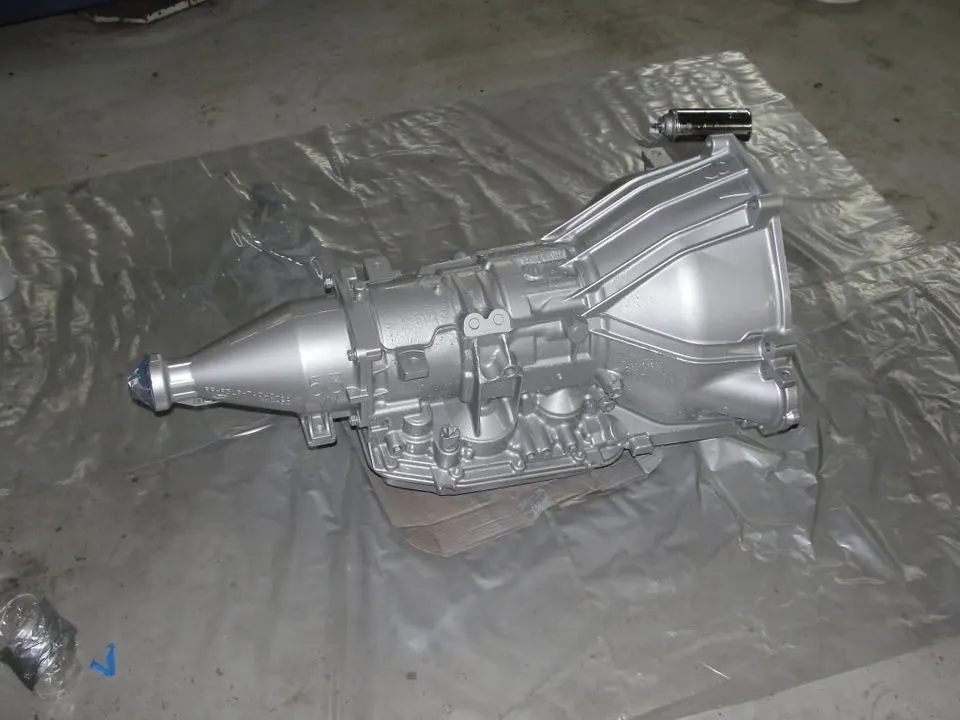

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

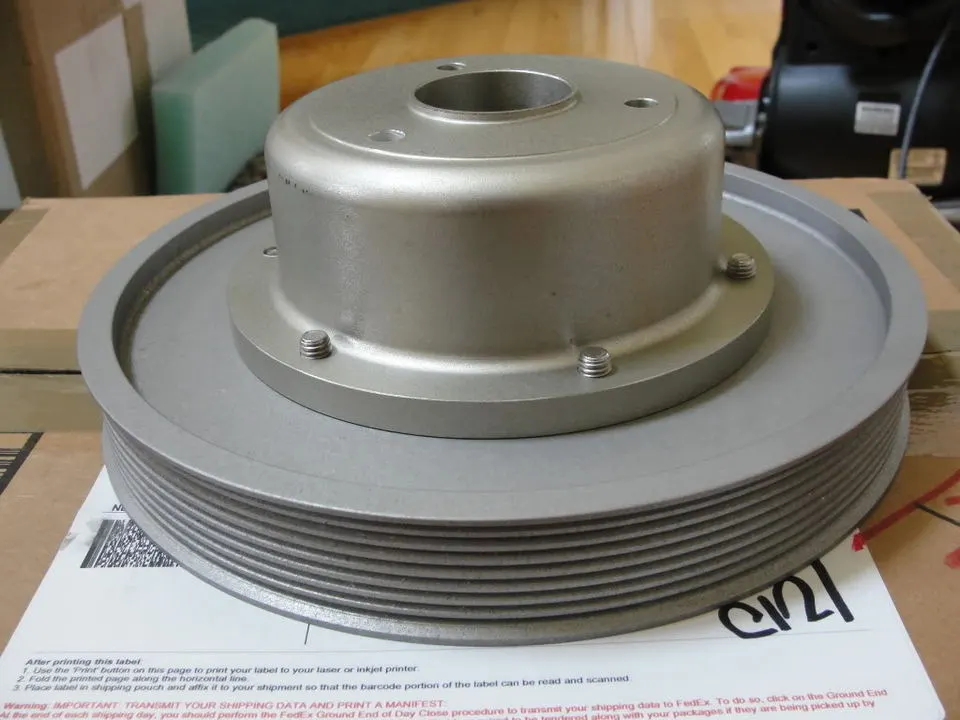

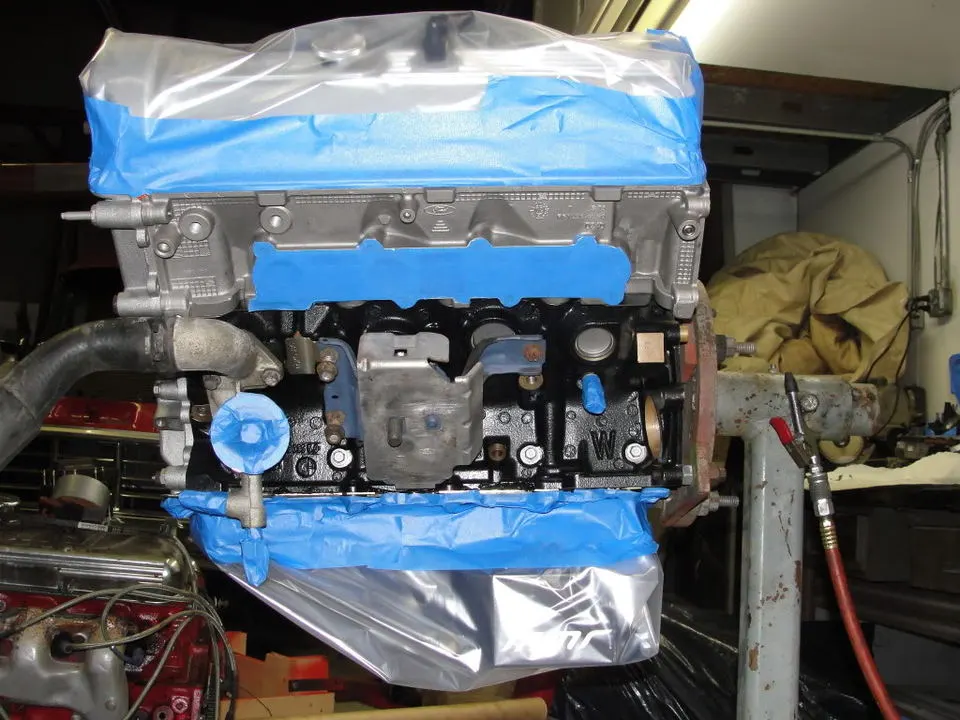

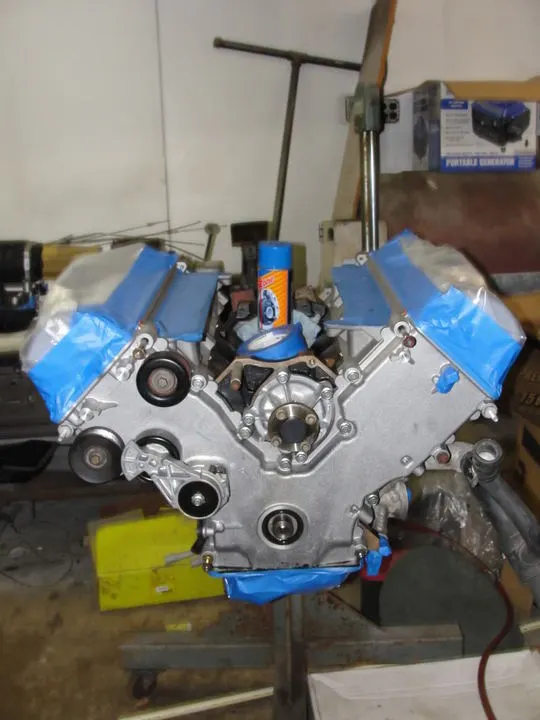

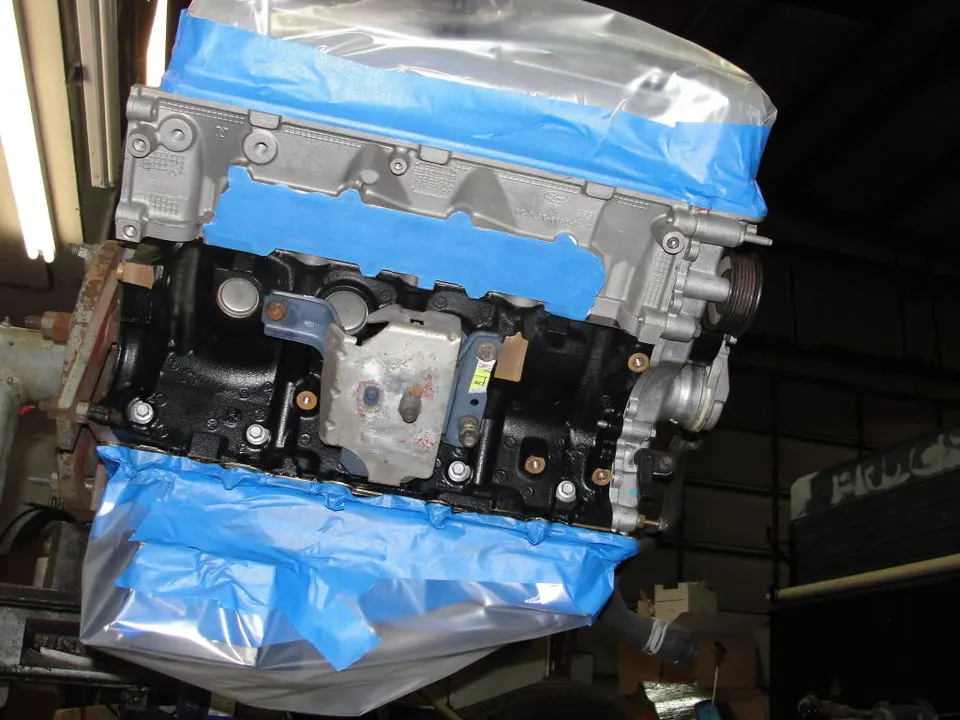

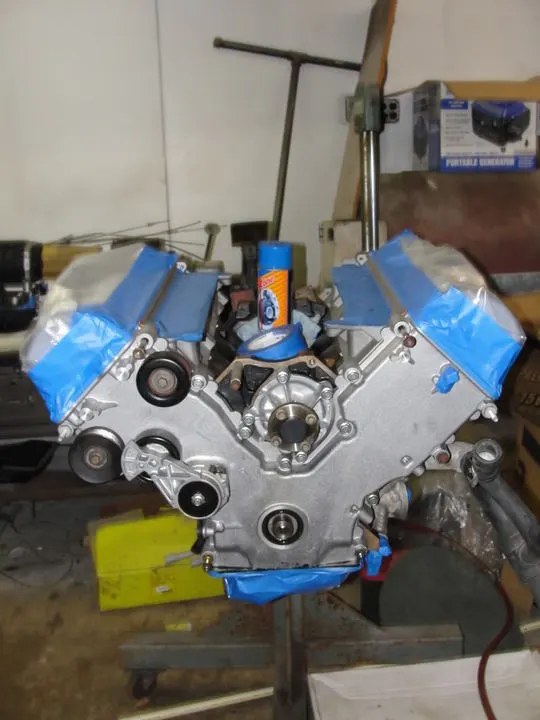

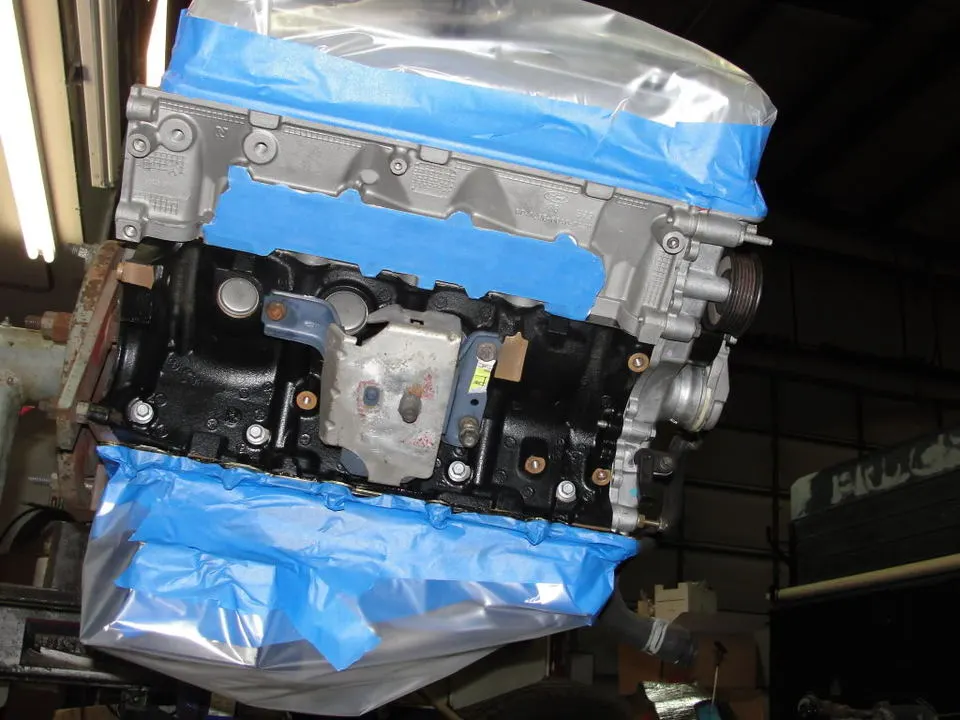

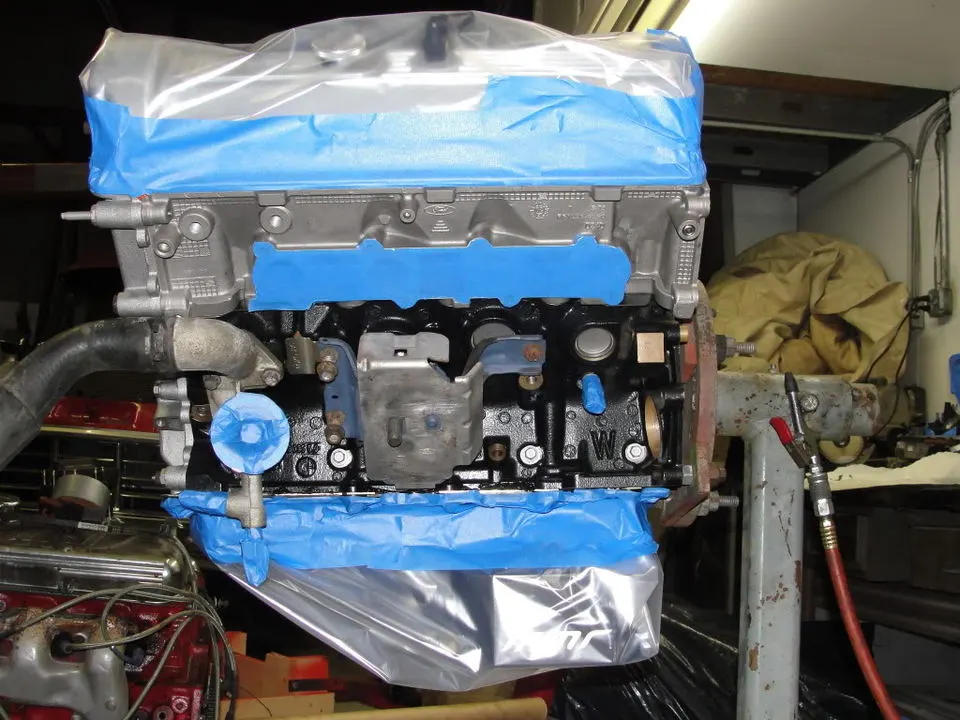

    I then taped off the engine and painted it (I also removed the pulleys before painting):
    [​IMG]
    [​IMG]
    [​IMG]

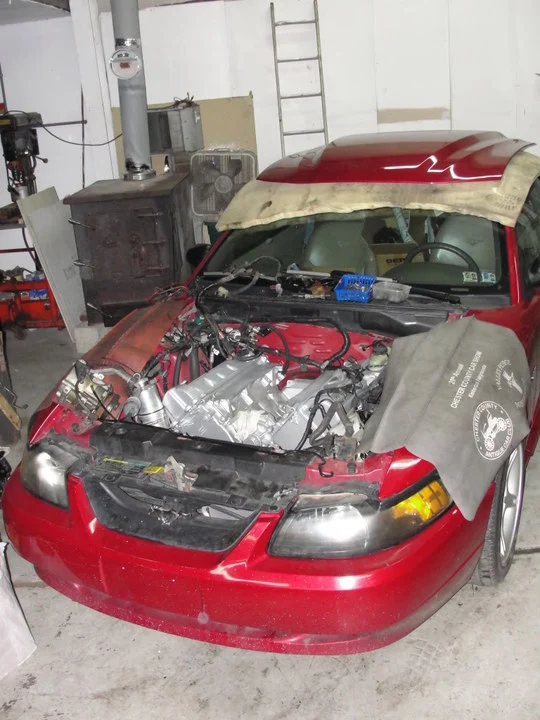

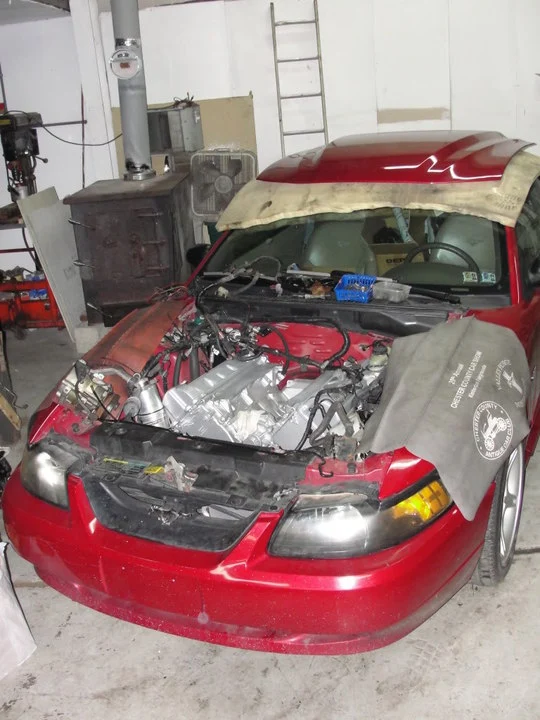

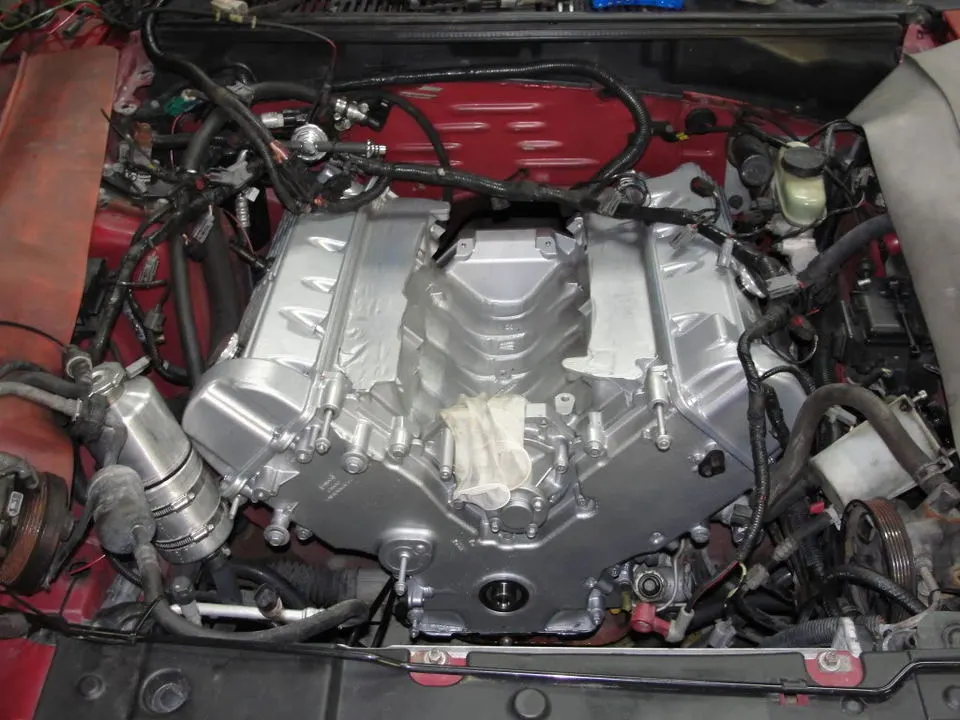

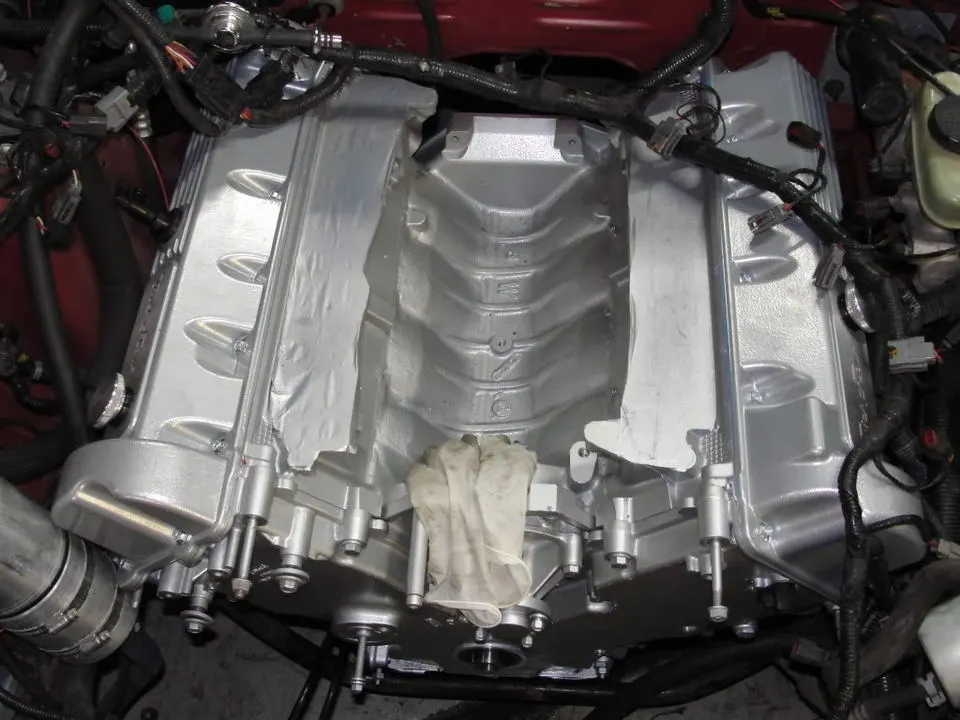

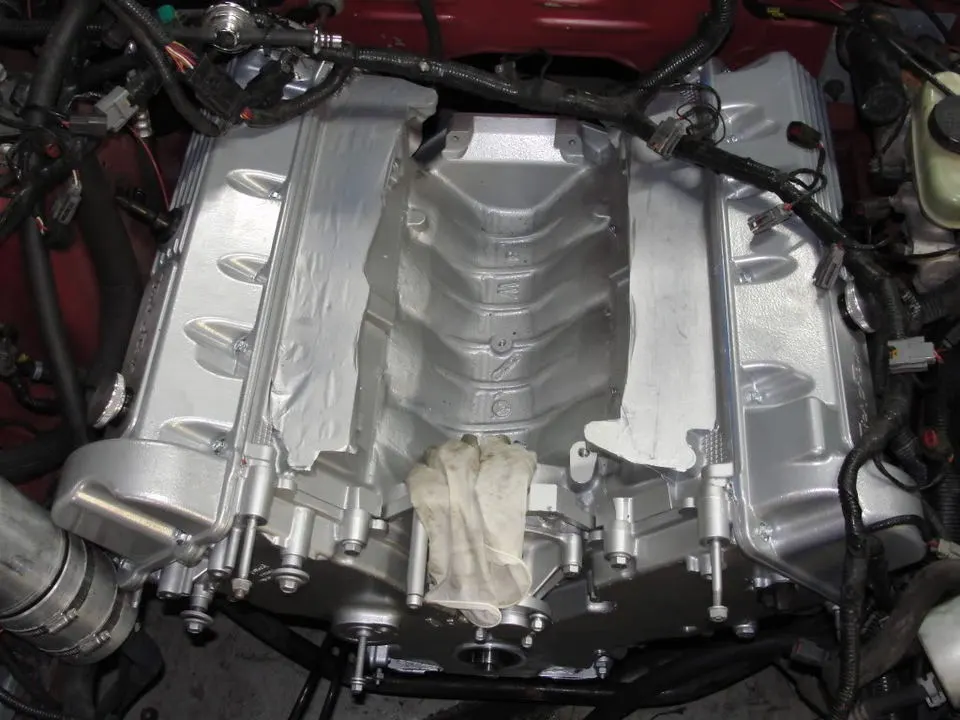

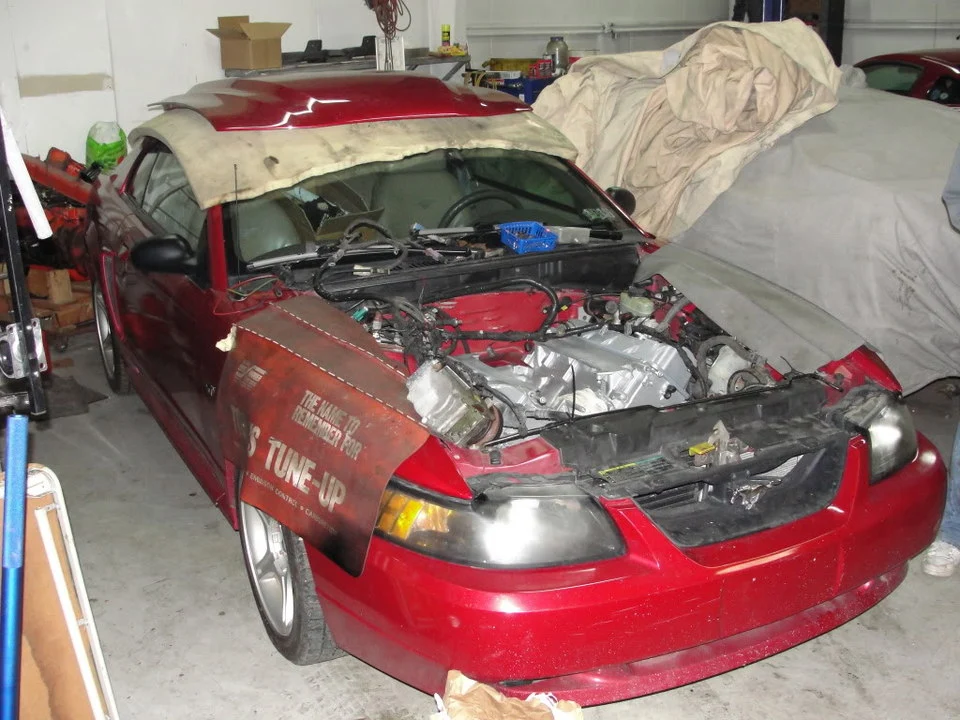

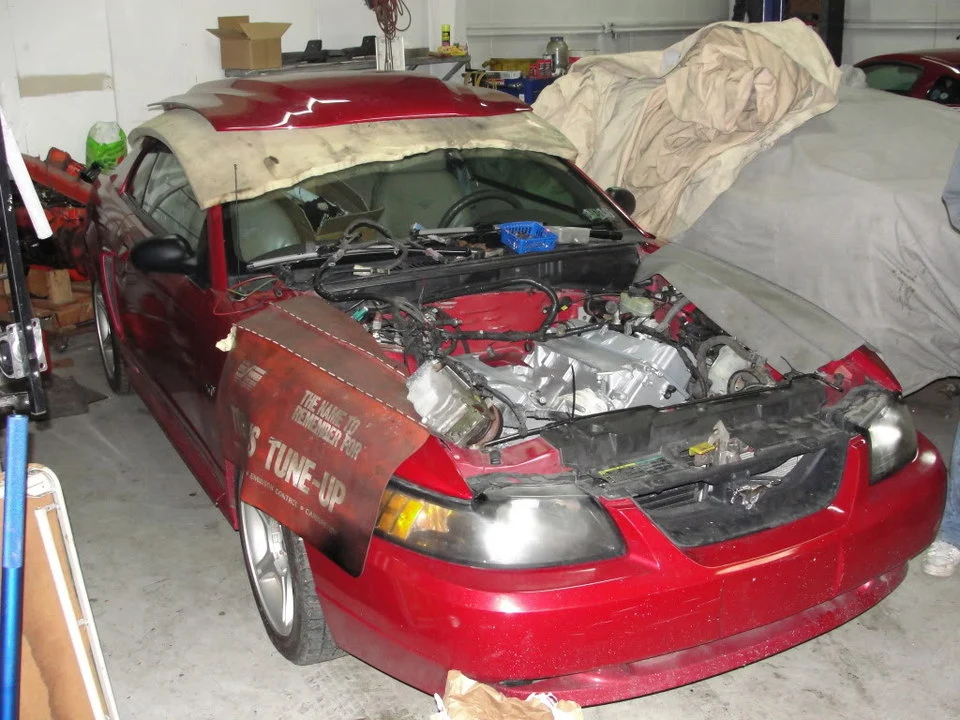

    Unfortunately, I didn't get any pictures of the painted engine on the stand. However, I got a picture of the painted engine in its new home:
