    Ah, sorry just saw this.

    Gonna need a calculator...let me get back to you

    #61
  2. Speeds8erM-1

    Speeds8erM-1 Founding Member

    Joined:
    Sep 6, 2000
    Messages:
    1,282
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Pensacola Florida
    Also curious

    #62
  3. MaRu_GT

    MaRu_GT Member

    Joined:
    Sep 12, 2006
    Messages:
    66
    Showcase:
    1
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    7
    So guys, I came up with this list to upgrade the breaks on my 1990 Mustang. Please can you help if there is something wrong or I am missing something….

    -95 GT parts from junk yard:
    •Spindles and hubs.
    •Axel shafts
    •Rear Brake lines
    •Complete rear brake (rotors , calipers and other hardware)



    -My 1990 stock e-brake.


    -Front COBRA STYLE 13" DISC 94/04 MUSTANG (Mustangs Unlimited - The Premier Source for Mustang, Shelby and Cougar Parts and Accessories )


    -BRAKE MASTER CYLINDER for 93 Cobra (Mustangs Unlimited - The Premier Source for Mustang, Shelby and Cougar Parts and Accessories )


    -Brake booster for 93 Cobra (Mustangs Unlimited - The Premier Source for Mustang, Shelby and Cougar Parts and Accessories )


    -BRAKE ADJUSTABLE PROPORTIONING VALVE (Mustangs Unlimited - The Premier Source for Mustang, Shelby and Cougar Parts and Accessories )


    -BRAKE PROPORTIONING VALVE ELIMINATOR KIT 87/93 (Mustangs Unlimited - The Premier Source for Mustang, Shelby and Cougar Parts and Accessories )

    #63
  4. 90lxcoupe

    90lxcoupe Mustang Master

    Joined:
    Oct 8, 2003
    Messages:
    3,450
    Likes Received:
    179
    Trophy Points:
    84
    Good luck dealing with mustangs unlimited...

    #64
  5. brutus143

    brutus143 New Member

    Joined:
    Nov 16, 2011
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    1
    I was quoted less that $50 each for reman Cobra Calipers (wholesale) today from a Ford dealer, is that possible?

    I need to start my upgrade package. Not quite clear on the other stuff yet, Im still learning.

    #65
  6. PipeHitter

    PipeHitter New Member

    Joined:
    Mar 11, 2002
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    2
    ^^^^ what year? Core required? ^^^^

    #66
  7. ID89GT

    ID89GT Active Member

    Joined:
    May 26, 2008
    Messages:
    1,688
    Likes Received:
    14
    Trophy Points:
    39
    Location:
    Post Falls, ID
    Any info on Svo rear discs? I got practically everything but it seems no one uses it.. so hard to find info. Just wondering if they are any good or no or should I sell and get something else?

    #67
  8. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt" SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,701
    Likes Received:
    320
    Trophy Points:
    124
    Location:
    Massachusetts
    What's your front setup?

    They are heavy and parts tend to be a bit more costly than sn95 stuff.

    There is a way to modify them to rub stock fox length 5-lug axles.

    http://home.pacbell.net/black306/tech/reardisc.html

    Seems the site is down now. Perhaps an Internet back history search on the page might work


    Sent from my iPhone 4S using Tapatalk

    #68
  9. ID89GT

    ID89GT Active Member

    Joined:
    May 26, 2008
    Messages:
    1,688
    Likes Received:
    14
    Trophy Points:
    39
    Location:
    Post Falls, ID
    Ill be running 04 Cobras up front. I have everything needed for the rear I think, will need to buy pads but that's it. Got the brackets, calipers, lines, e brake cable, rotors, and a Svo master as well. Also have the 5 lug axle shafts as well as the whole svo rear end if I wanted it. I plan on just swapping everything to a stock fox 8.8 that has 3.73 in it.

    #69
  10. OldbutNew

    OldbutNew Member

    Joined:
    Jun 22, 2012
    Messages:
    5
    Likes Received:
    1
    Trophy Points:
    13
    I converted my '88 LX as follows:
    A '95 Cobra donated front rotors, calipers, hub & spindles, rear axle complete.
    Also purchased: New 1" bore M/C (93 Cobra), Wilwood prop valve, set of steel '95 Cobra flex lines for the rear calipers, set of '87-93 steel flex lines, MM "prop valve eliminator kit" MMBAK-6, the 3-2 port conversion MMBAK-3, and a pair on new brake hardlines for the rear axle.

    I made the .330 tall spacers for the front hubs to Fox ball joints. Bolted up the new stuff, and used the Fox flex lines. They attached to the Cobra calibers with the bolts that came with the calipers with no issues at all. I'm considering some type of tie-back on the driver's side, as they will lightly rub the tire on a hard left turn, but they're Russel, so they're pretty tough.

    I used the stock '88 booster. The '93 Cobra M/C bolted right up. No slotting any holes, no blacksmithing the shock tower. (The '93 Cobra M/C seemed the best compromise for my application. One thing to consider in the brake discussion is overall vehicle weight. Foxes are a few hundred lighter than SN's on average. Besides someone beat me to the one in the donor car.) I pulled the factory prop valve off, connected the 3-2 conversion kit directly to the lines that formerly connected to the bottom of it, and moved on to the rear.

    I took the stock '95 axle hard lines, cut the flare off at the "tee" end as short as I could, slipped on a compatible fitting for the Fox body tee, and re-flared them. I used new '95 stainless flex lines on the wheel ends and bolted them up to the Cobra calipers. One of the brake tubing companies makes the hard lines already done. Classic Tube maybe? I found this out AFTER I borrowed, broke, and replaced a friend's double flare set.

    Being both lazy AND cheap, I was not about to fork over $2600 for the K kit, nor was I going to spend a month of weekends pulling crap off in junkyards. I bought the totaled donor, stripped what I wanted in the comfort of my own driveway (WITH air power), and parted out the rest. I actually made money on the car! Yes, I got lucky that it WAS a Cobra, but you could do the same with ANY '94-'99 Mustang. There are no adapters, cut/welded/machined/modified/redneck engineered parts in the system. I am still experimenting with front/rear proportioning, and will consider pad and rotor upgrades as things wear out. As of now when I stomp the pedal the car stops N-O-W.

    Pictures or further details on request.

    #70
  11. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,377
    Showcase:
    59
    Albums:
    8
    Likes Received:
    2,601
    Trophy Points:
    174
    Location:
    Box behind Walmart
    That's the portion I always wondered about. I hear mixed reviews with the OEM booster and I LOATH the thought of having to beat on towers etc. So brakes work well for you? No spongy feel or hard pedal?

    ...and by all means... post the pics!

    #71
  12. OldbutNew

    OldbutNew Member

    Joined:
    Jun 22, 2012
    Messages:
    5
    Likes Received:
    1
    Trophy Points:
    13
    Modulation is as good as stock. But bringing the car down from double digits is a real hoot! Pedal travel is acceptable from light to max pressure. I think the fact that there are no rubber lines anythere in the system firms up the pedal considerably. I just realized I don't really have any pix of the front brakes. I'll get some in the next day or 2. In fact, this shot of the rear was back over the winter. LOTS of parts have been added since. View attachment 72252

    #72
  13. OldbutNew

    OldbutNew Member

    Joined:
    Jun 22, 2012
    Messages:
    5
    Likes Received:
    1
    Trophy Points:
    13
    Took me a while to get around to the pix...

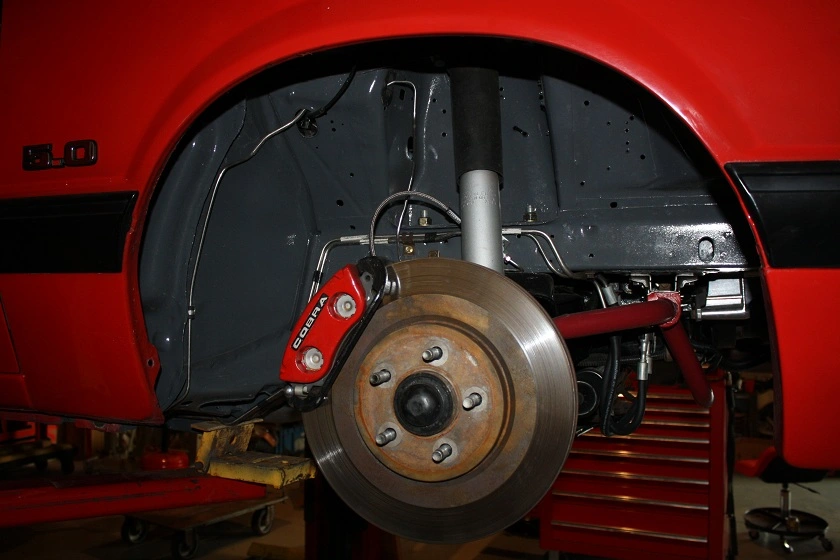

    Here's the RF corner. Fox flex lines with bolts that came with the calipers. RF Corner.JPG

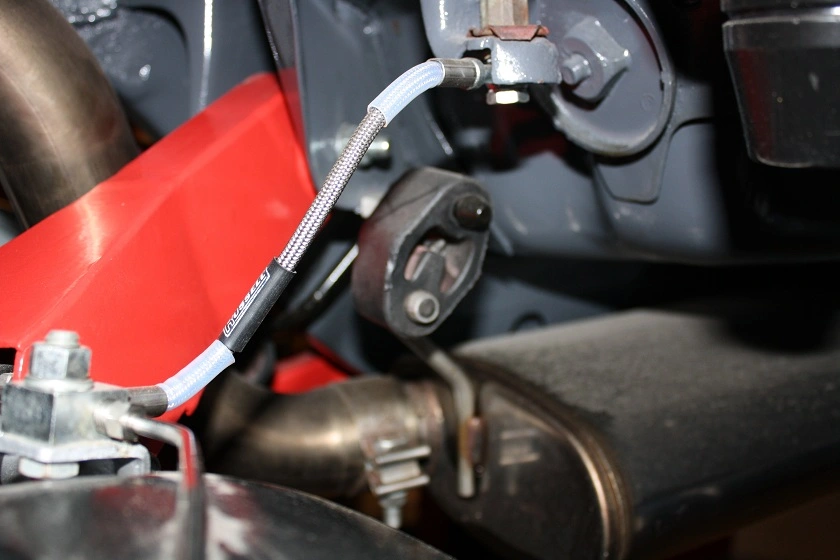

    This is the body-to-axle flex. Fox part. Rear brake line.JPG

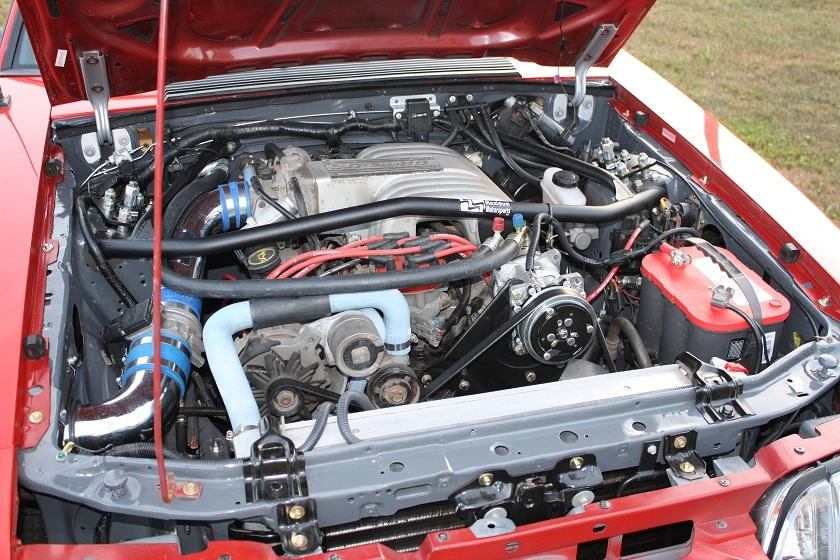

    Underhood shows manual prop valve in typical spot. July 2012 engine bay.jpg

    #73
    Noobz347 likes this.
  14. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,377
    Showcase:
    59
    Albums:
    8
    Likes Received:
    2,601
    Trophy Points:
    174
    Location:
    Box behind Walmart
    OldbutNew

    Just saw your update to this thread. Very nice. :nice:

    Thought about doing your own build thread with all the step by step and pics?

    #74
  15. white87

    white87 New Member

    Joined:
    Feb 1, 2012
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    2
    Can 07 wheels be used with 94,95 spindles.

    #75
  16. 88LX5.Oh

    88LX5.Oh Advanced Member

    Joined:
    Dec 31, 2011
    Messages:
    1,455
    Likes Received:
    210
    Trophy Points:
    74
    Location:
    Arkansas
    #76
  17. rustyruststang5

    rustyruststang5 Member

    Joined:
    May 10, 2011
    Messages:
    150
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Ne
    im using 91 v8 fox brakes on my 86 4 cyl. what hydro boost and mc should i run?

    #77
  18. 90silverstang

    90silverstang Member

    Joined:
    Nov 6, 2003
    Messages:
    142
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Palm City, Fl.
    I've been reading and I'm confused. I want to install the sn95 front spindles and rear axles 5lug disk all around
    Which wheels will work with this set up on a 1990 vert.?
    Does this wheel work on all 4 corners: 17X9 backspace: 6" Offset: 25mm deep dish
    245/45/17 front 265/45/17 or 245/45/17 rear

    see link:
    http://www.americanmuscle.com/chrome-deepdish-cobra-17x9.html

    Thanks

    #78
  19. OldbutNew

    OldbutNew Member

    Joined:
    Jun 22, 2012
    Messages:
    5
    Likes Received:
    1
    Trophy Points:
    13
    The old K kit called for 17's with a 5.75 backspacing. The 6" would probably be good if you use SN-length rear axles. I would bet you'll need to roll the lips to clear those tires. If you are lowered, even more so. If you use a Fox-length axle, the 6" offset with those tires will probably rub on the inside. I used SN length axles with the 17x8's and 245/45's. No rubbing anywhere.
    In the fronts, it could be a bit close to the strut, but you would have to put them on and check ALL the clearances to be sure. I put a pair of steering rack limiters on mine, and my wheels are 17x8 with 5.75 backspacing. I'm running Eibach Sportlines, so the car is pretty low. Those wheels a er sharp! I hope you make them work.

    #79
  20. Illuminator

    Illuminator Active Member

    Joined:
    Nov 30, 1999
    Messages:
    220
    Showcase:
    8
    Albums:
    2
    Likes Received:
    10
    Trophy Points:
    29
    Location:
    So. Cal
    Can anyone identify which setup is on mine as I have no idea. Wheels are 17 x 9 with 245/45 tires. Sorry about lousy pic, it's been raining all day. If a better one is needed I'll try again in the am. There is a 1/4 spacer on rotor, haven't measured the wheel offset yet. Even with the spacer wheel rubs control arms on hard turns slightly. Trying to figure what I'm working with prior to replacing anything or new brakes, wheels etc.
    [​IMG]
